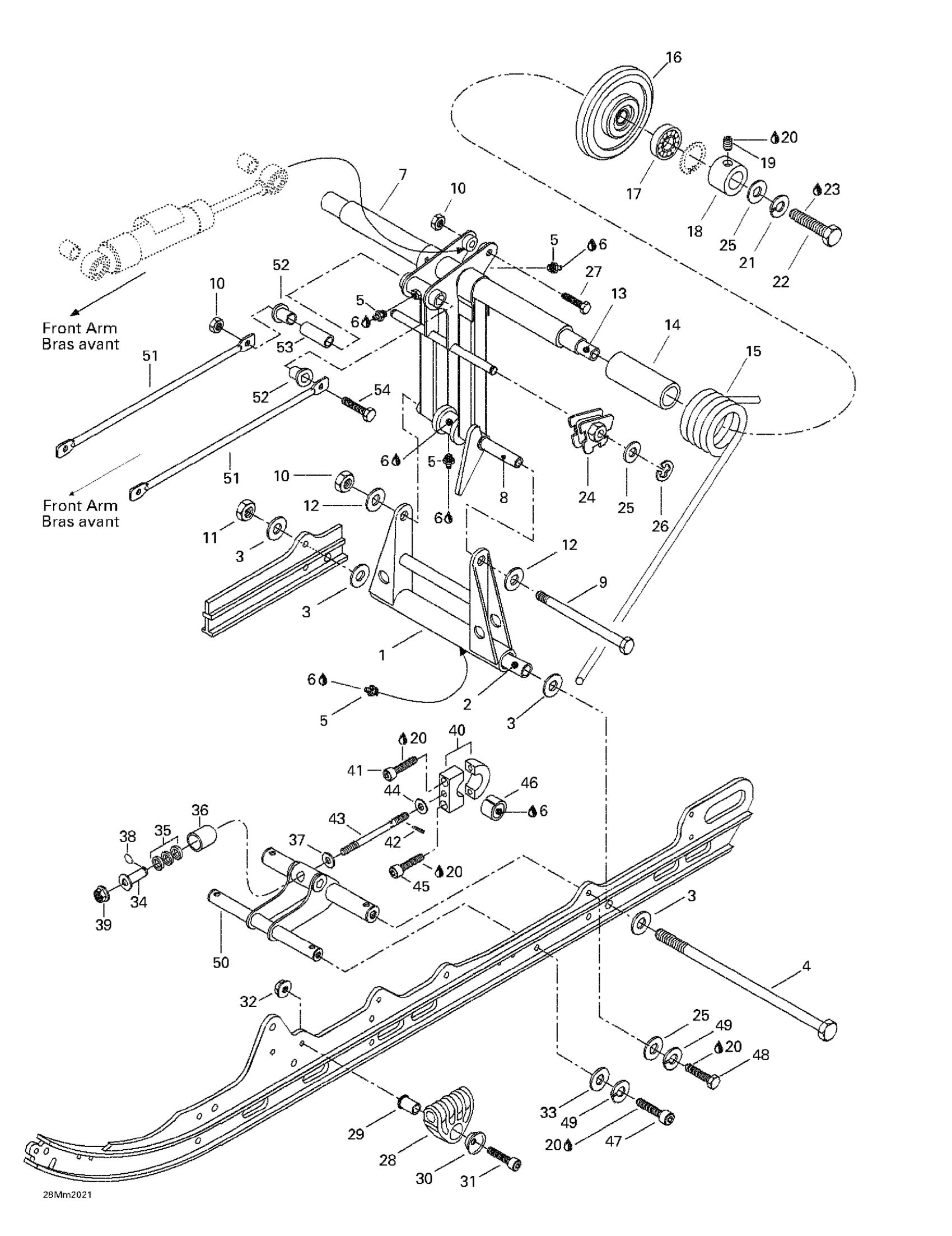

Ski-Doo Grand Touring 600, 2000 Rear Arm Diagram
#
2
Lower Axle Pivot
503154703
Unavailable
3
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
4
Bolt M8 X 248mm
503192440
Unavailable
5
Grease Fitting
408200700
Unavailable
6
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
7
Rear Arm
503188974
Unavailable
8
Upper Axle, Pivot Arm
503144300
Unavailable
9
Bolt M8, Short
732601197
Unavailable
10
Hex. Elastic Stop Nut M8
232581414
Unavailable
11
Hex. Flange Elastic Nut M8
233281414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Rear Cross Shaft
503168700
Unavailable
15
RH Spring
503189338
Unavailable
RH Spring (Europe)
503189327
Unavailable
LH SPRING - Call your local BRP dealership
503189339
Unavailable
LH Spring (Europe)
503189329
Unavailable
16
Idler Wheel | Includes 17 - 18.
572091400
Unavailable
17
Ball Bearing
293350115
Unavailable
20
Loctite 271, 10 ml
293800005
Unavailable
21
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
22
Hex. Screw M10 X 35
207103544
Unavailable
24
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
25
Flat Washer 10 mm
234001410
Unavailable
26
e Circlip
371907100
Unavailable
27
Hex. Screw M8 X 50
207085044
Unavailable
28
Spring Support
503189657
Unavailable
29
Spring Guide Axle
503188934
Unavailable
30
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
31
Socket Head Screw M8 X 45
205084544
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
Hardened Washer 10 mm
503176700
Unavailable
34
Bushing
503172900
Unavailable
35
RUBBER STOPPER - Call your local BRP dealership
570049600
Unavailable
36
Cup
503103600
Unavailable
37
WASHER - Call your local BRP dealership
503183400
Unavailable
38
Circlip
371910700
Unavailable
40
Pivot Block Ass'y | Includes 45 - 49.
503189044
Unavailable
41
Socket Head Screw M8 X 30
205083044
Unavailable
42
Rolled Pin M3 x 18
732804011
Unavailable
43
Not Available As Spare Part - Friction Washer
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Socket Head Screw M8 X 30
205083044
Unavailable
47
Socket Screw M10 X 35
205003544
Unavailable
48
Hex. Screw M10 X 30
207103044
Unavailable
49
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
50
Bracket
503188969
Unavailable
51
Tie Rod
503184900
Unavailable
52
Plastic Cushion
415052300
Unavailable
53
Tie Rod Shaft
503171600
Unavailable
