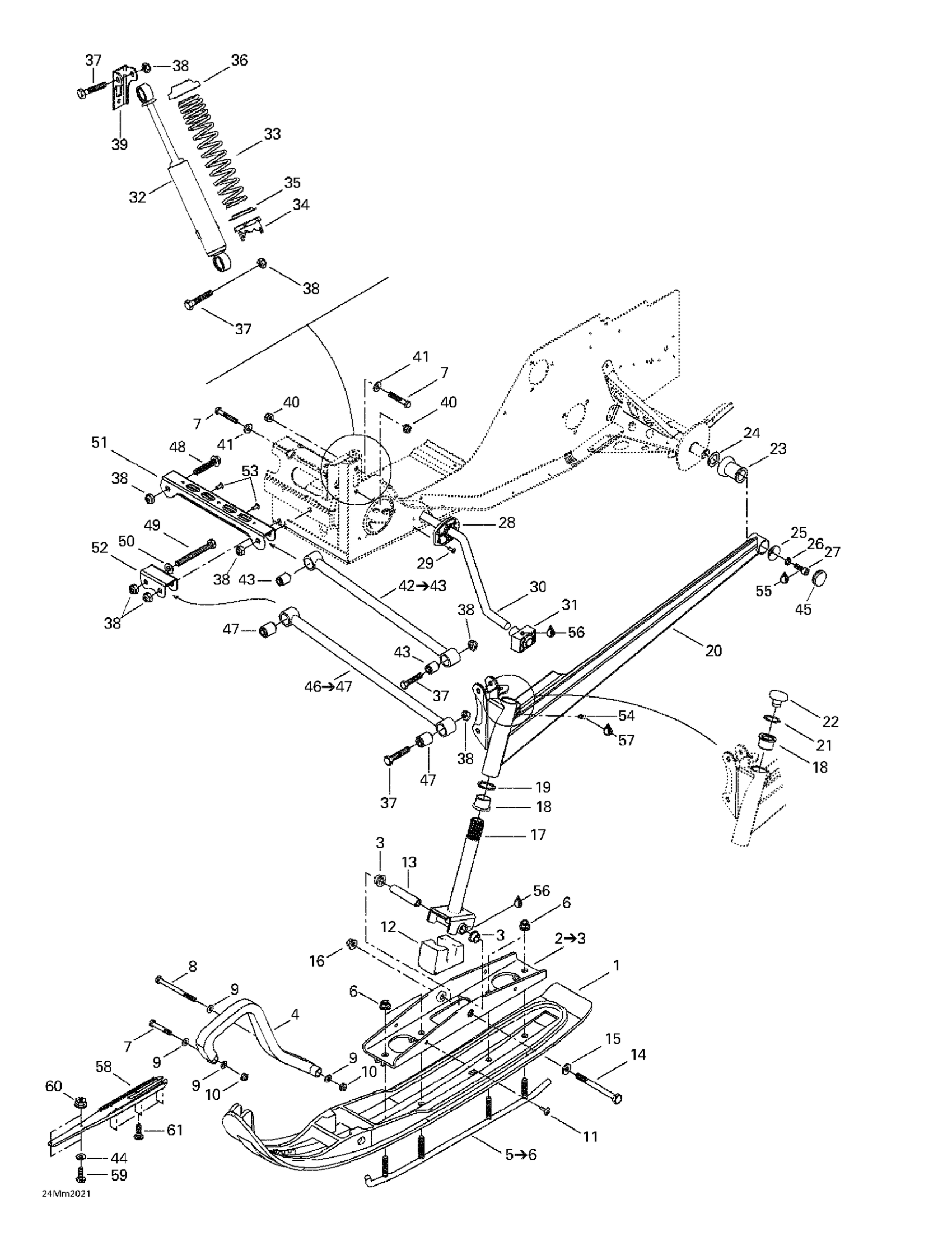

Ski-Doo Grand Touring 600, 2000 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

Unavailable

Ski-Liner Flex

505070189

Unavailable

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.68

7

Hex. Screw M8 X 50

207085044

Unavailable

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Elastic Stop Nut M8

232581414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

Unavailable

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

Unavailable

16

Flange Nut M10

732610084

Unavailable

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

Unavailable

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH Swing Arm

505070416

Unavailable

LH Swing Arm

505070417

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.97

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

$4.42

25

Cup | Package Hunter

705007171

Unavailable

26

Lock Washer 8 mm

234181401

Unavailable

27

Socket Head Screw M8 X 25

205082544

Unavailable

28

BUSHING - Call your local BRP dealership

505070139

Unavailable

29

Pop Rivet 3/16"

390402300

Unavailable

30

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

31

BALL JOINT BLOCK - Call your local BRP dealership

505070121

Unavailable

32

Front Shock Ass'y

505070236

Unavailable

33

Spring

505070392

Unavailable

34

Adjustment Cam

505073625

Unavailable

35

Spring Guide

503187500

Unavailable

36

Spring Stopper

706200881

$10.30

37

Hex. Screw M10 X 55

207005544

$1.85

38

Elastic Locking Nut M10 X 1.5

233601416

$1.68

39

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

40

Hex. Flange Elastic Nut M8

233281414

Unavailable

41

Washer

506151245

Unavailable

42

Upper Arm Ass'y | Includes 42 - 43.

505070397

Unavailable

43

Bushing

505070025

Unavailable

44

Flat Washer 6 mm

234061410

Unavailable

45

CAP - Call your local BRP dealership

572045900

Unavailable

46

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

47

Bushing

505070025

Unavailable

48

Hex. Flange Screw M10 X 55

207605544

Unavailable

49

Hex. Screw M10 X 95

207009544

Unavailable

50

Flat Washer 10 mm

234001410

Unavailable

51

Upper Arm Bracket

505070010

Unavailable

52

Lower Arm Bracket

505070011

Unavailable

53

Pop Rivet 3/16"

390402200

$0.26

54

Grease Fitting

408200700

Unavailable

55

Loctite 243, 10 ml

293800060

$20.77

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

57

Grease, Super Lube

293550030

Unavailable

58

PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership | GT

505070232

Unavailable

59

Socket Head Screw M5 x 25 (Europe) | 500 F.

250000015

Unavailable

60

Hex. Flange Elastic Nut M5

233251414

Unavailable

61

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable
