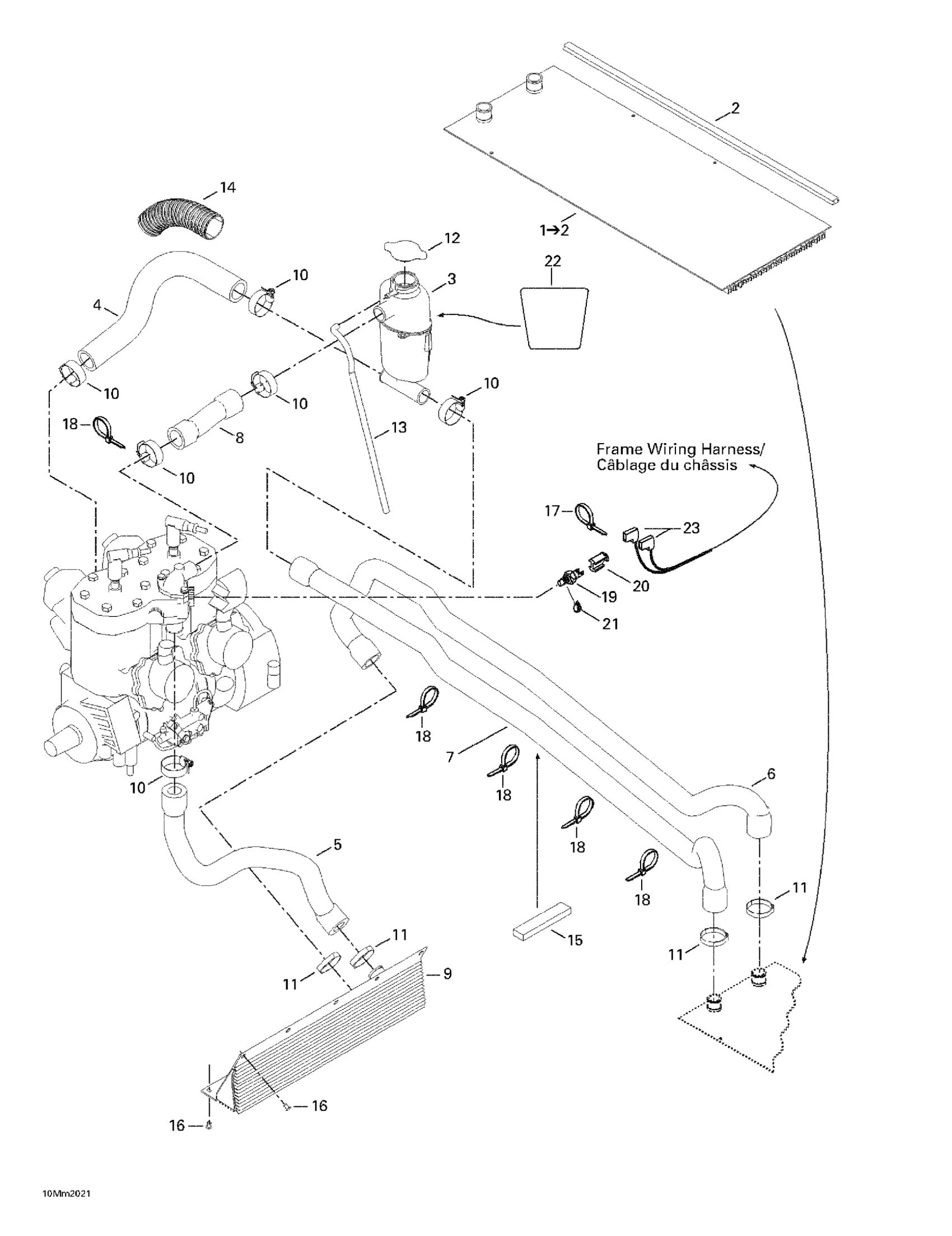

Ski-Doo Grand Touring 600, 2000 Cooling System Diagram

#

Description
Price

1

Rear Radiator | Includes 28 - 29.

517296310

Unavailable

2

Radiator Protector | Grand Touring 500.

518321656

Unavailable

3

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

Unavailable

4

Engine Inlet Hose

509000001

Unavailable

5

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

6

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

7

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

8

Deviation Hose

509000005

Unavailable

9

Front Radiator | Grand Touring 500.

517297100

Unavailable

10

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

11

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

12

Pressure Cap

509000187

Unavailable

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

14

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

15

Neoprene Seal (1PAC=3M)

219704364

$22.72

16

Pop Rivet 3/16"

390402200

$0.26

17

Tie Wrap 142 mm

293750002

Unavailable

18

Tie Wrap 368 mm

293750008

$0.85

19

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

20

Connector Plug | Grand Touring 500.

515175297

Unavailable

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

22

Reflection Sheet

509000068

Unavailable

23

Female Terminal

409010300

$4.12
