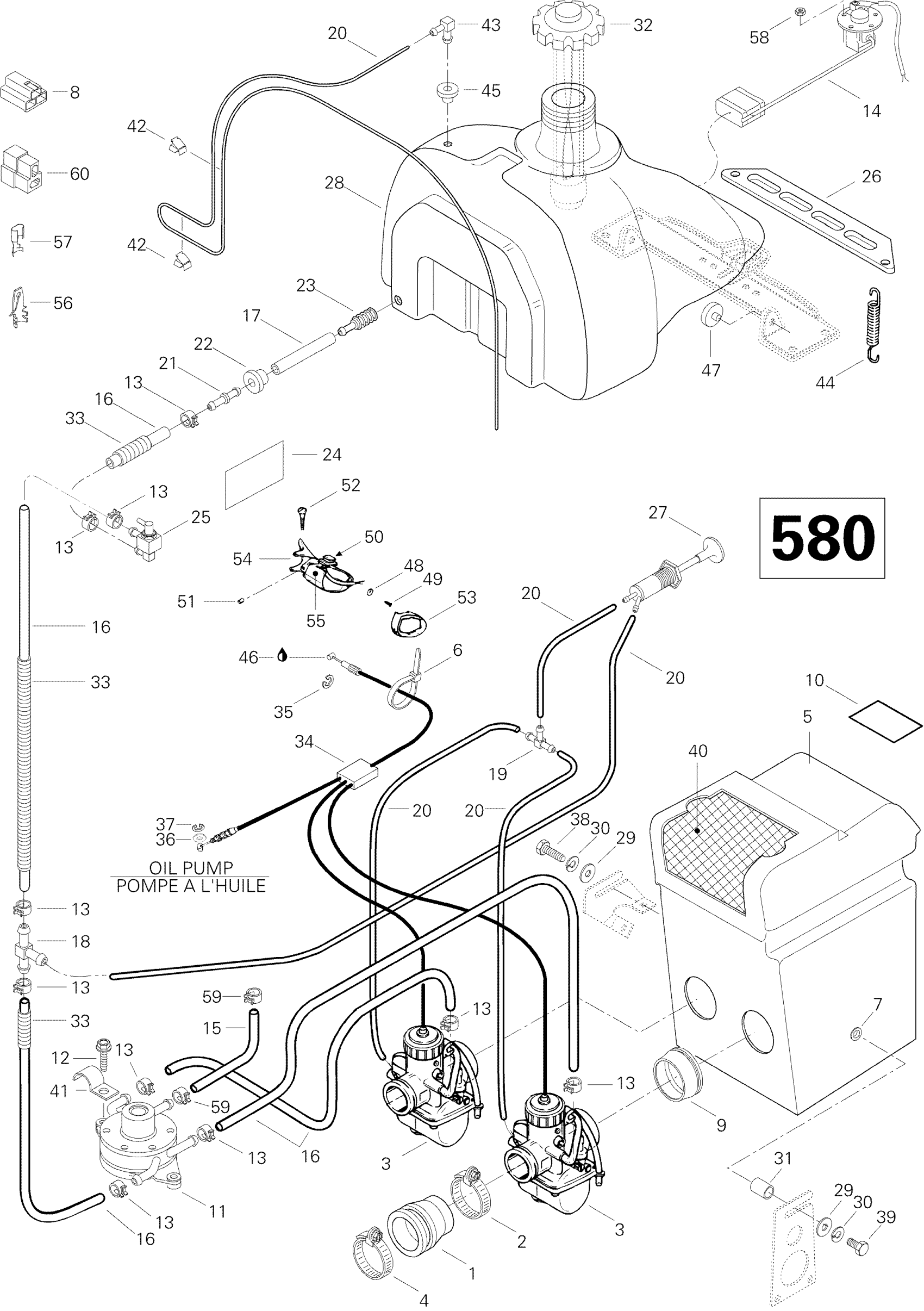

Ski-Doo Grand Touring 580, 1996 Fuel System 580 Diagram

#

Description
Price

1

Rubber Flange

570029400

Unavailable

2

COLLAR - Call your local BRP dealership

414532700

Unavailable

3

Carburetor VM 38-317, PTO Side

403119800

Unavailable

3

Carburetor VM 38-318, MAG Side

403119900

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass‘y | Includes 5 to 9

580628502

Unavailable

6

Tie-Rap 180 mm

414115200

$0.09

7

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

Intake Adaptor

570038400

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump

403900900

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Spring Clamp

414554800

$0.81

14

Fuel Level Sensor

410108400

Unavailable

15

Hose

219704549

$46.24

16

Polyurethane Hose 10000Mm Long

219704410

$46.12

17

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

$1.33

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Male Connector

414518500

$3.50

22

Grommet

570045500

$6.13

23

Fuel Filter

414865700

$8.39

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$32.06

28

Fuel Tank

572057100

Unavailable

29

Flat Washer

224061121

$0.44

30

Lock Washer M6, Black

234161471

$0.51

31

Spacer

517256400

Unavailable

32

Fuel Tank Cap

513033025

$19.47

33

Was 409901800 Tubing (13 mm)

219704400

$9.40

34

Throttle Cable and Housing

414966801

Unavailable

35

Circlip

414274500

$0.74

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

Hex. Screw M6 X 25

207162544

$1.01

39

Hex. Flange Screw M6 X 35

207063544

$1.31

40

Air Filter Foam (2 Holes Silencer)

572029007

Unavailable

41

Open Clamp

414176000

$1.81

42

Clip

414227300

$1.40

43

Male Connector

414814100

$2.12

44

Spring

415107100

$6.01

45

Grommet

709200285

$7.09

46

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

47

Grommet | Europe

707800347

$7.58

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

51

Socket Set Screw M8 X 10

414440800

$3.88

52

Flange Screw

732601143

$3.90

53

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

54

Handle Ass'y

512059348

$85.79

55

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

56

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

57

Female Terminal PACKARD

561503200

Unavailable

58

Elastic Stop Nut M5

232551414

$0.72

59

Spring Clamp

414415200

$0.81

60

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable
