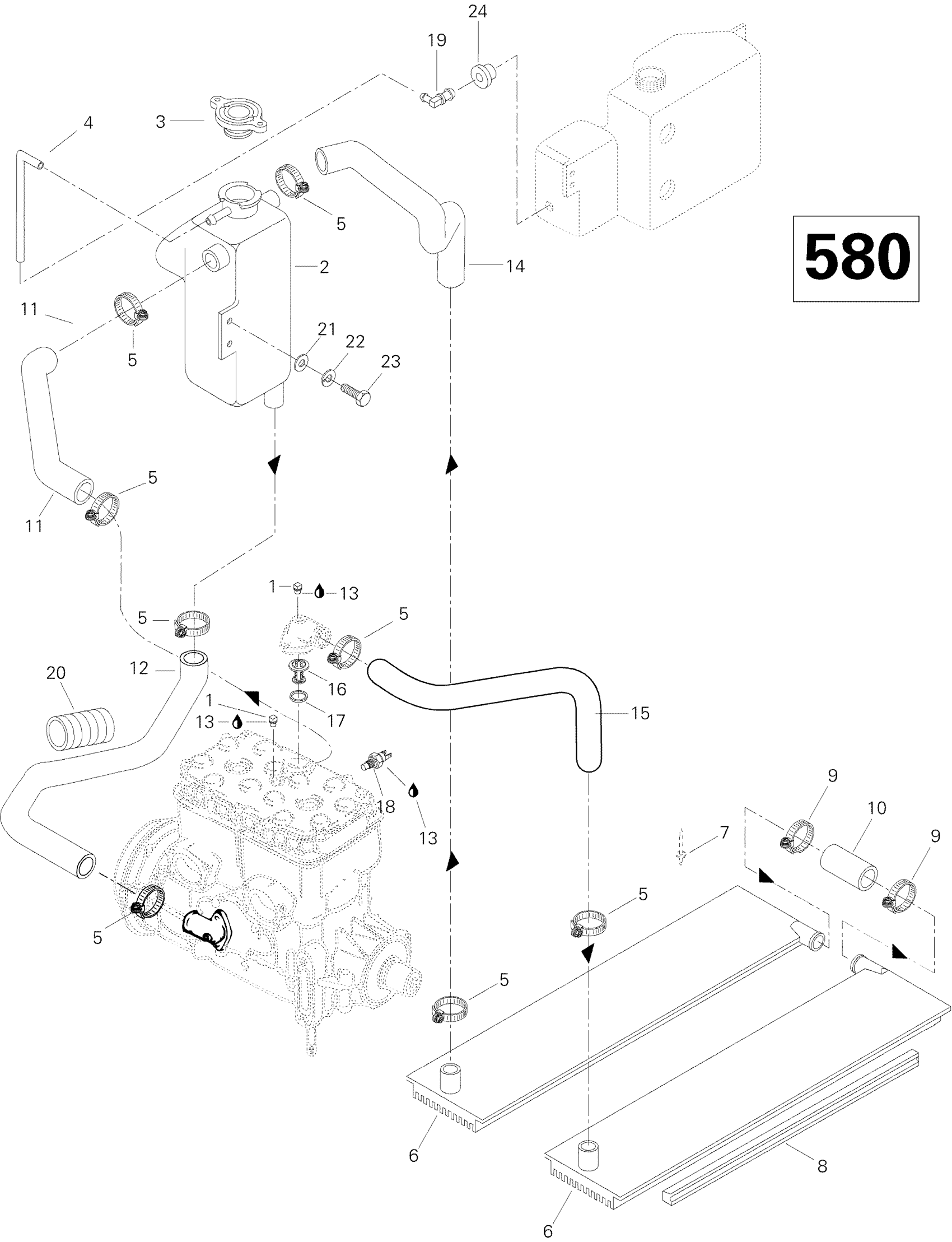

Ski-Doo Grand Touring 580, 1996 Cooling System (580) Diagram

#

Description
Price

1

Plug

414184400

Unavailable

2

Coolant Tank

572055200

Unavailable

3

Pressure Cap

509000187

Unavailable

4

Polyurethane Hose 10000Mm Long

219704410

Unavailable

5

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

6

RH Radiator

517280600

Unavailable

6

LH Radiator

517280601

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Radiator Protector | Formula 500. Formula 500 Deluxe.

517258800

Unavailable

9

Clamp Tridon

408803400

Unavailable

10

Radiator Hose

414795800

Unavailable

11

Engine Outlet Hose

414930700

Unavailable

12

Engine Inlet Hose

414795300

Unavailable

13

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

14

Radiator Outlet Hose

414795400

Unavailable

15

Radiator Inlet Hose

414930600

Unavailable

16

Thermostat This part replaces 414834100.

420922519

Unavailable

17

SEALING RING - Call your local BRP dealership

420931270

Unavailable

18

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

19

Elbow Male Connector

414580600

$3.50

20

TUBING - Call your local BRP dealership

414991800

Unavailable

21

Flat Washer 6 mm

234061410

Unavailable

22

Lock Washer M6, Black

234161471

$0.52

23

Hex. Screw M6 X 16

207161644

Unavailable

24

Grommet

709200285

$8.38
