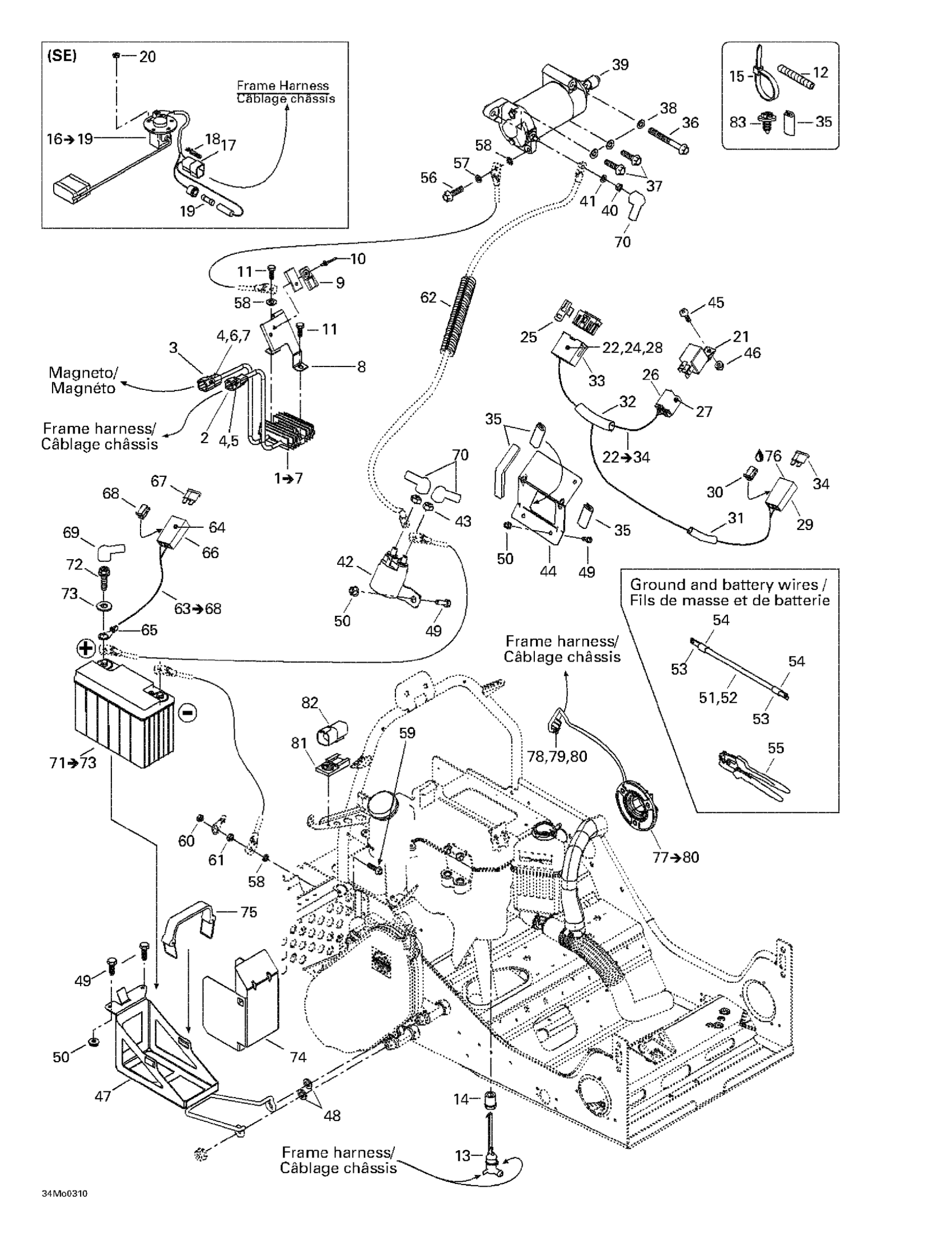

Ski-Doo Grand Touring 500/600/700, 2003 Battery Diagram

#

Description
Price

1

Voltage Regulator

515175968

Unavailable

2

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

3

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

4

Male Terminal

515175568

$7.48

5

Male Lock, 2 Circuits

278001672

$3.02

6

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

7

Sealing Cap

293000052

Unavailable

8

Housing Support

515175842

Unavailable

9

Clip

270000141

$8.33

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Taptite Screw

290841543

Unavailable

12

Was 409901800 Tubing (13 mm)

219704400

Unavailable

Tubing 10 MM 1000MM Long

219704407

Unavailable

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

13

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

14

Float

414681900

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

16

Fuel Sensor Ass’Y | SE / INCLUDES ITEMS 14 TO 17

515175170

Unavailable

17

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

18

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

19

Fuse, 0.25 Ampere

410112400

Unavailable

20

Elastic Stop Nut M5

232551414

Unavailable

21

Relay | DS 650 X

710010053

Unavailable

22

Configuration Harness Ass'y | Includes 13 to 27

515175721

Unavailable

23

Male Terminal

515175232

$1.49

24

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

25

Housing Support

515175283

$8.43

26

Female Housing, 5 Circuits

409209900

$8.98

27

Female Terminal

561503100

Unavailable

28

Female Terminal

409011600

$5.11

29

Fuse Holder

409004000

Unavailable

30

CLIP - Call your local BRP dealership

409014200

$4.23

31

Tubing 6 Mm 3000Mm Long

219704425

$13.14

32

Was 409901800 Tubing (13 mm)

219704400

Unavailable

33

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

34

Fuse, 5 Amperes | CE

278000344

$3.22

35

Was 271000110 Protection Trim

219704353

Unavailable

36

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

37

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

38

Flat Washer With Teflon 8 mm

250200008

Unavailable

39

Electric Starter Ass'y

515176133

Unavailable

40

Elastic Stop Nut M6

232561414

Unavailable

41

Flat Washer 6 mm

234061410

Unavailable

42

Starter Relay

515176011

Unavailable

43

Elastic Stop Nut M6

232561414

Unavailable

44

Fuse Holder

515175907

Unavailable

45

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

$0.98

46

Hex. Flange Elastic Nut M5

233251414

Unavailable

47

Battery Support

515175718

Unavailable

48

Washer

503175800

$3.26

49

Hex. Screw M5 X 14

207151444

Unavailable

50

Hex. Flange Elastic Nut M5

233251414

Unavailable

51

Ground Cable Battery, no 6, meter)

278001680

Unavailable

52

Cable Battery, no 6, meter)

278001690

Unavailable

53

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

54

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

55

Crimp Plier

529035730

Unavailable

56

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

57

Flat Washer 6 mm

234061410

Unavailable

58

Lock Washer Serrated M6

250200041

Unavailable

59

Hex. Flange Screw M6 X 20

207662044

Unavailable

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

61

Hex. Nut M6

232061414

$0.44

62

Was 409901700 Tubing (9 mm)

219704399

Unavailable

63

Battery Fuse Wire | Includes 21 to 22

515175489

Unavailable

64

Female Terminal

409004200

Unavailable

65

Open Barrel

278000992

$1.79

66

Fuse Holder

409004000

Unavailable

67

Fuse, 30 Amperes

410917200

$3.22

68

CLIP - Call your local BRP dealership

409014200

$4.23

69

Protection Cap

570151000

$18.43

70

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

71

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

Unavailable

72

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

73

Flat Washer 6 mm

234061410

Unavailable

74

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

75

Battery Strap

515176044

Unavailable

76

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

77

Flange, Speedo

504152173

Unavailable

78

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

79

Female Lock, 3 Circuits

515175676

Unavailable

80

Female Terminal

278000632

Unavailable

81

Clip

270000141

$8.33

82

Male Terminal Housing, 6 Circuits

515175668

$14.02

83

Mount Dart

293730040

$0.86
