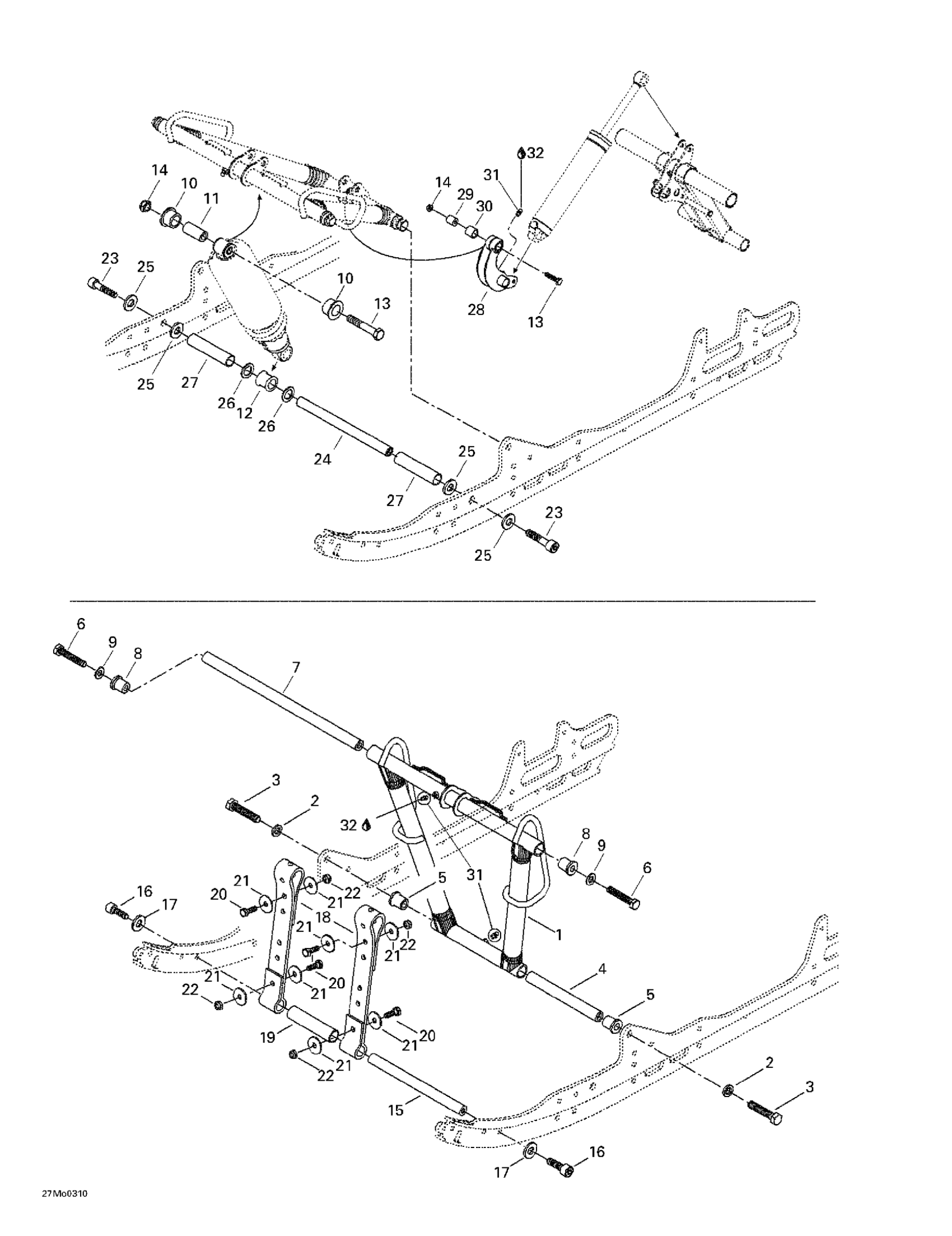

Ski-Doo Grand Touring 500/600/700, 2003 Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$11.17

9

Washer

732900049

Unavailable

10

Urethane Bushing

503189117

Unavailable

11

Bushing | Includes 240d to 240d1

503189282

Unavailable

12

Bushing

503189271

Unavailable

13

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.68

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

17

Washer

503189564

Unavailable

18

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

19

Spacer

503189265

$4.66

20

Hex. Screw M8 X 25

207182544

Unavailable

21

Flat Washer

224081301

$0.86

22

Hex. Elastic Stop Nut M8

232581414

Unavailable

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

24

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

25

Washer

503189276

Unavailable

26

Washer

503189273

Unavailable

27

SPACER - Call your local BRP dealership

503189274

Unavailable

28

Rocker

503189845

Unavailable

29

Rocker Axle

503189388

Unavailable

30

CUSHION - Call your local BRP dealership

503189626

Unavailable

31

Grease Fitting

408200700

Unavailable

32

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
