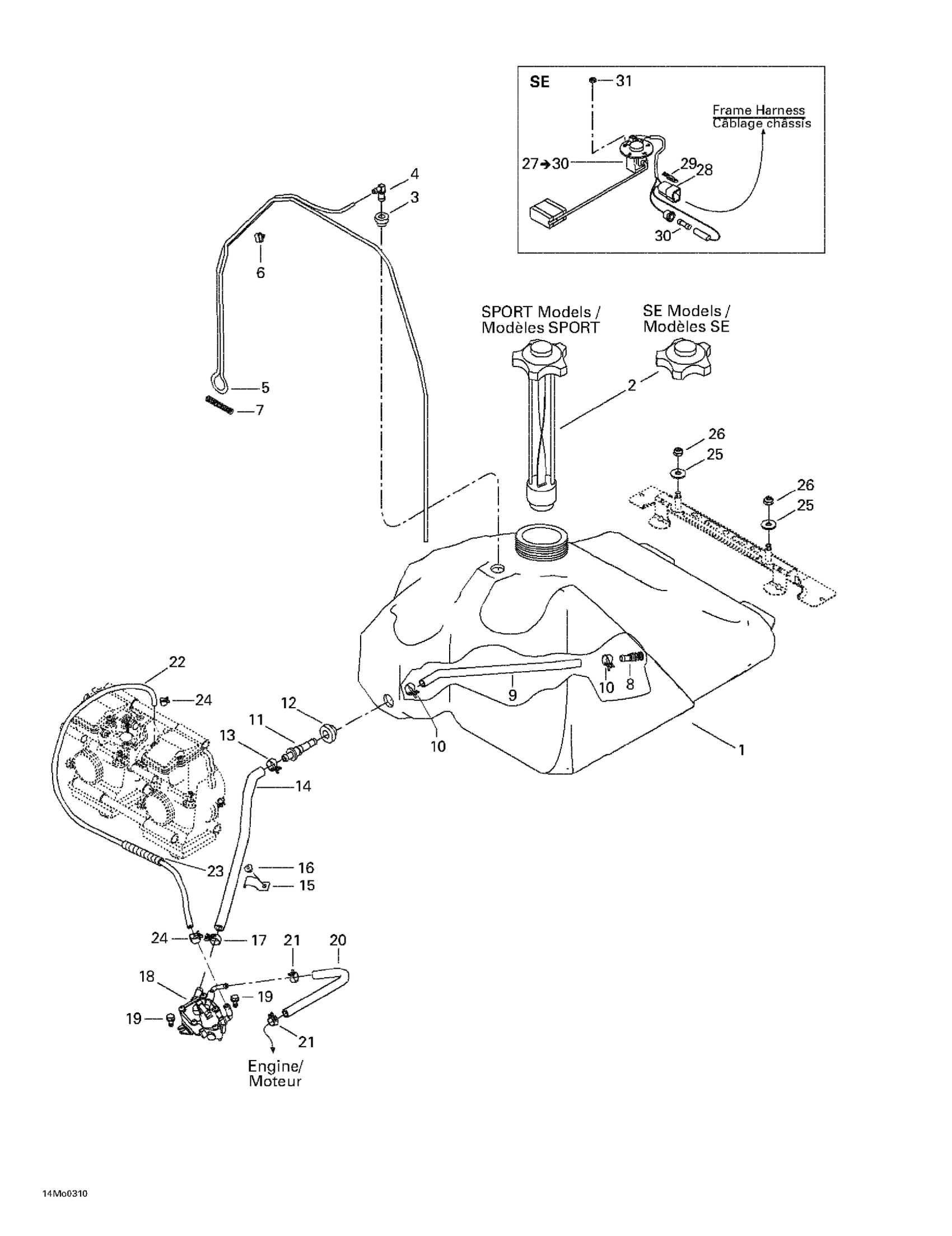

Ski-Doo Grand Touring 500/600/700, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032987

Unavailable

Fuel Tank | SE

513032988

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

Fuel Tank Cap

513033025

$19.47

3

Grommet

513032908

$8.74

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

9

Hose

415005700

$5.49

10

Norma Spring Clamp

513033010

$8.68

11

Male Connector

414872700

$1.86

12

Grommet | Europe

707800347

$7.58

13

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

14

Formed Hose

513032903

$28.43

15

CLIP - Call your local BRP dealership

415018200

Unavailable

16

Pop Rivet 3/16"

293150103

$0.54

17

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

18

FUEL PUMP - Call your local BRP dealership

403901808

Unavailable

19

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

20

Hose

219704549

$47.66

21

Spring Clamp

414415200

$0.83

22

Formed Tube

513032986

Unavailable

23

Tubing 10 MM 1000MM Long

219704407

$2.20

24

Spring Clamp

414420700

$0.68

25

Flat Washer 8 mm

234082410

$1.11

26

Hex. Elastic Stop Nut M8

232581414

$0.47

27

Fuel Sensor Ass’Y | SE / INCLUDES ITEMS 14 TO 17

515175170

Unavailable

28

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

29

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

30

Fuse, 0.25 Ampere

410112400

Unavailable

31

Elastic Stop Nut M5

232551414

$0.72
