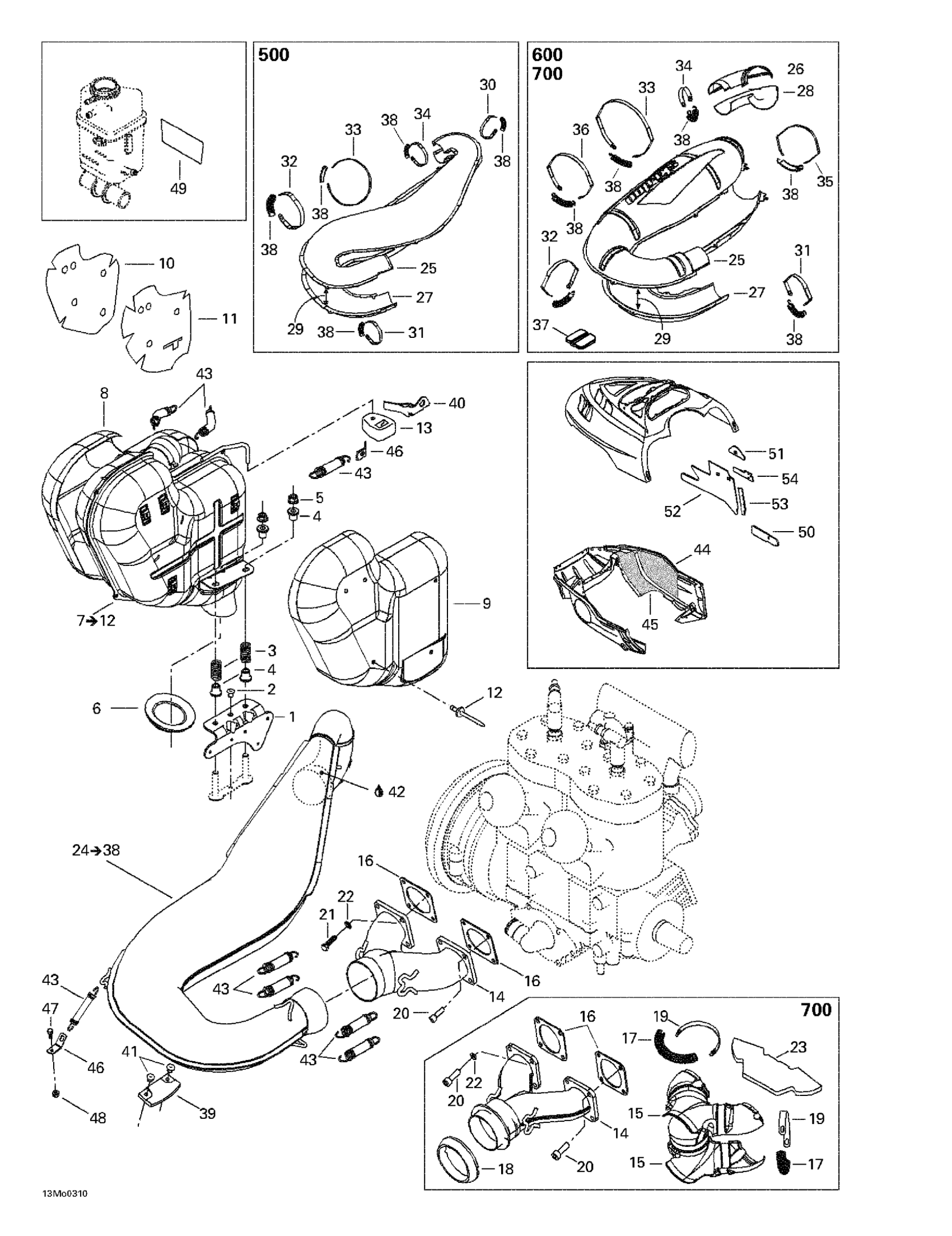

Ski-Doo Grand Touring 500/600/700, 2003 Muffler Diagram

#

Description
Price

1

Muffler Bracket

514053263

Unavailable

2

Pop Rivet 3/16"

390402200

$0.26

3

SPRING - Call your local BRP dealership

414913700

$2.28

4

GUIDE - Call your local BRP dealership

514053343

$23.05

5

Lock Spring Nut M8

233481413

Unavailable

6

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

Exhaust Grommet

514053064

Unavailable

7

Muffler | 600

514053326

Unavailable

Muffler | 700 / INCLUDES ITEMS 7 TO 12

514053537

Unavailable

8

RH Heat Shield | 600

514053160

Unavailable

RH Heat Shield | 700

514053606

Unavailable

9

LH Heat Shield | 600

514052733

Unavailable

LH HEAT SHIELD - Call your local BRP dealership | 700

514053516

Unavailable

10

RH Insulating Wool | 600

514052734

Unavailable

RH Insulating Wool | 700

514053294

Unavailable

11

LH Insulating Wool | 600

514052844

Unavailable

LH Wooll Insulating

514053295

Unavailable

12

Pop Rivet 3/16”

390910000

$0.48

13

RUBBER BUMPER - Call your local BRP dealership

514052704

$10.74

14

Exhaust Manifold | Grand Touring 500.

420973650

Unavailable

Exhaust Manifold

420979543

Unavailable

Exhaust Manifold | 700

420973593

Unavailable

15

Enveloppe, Exhaust Manifold

514053593

Unavailable

16

Gasket

420850552

$7.92

Gasket

420931610

$11.38

GASKET - Call your local BRP dealership | Grand Touring 500.

420931615

Unavailable

17

Spring

514053643

$6.20

18

Exhaust Gasket

514053487

Unavailable

19

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

20

Socket Head Screw M6 X 20

205062044

$1.07

Socket Head Screw M8 X 25

205082544

Unavailable

21

Hex. Screw M8 X 20

207182044

$0.61

22

Lock Washer M6, Black

234161471

$0.52

Lock Washer 8 mm

234181401

Unavailable

23

INSULATING WOOL - Call your local BRP dealership

514053588

$12.28

24

Tuned Pipe Ass’Y | Includes 24 - 38. Grand Touring 500. Grand Touring 600.

514053488

Unavailable

Tuned Pipe Ass’Y | 600 / INCLUDES ITEMS 24 TO 37

514053495

Unavailable

Tuned Pipe Ass’Y | Grand Touring 500. .

514053676

Unavailable

25

Upper Enveloppe | Grand Touring 500.

514053167

Unavailable

Upper Enveloppe | 600

514053192

Unavailable

Upper Enveloppe

514053690

Unavailable

26

REAR UPPER ENVELOPE - Call your local BRP dealership | 600

514053193

$23.05

REAR UPPER ENVELOPE - Call your local BRP dealership | 700

514053313

$23.05

27

Lower Envelope | Grand Touring 500.

514053360

Unavailable

LOWER ENVELOPE - Call your local BRP dealership

514053367

$54.58

Lower Envelope

514053691

Unavailable

28

REAR LOWER ENVELOPE - Call your local BRP dealership | 600

514053196

$23.05

REAR LOWER ENVELOPE - Call your local BRP dealership | 700

514053314

$24.58

29

Insulating Wool | Grand Touring 500.

514052716

Unavailable

INSULATING WOOL - Call your local BRP dealership | 600

514053285

$16.89

Insulating Wool

514053696

Unavailable

30

Retaining Strap

514053499

$8.35

31

RETAINING STRAP - Call your local BRP dealership

514053494

$4.58

Retaining Strap

514053498

$8.35

32

Retaining Strap

514053502

$8.35

Retaining Strap

514053501

$8.34

33

RETAINING STRAP - Call your local BRP dealership

514053540

$7.66

34

RETAINING STRAP - Call your local BRP dealership

514053493

Unavailable

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

Retaining Strap

514053492

$10.55

35

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

36

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

37

Rubber Pad | 600

514053180

Unavailable

38

Spring

514053643

$6.20

39

Rubber Pad

570044100

Unavailable

40

SUPPORT - Call your local BRP dealership

514053442

$9.20

41

Pop Rivet 3/16"

293150103

Unavailable

42

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

43

Spring

415107100

$6.20

Spring

415107100

$6.20

44

Reflective Sheet

514052718

Unavailable

45

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

46

Spring Bracket

514053436

$8.35

Spring Bracket

514053436

$8.35

47

Hex. Screw M5 X 12

207151244

Unavailable

48

Hex. Flange Elastic Nut M5

233251414

Unavailable

49

Reflective Sheet | Grand Touring 500.

514053399

Unavailable

50

Reflective Sheet, Black Cab

514053435

Unavailable

51

Reflective Sheet, Black Cab

514053446

Unavailable

52

Reflective Sheet

514053624

Unavailable

53

Reflective Sheet

514053450

Unavailable

54

Reflective Sheet | FOR RIM CAB ONLY

514053391

Unavailable
