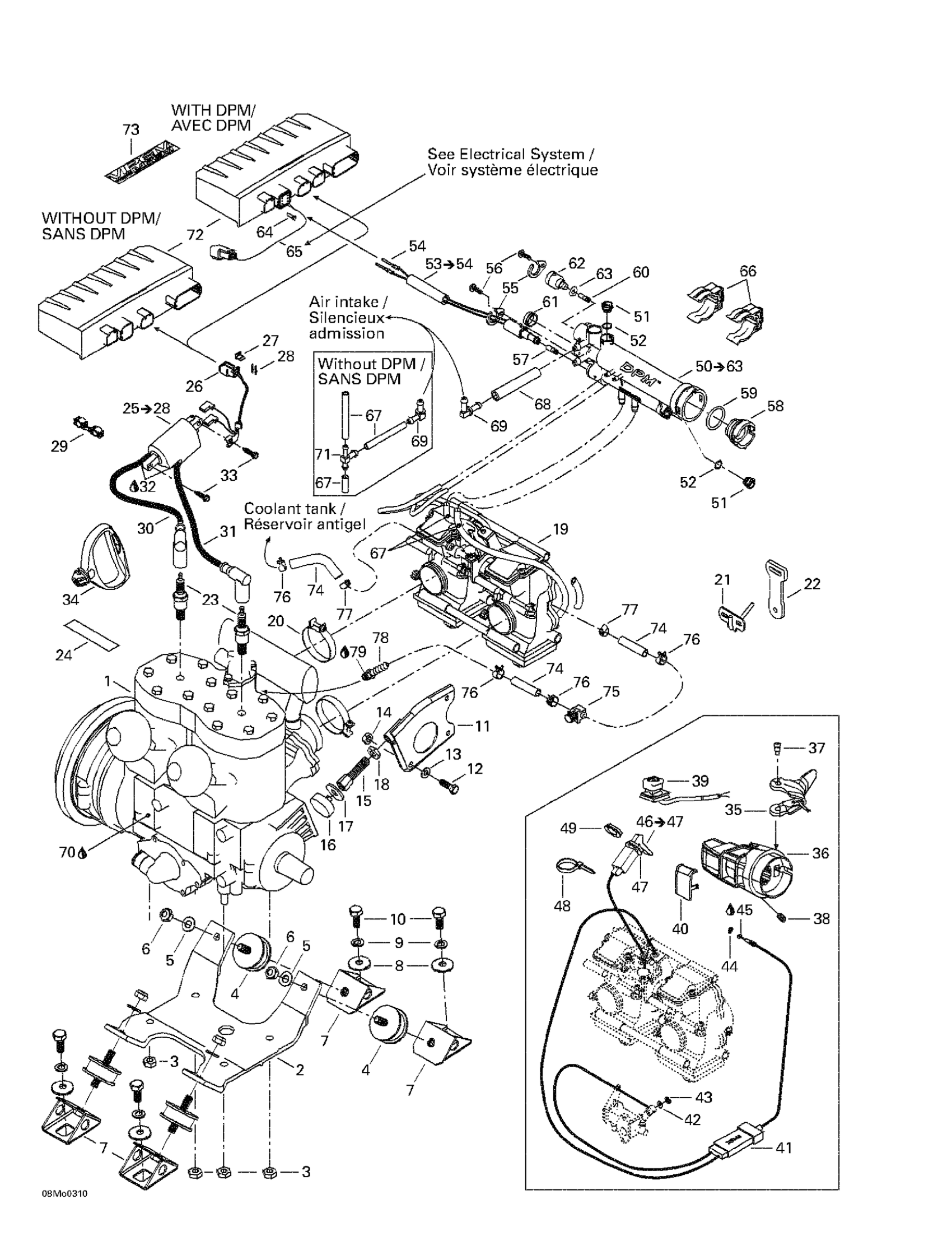

Ski-Doo Grand Touring 500/600/700, 2003 Engine Support, Dpm, Throttle Handle Diagram

Engine 493 RER | Grand Touring 500.

400409430

Unavailable

Engine 593 RER | Grand Touring 600.

400509736

Unavailable

«693» Engine (Rer) | 700

400604026

Unavailable

ENGINE SUPPORT - Call your local BRP dealership

512059488

Unavailable

Hex. Flange Elastic Nut M10

233201414

$1.26

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

Flat Washer 10 mm

234001410

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.68

Engine Support

512050900

Unavailable

Lock Washer

512056700

Unavailable

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Screw M10 X 25

207102544

Unavailable

Support Plate

512058500

Unavailable

Hex. Screw M8 X 20

207182044

$0.61

Flat Washer 8 mm

234081410

Unavailable

Hex. Elastic Stop Nut M8

232581414

Unavailable

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

Stopper

512059056

Unavailable

WASHER - Call your local BRP dealership

512059057

Unavailable

Nut Hexagonal RH.

232026414

Unavailable

Carburetor Kit Tm 40 B-229 | Grand Touring 500.

403138732

Unavailable

Carburetor Kit Tm 40 B-232 | 600

403138731

Unavailable

Carburetor Kit Tm 40 B-241 | 700

403138730

Unavailable

Gemi Clamp

512059835

Unavailable

Carburetor Bracket

512059504

Unavailable

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

Spark Plug NGK BR9ECS-5

512059552

$9.70

Spark Plug Decal

516000986

Unavailable

Ignition Coil | INCLUDES ITEMS 22 TO 25

512059512

Unavailable

Female Connector, 2 Circuits

409207300

$9.60

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

Female Terminal

278000632

Unavailable

Plastic Clip, Spark Plug Wire

410914600

Unavailable

Cable Ass’y, 375 mm

512059696

Unavailable

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

Starter Grip

572084400

Unavailable

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

Flange Screw

732601143

$4.02

Socket Set Screw M8 X 10

414440800

$4.00

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

Switch Cover

572100901

Unavailable

THROTTLE CABLE - Call your local BRP dealership | SPORT

512059679

Unavailable

Throttle Cable | SE

512059680

Unavailable

Flat Washer 8 mm, Nylon

234081100

$1.00

Circlip

414753500

$0.59

Circlip

414274500

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

Lock Washer, Interior Teeth

394103300

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

Pressure Manifold Ass’Y | Includes 50 - 63. Grand Touring 600.

512059774

Unavailable

Pressure Manifold Ass’Y | Grand Touring 700.

512059634

Unavailable

Cap | Grand Touring 600. Grand Touring 700.

512058921

Unavailable

O-Ring | Grand Touring 600. Grand Touring 700.

512058925

Unavailable

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

Female Terminal

278001665

Unavailable

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

Screw K40 X 10

241140060

$1.25

STARTER JET - Call your local BRP dealership

404161825

Unavailable

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Cap | Grand Touring 600. Grand Touring 700.

512058982

Unavailable

Cap | Grand Touring 600. Grand Touring 700.

512059557

Unavailable

O-Ring | Grand Touring 600. Grand Touring 700.

512059558

Unavailable

Sensor Harness | INCLUDES ITEMS 104 TO 110

515175898

Unavailable

Sealing Cap

293000052

Unavailable

SUPPORT - Call your local BRP dealership

512058919

Unavailable

Polyurethane Hose 10000Mm Long

219704410

Unavailable

Hose | Grand Touring 600. Grand Touring 700.

512059523

Unavailable

Elbow Male Connector

414580600

$3.50

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

XP-S

BOMBARDIER-ROTAXFORMULA

Unavailable

T-Fitting

572045500

Unavailable

Calibration Module | Grand Touring 500.

512059638

Unavailable

Calibration Module | Grand Touring 600.

512059641

Unavailable

Calibration Module | Grand Touring 600.

512059653

Unavailable

Calibration Module | Grand Touring 700.

512059654

Unavailable

Calibration Module | Grand Touring 700.

512059652

Unavailable

Electrical Box Decal

516000245

Unavailable

Hose 8 mm

509000093

Unavailable

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

Spring Clamp

414655700

Unavailable

Tridon Gear Clamp

293650170

$1.74

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable
