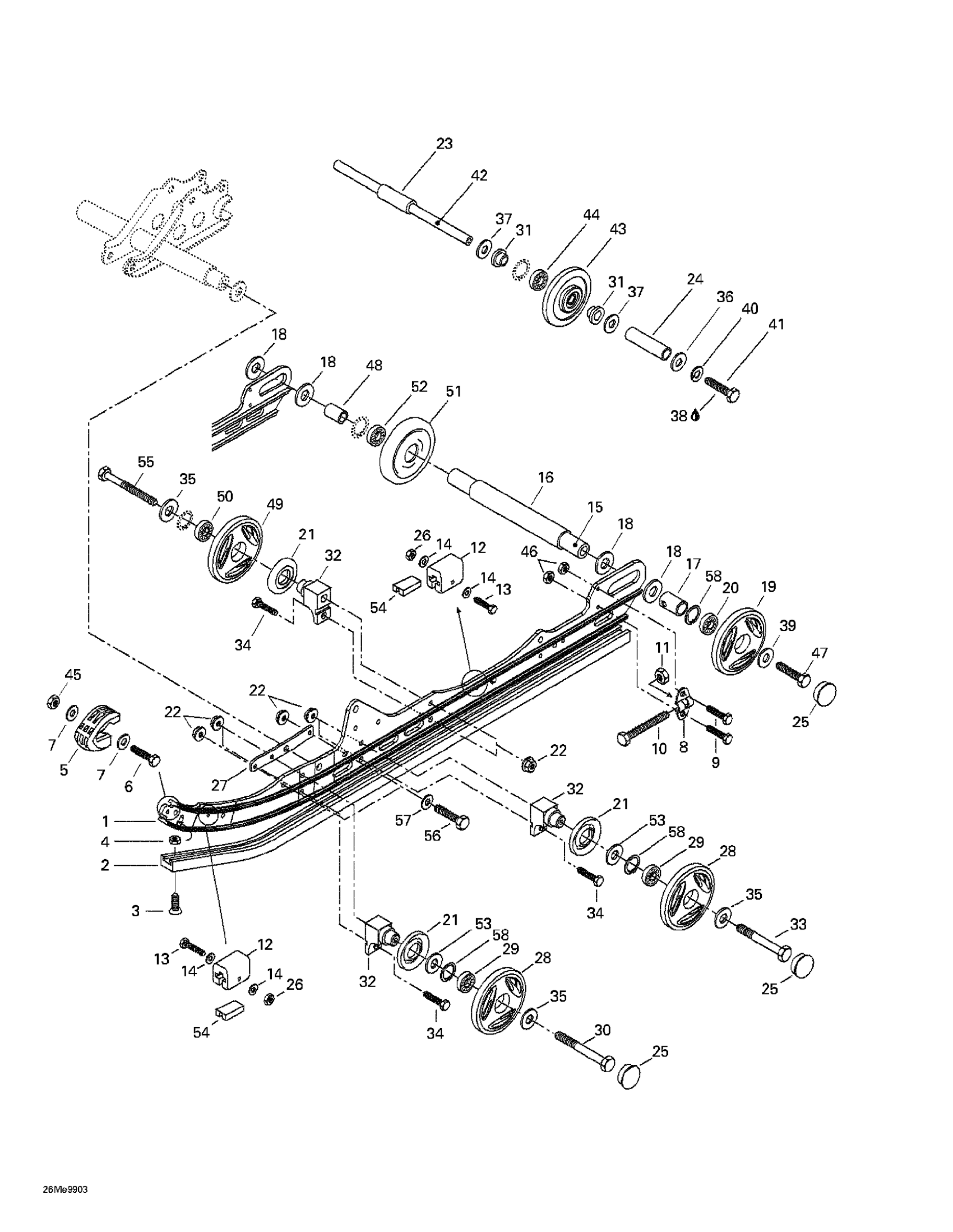

Ski-Doo Grand Touring 500/583, 1999 Rear Suspension Diagram

#

Description
Price

1

Runner

503188979

Unavailable

2

Slide Shoe

605355362

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$129.20

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

$15.35

18

Washer

503180400

$3.37

19

Wheel 165

503188946

Unavailable

20

Ball Bearing

293350115

Unavailable

21

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Spacer

503153100

Unavailable

24

External Spacer

503188951

Unavailable

25

Wheel Cap

570063600

Unavailable

26

Elastic Stop Nut M5

232551414

Unavailable

27

Reinforcement Plate

503189060

Unavailable

28

Wheel 139

503188945

Unavailable

29

Ball Bearing

293350115

Unavailable

30

Hex. Screw M8 X 90

207089044

$2.82

31

Cushion

503189534

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

34

Hex. Screw M8 X 25

207182544

Unavailable

35

Washer

503183100

$3.08

36

Washer (Black)

503169900

Unavailable

37

WASHER - Call your local BRP dealership

503154000

$4.20

38

Loctite 243, 10 ml

293800060

$20.77

39

Washer

503183300

$5.68

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

Unavailable

45

Elastic Stop Nut M5

232551414

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Inner Spacer

503182900

$10.18

49

Wheel 139 mm Ass'y

503190798

Unavailable

50

Ball Bearing

293350115

Unavailable

51

Wheel 165" | Includes 670 to 670b

503194127

$49.97

52

Ball Bearing

293350115

Unavailable

53

WASHER - Call your local BRP dealership

503173700

Unavailable

54

Reinforcement Stopper

572084800

$5.25

55

Hex. Screw M8 X 80

207088044

Unavailable

56

Hex. Screw M8 X 30

207183044

Unavailable

57

Flat Washer 8 mm

234081410

Unavailable

58

CIRCLIP - Call your local BRP dealership

371901700

Unavailable
