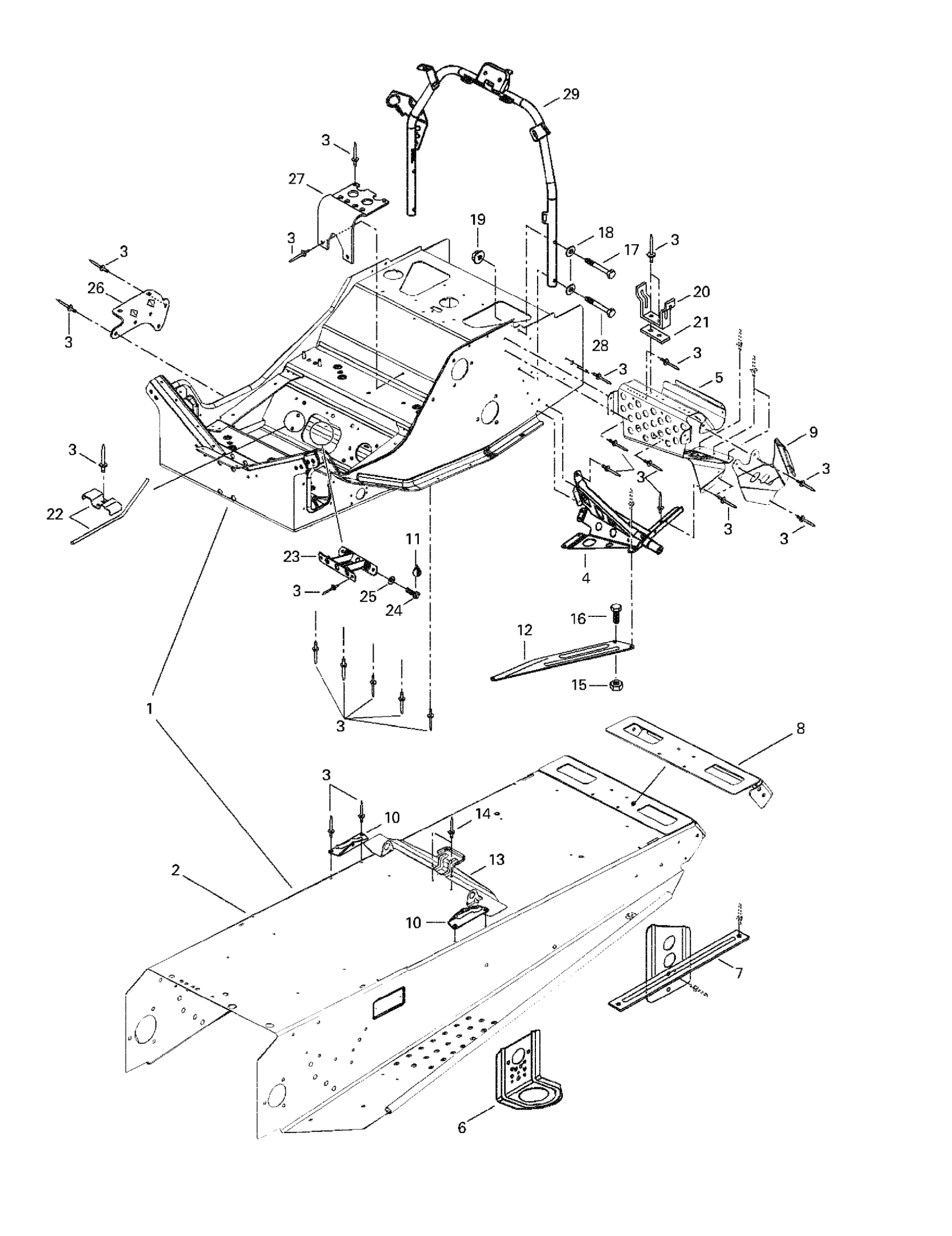

Ski-Doo Grand Touring 500/583, 1998 Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 16.

518319044

Unavailable

2

Tunnel

518318852

Unavailable

3

Pop Rivet 3/16"

390402200

$0.26

4

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

$104.58

RH Support

518320503

Unavailable

5

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

6

Front Bracket

518312910

Unavailable

7

LH Rear Bracket

518318912

Unavailable

RH Rear Bracket

518318911

Unavailable

8

Cap-End | Formula III 600 LT.

518317551

Unavailable

9

Upper Plate L.H

518308729

Unavailable

Upper Plate R.H

518308730

Unavailable

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

Loctite 271, 10 ml

293800005

Unavailable

12

RH Reinf. Plate

518316772

Unavailable

LH Reinf. Plate

518316773

Unavailable

13

Seat Bracket

518317560

Unavailable

14

Pop Rivet 3/16"

390402400

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

Unavailable

16

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

17

Hex. Flange Screw M6 X 35

207063544

$1.35

18

Flat Washer 6 mm

234061410

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Belt Guard Bracket

518202100

$16.12

21

REINFORCEMENT - Call your local BRP dealership

518207500

$6.31

22

Guide Rope

518313700

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.61

25

Lock Washer 8 mm

234181401

Unavailable

26

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Hex. Screw M6 X 40

207064044

$1.48

29

Handle Steering Support

518309200

Unavailable
