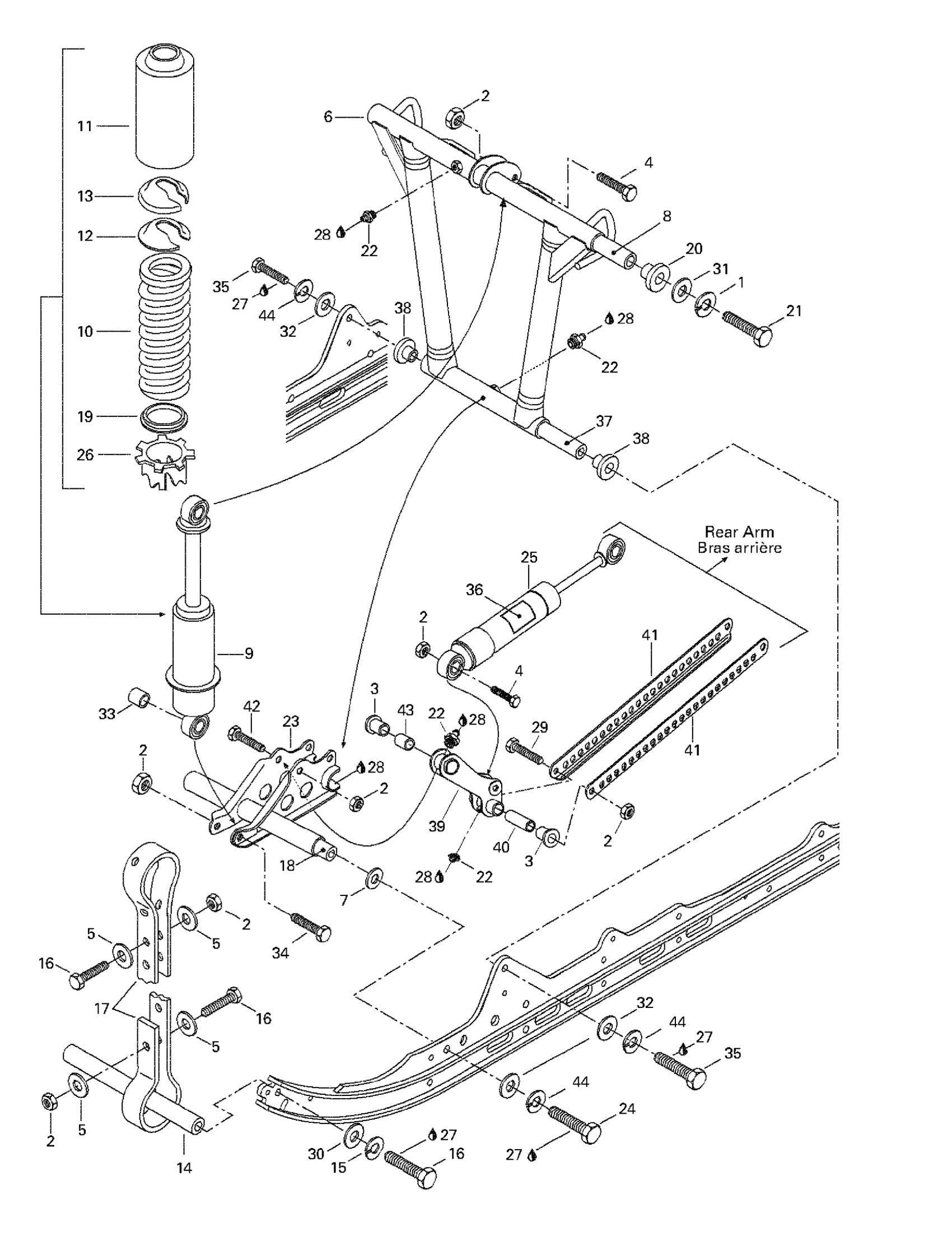

Ski-Doo Grand Touring 500/583, 1998 Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

2

Hex. Elastic Stop Nut M8

232581414

$0.47

3

Plastic Cushion

415052300

Unavailable

4

Hex. Screw M8 X 40

207084044

$0.92

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm | Formula Z 583. Formula 583 Deluxe.

503176000

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Center Shock

415094600

Unavailable

10

Shock Spring

415070600

Unavailable

11

Protector

503193663

$35.35

12

Cap

706200785

$4.42

13

Spring Stopper

706200881

$10.30

14

Axle

503151600

$15.35

15

Lock Washer 8 mm

234181401

$0.89

16

Hex. Screw M8 X 30

207183044

$0.92

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

572092600

Unavailable

20

Bushing

503189324

$11.17

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$2.80

23

Welded Shock Support | Formula Deluxe 500 LC.

503185000

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Rear Shock

415095000

Unavailable

26

Cam

503169000

Unavailable

27

Loctite 271, 10 ml

293800005

$20.77

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

29

Hex. Screw M8 X 90

207089044

$2.82

30

Flat Washer 8 mm

234081410

$0.69

31

Flat Washer 10 mm

234001410

$0.98

32

Flat Washer 12 mm

234021410

$0.68

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.62

35

Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.

222026065

Unavailable

36

Shock Decal

418001500

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Cushion | Formula Z 583. Formula 583 Deluxe.

415026300

Unavailable

39

Lever

503171400

Unavailable

40

Tie Rod Shaft

503171600

Unavailable

41

Tie Rod | Formula III 600 LT.

503170900

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.25

43

Pivot Axle

503171700

Unavailable

44

Lock Washer 12 mm

224721218

Unavailable
