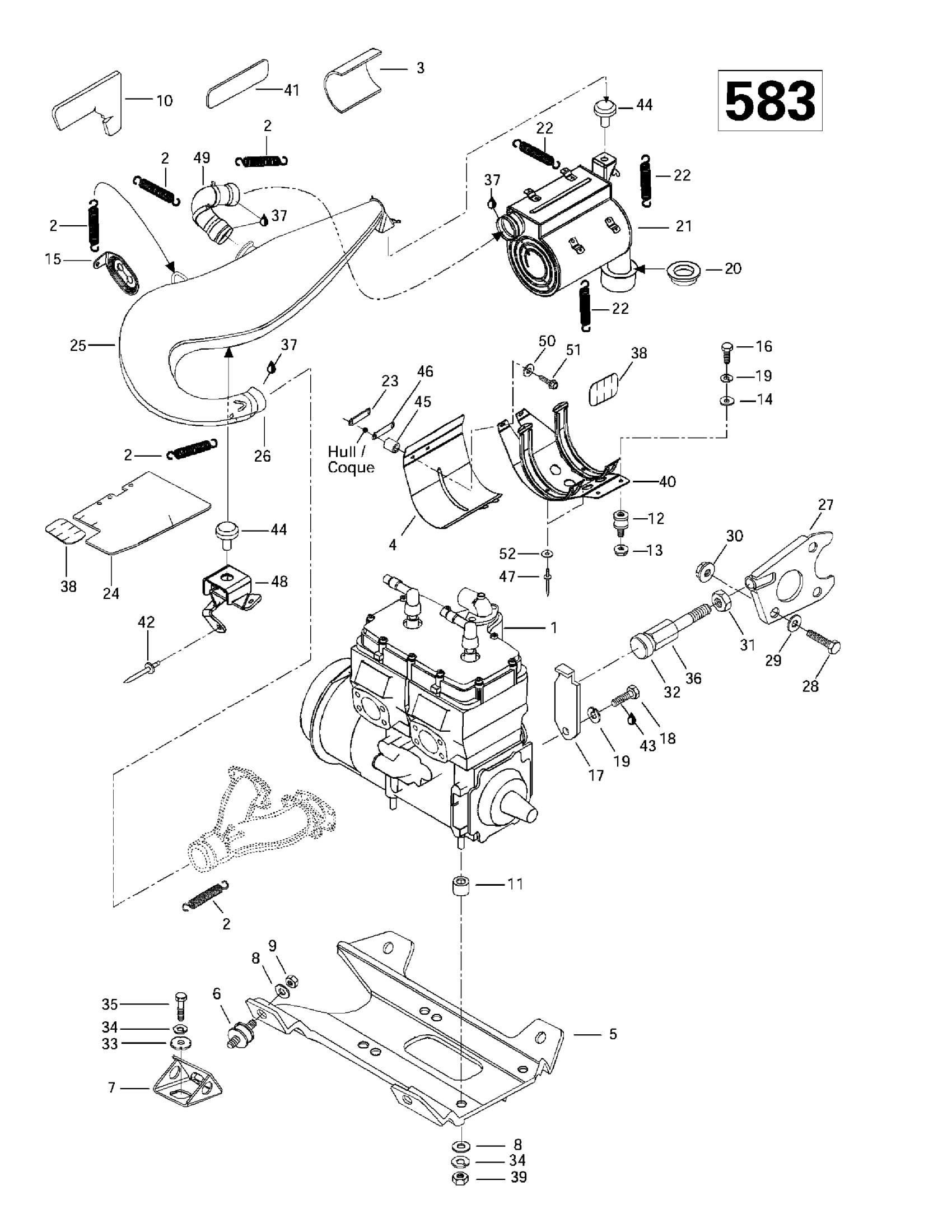

Ski-Doo Grand Touring 500/583, 1997 Engine Support And Muffler (583) Diagram

#

Description
Price

1

<<583>> Engine | Grand Touring 583.

400507700

Unavailable

2

Spring

415107100

$6.20

3

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

4

Heat Deflector | Formula Deluxe 583. Formula Deluxe 670.

514044300

Unavailable

5

Engine Support

512054400

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

7

Engine Support

512050900

Unavailable

8

Flat Washer 10 mm

234001410

Unavailable

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415014900

Unavailable

11

Spacer

503128100

Unavailable

12

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Flat Washer 8 mm

234081410

Unavailable

15

Pipe Bracket | Formula Deluxe 583. Formula Deluxe 670.

514045100

Unavailable

16

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

17

Stopper Plate | Formula Deluxe 583.

512049100

Unavailable

18

Hex. Screw M8 x 16

207181644

$0.87

19

Lock Washer 8 mm

234181401

Unavailable

20

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

21

Muffler | Formula Deluxe 583. Formula Deluxe 670.

514044400

Unavailable

22

Spring

414851600

Unavailable

23

Side Bracket

517267100

Unavailable

24

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415049500

Unavailable

25

Single Tuned Pipe | Formula Z 583. Formula 583 Deluxe.

514046500

Unavailable

26

FEMALE BALL JOINT - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

420879991

Unavailable

27

Support Plate

512055600

Unavailable

28

Hex. Screw M8 X 25

207182544

Unavailable

29

Flat Washer 8 mm

234081410

Unavailable

30

Hex. Elastic Stop Nut M8

232581414

Unavailable

31

Nut Hexagonal RH.

232026414

Unavailable

32

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

33

Lock Washer

512056700

Unavailable

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Hex. Screw M10 X 25

207102544

Unavailable

36

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

38

Reflection Plate | Formula Deluxe 583. Formula Deluxe 670.

414706200

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.11

40

Support Ass'y | Formula Deluxe 583. Formula Deluxe 670.

514044200

Unavailable

41

Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.

415049100

Unavailable

42

Pop Rivet 3/16"

390906800

Unavailable

43

Loctite 271, 10 ml

293800005

Unavailable

44

Rubber Bumper

514053654

$49.20

45

Rubber Spacer | Formula Deluxe 583. Formula Deluxe 670.

570049300

Unavailable

46

Reinforcement | Formula Deluxe 583. Formula Deluxe 670.

514045200

Unavailable

47

Pop Rivet 3/16"

390402200

$0.26

48

Pipe Support | Formula Deluxe 583. Formula Deluxe 670.

514044500

Unavailable

49

Tail Pipe | Formula Deluxe 583. Formula Deluxe 670.

514044700

Unavailable

50

Flat Washer 6 mm

234061410

Unavailable

51

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

52

Washer

517124300

Unavailable
