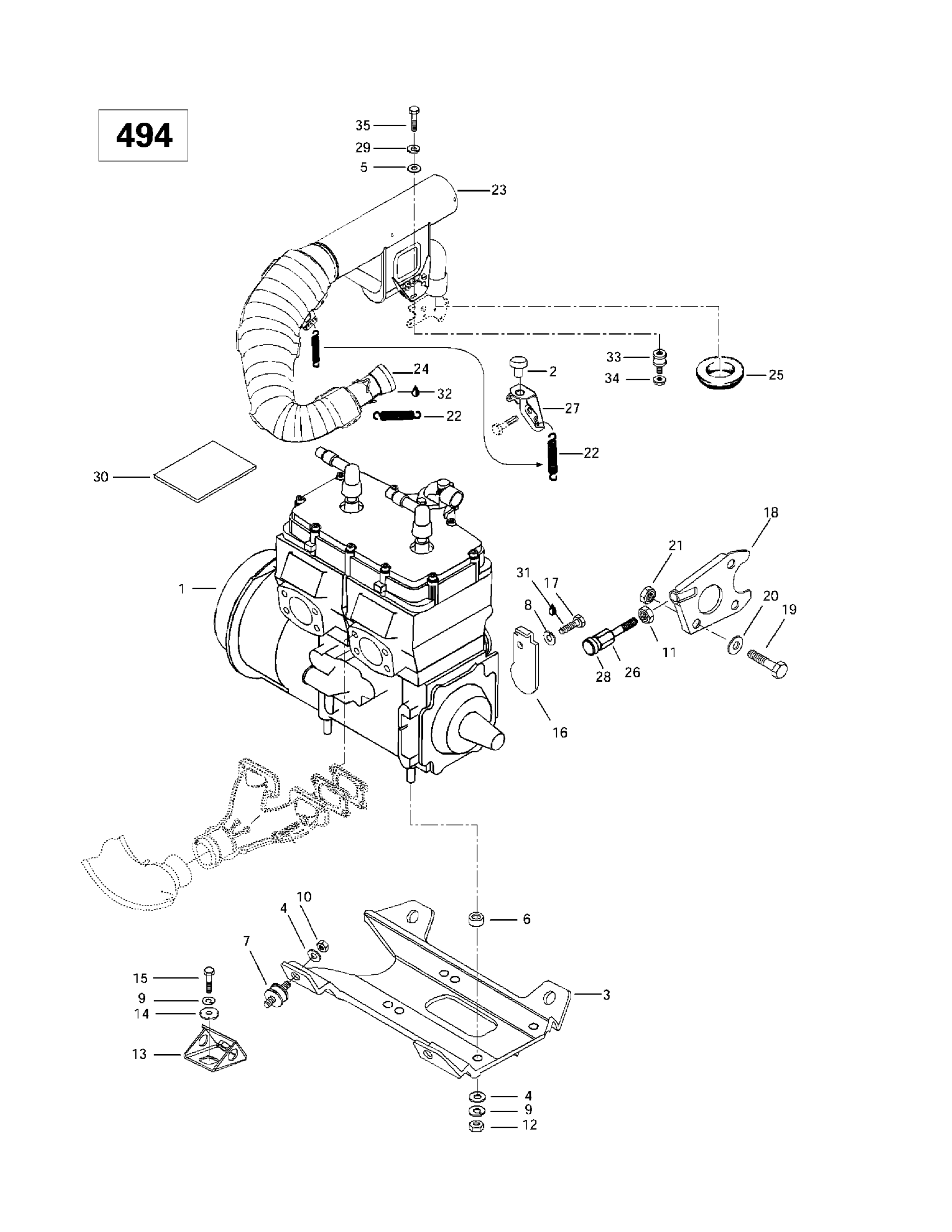

Ski-Doo Grand Touring 500/583, 1997 Engine Support And Muffler (494) Diagram

#

Description
Price

1

<<494>> Engine | Formula 500 Deluxe.

400408200

Unavailable

2

Rubber Bumber

514048200

Unavailable

3

Engine Support

512054400

Unavailable

4

Flat Washer 10 mm

234001410

$0.98

5

Flat Washer 8 mm

234082410

$1.11

6

Spacer

503128100

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Lock Washer M6, Black

234161471

$0.52

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.68

11

Nut Hexagonal RH.

232026414

$1.48

12

Hex. Nut M10 X 1.5

232006414

$1.11

13

Engine Support

512050900

Unavailable

14

Lock Washer

512056700

$3.11

15

Hex. Screw M10 X 25

207102544

$1.11

16

Stopper Plate

512052900

Unavailable

17

Hex. Screw M6 X 16

207161644

$0.61

18

Support Plate

512055600

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.74

20

Flat Washer 8 mm

234081410

$0.69

21

Hex. Elastic Stop Nut M8

232581414

$0.47

22

Spring

415107100

$6.20

23

Muffler | Includes 23 - 26.

514048400

Unavailable

24

FEMALE BALL JOINT - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

420879991

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

27

Muffler Support

514048600

Unavailable

28

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

29

Lock Washer 8 mm

234181401

$0.89

30

Reflection Sheet | Formula DLX 500 F.

415064900

Unavailable

31

Loctite 271, 10 ml

293800005

$20.77

32

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

33

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

$1.14

35

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable
