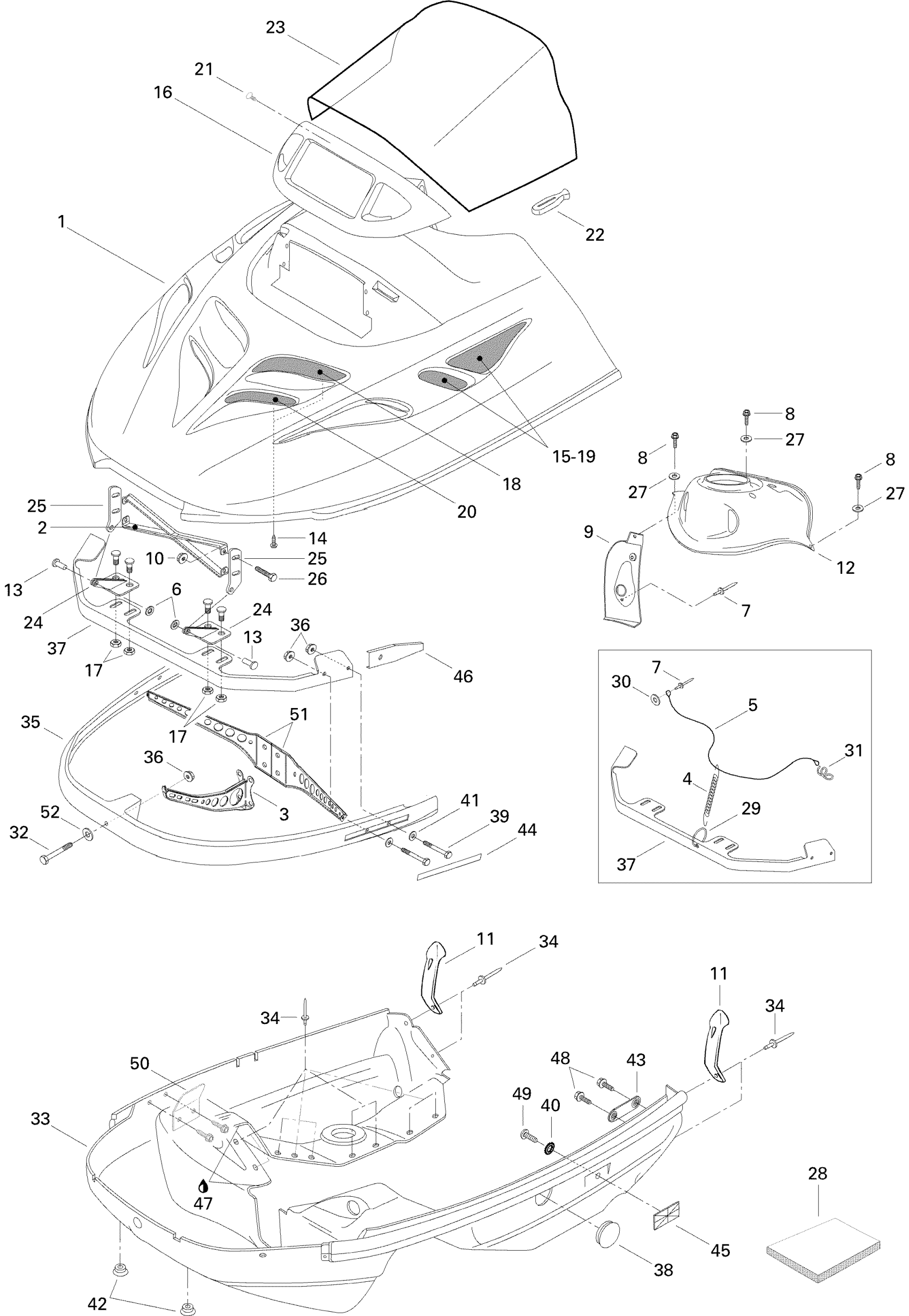

Ski-Doo Grand Touring 500, 1996 Cab And Console 500 Diagram

#

Description
Price

1

Cab (Ocean Green)

572077125

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Front Weld Support

517281100

Unavailable

4

Spring

414763300

Unavailable

5

Cab Retainer Cable

415007300

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16"

390406500

$0.70

8

Hex. Forming Screw M5 X 16

210251650

$0.92

9

Dash-Handle | Formula DLX 500 LC.

572052100

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.66

11

Hood Latch

570027100

$9.46

12

Dash-Switch

572052700

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.40

16

Lamp Moulding

572079200

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

RH Upper Grill | Formula S.

517277000

Unavailable

18

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Front Grill | Formula S.

517265800

Unavailable

20

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

21

Black, Dart

414644300

$0.78

22

Windshield Latch

570023800

$3.58

23

High Windshield

414887200

Unavailable

24

Lower Hinge

517261000

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

27

Washer | DS 650 X

391301600

$0.46

28

Acoustic Foam

414632400

Unavailable

28

Acoustic Foam

414631900

Unavailable

29

Ring

414192100

Unavailable

30

Washer

517124300

$0.16

31

Bracket

517262800

Unavailable

32

Hex. Screw M6 X 45

207064544

$1.96

33

Bottom Pan (black)

572076200

Unavailable

34

Pop Rivet 3/16"

390906800

$0.85

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Painted Bracket Hinge

517265100

Unavailable

38

Bottom Pan Cap

570277300

Unavailable

39

Hex. Flange Screw M6 X 35

207063544

$1.31

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$24.60

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Support

517278700

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Hood-Guide

518312500

Unavailable

51

Support LH

517268000

Unavailable

51

Support RH

517268100

Unavailable

52

Flat Washer

224061201

$1.11
