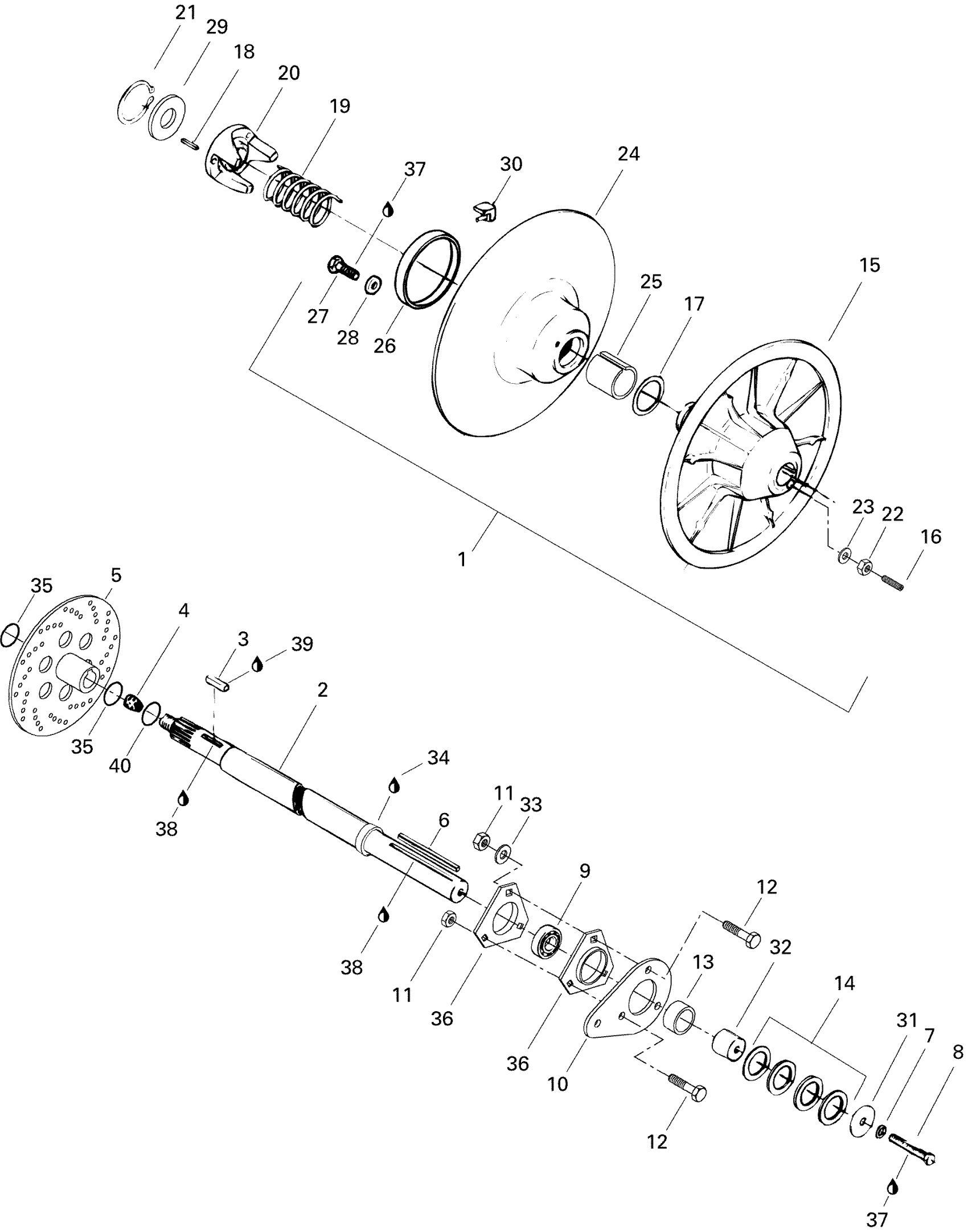

Ski-Doo Grand Touring 500, 1996 Driven Pulley 500 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Countershaft | Formula S.

504098400

Unavailable

3

KEY - Call your local BRP dealership

507021300

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

WELDED DISK - Call your local BRP dealership

507029000

Unavailable

6

Key

414581300

Unavailable

7

Lock Washer 8 mm

234181401

Unavailable

8

Hex. Screw M8 x 65

207086544

Unavailable

9

BALL BEARING - Call your local BRP dealership This part replaces 504152072.

415129552

Unavailable

10

Spacer

501022300

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

Unavailable

12

Allen Screw M8 x 25

732601156

Unavailable

13

Shim

504128300

Unavailable

14

SHIM - Call your local BRP dealership

504108200

Unavailable

15

Fixed Flange

504141600

Unavailable

16

Allen Screw M6 x 30

223563065

Unavailable

17

Thrust Washer

504091500

Unavailable

18

Key

414820800

Unavailable

19

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

20

Cam 44 Deg

504096000

Unavailable

21

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

22

Hex. Nut M6

232061414

$0.44

23

WASHER - Call your local BRP dealership

420245370

Unavailable

24

Sliding Pulley | Includes 24 to 31

504099900

Unavailable

25

BUSHING - Call your local BRP dealership

415011200

Unavailable

25

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

26

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

27

SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership

732600022

Unavailable

28

Flat Washer

399910000

Unavailable

29

Washer

504091400

Unavailable

30

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

31

WASHER - Call your local BRP dealership

517078700

Unavailable

32

Counter Shaft Extension

504091600

Unavailable

33

Flat Washer 8 mm

234081410

Unavailable

34

Loctite 243, 10 ml

293800060

$20.77

35

O'RING - Call your local BRP dealership

414928900

$8.43

36

FLANGE - Call your local BRP dealership

501025000

Unavailable

37

Loctite 271, 10 ml

293800005

Unavailable

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Circlip

371910000

Unavailable
