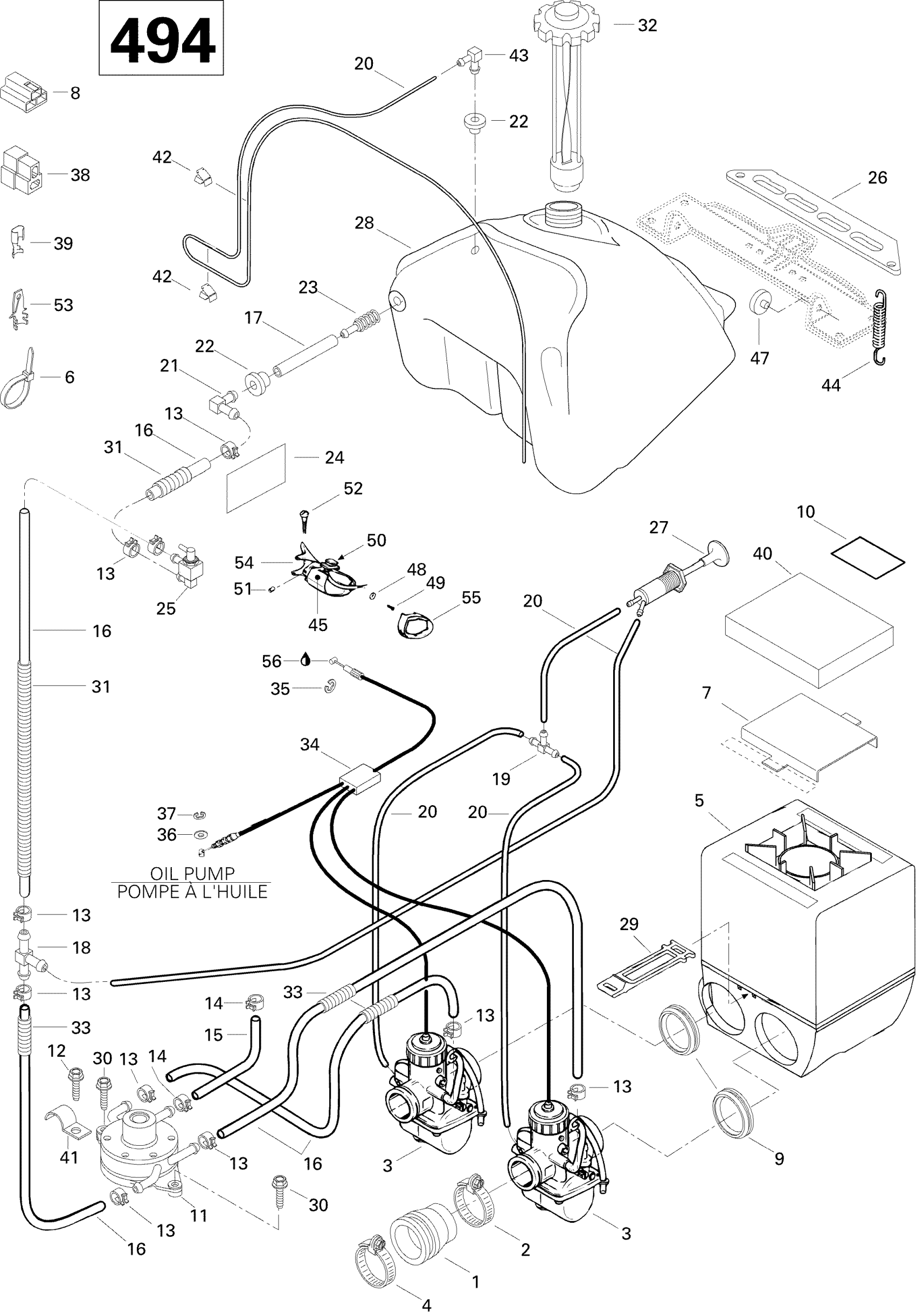

Ski-Doo Grand Touring 500, 1996 Fuel System 500 Diagram

#

Description
Price

1

Adaptor Caburetor (38 mm)

570048100

Unavailable

2

COLLAR - Call your local BRP dealership

414532700

Unavailable

3

VM 38-311 Carburetor | Includes 1 to 31

403123900

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass‘y

580638600

Unavailable

6

Tie-Rap 180 mm

414115200

$0.09

7

Grill Intake

517283900

Unavailable

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

Intake Adaptor VM 38

570048900

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump

403900900

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.22

13

Spring Clamp

414554800

$0.83

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

Unavailable

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Elbow Male Connector

414580600

$3.50

22

Grommet

709200285

$8.38

23

Fuel Filter

414865700

$8.39

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

Unavailable

28

Fuel Tank

571008700

Unavailable

29

LATCH - Call your local BRP dealership

570069700

Unavailable

30

Hexagonal Head Screw

210262050

$1.74

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Fuel Tank Cap

572161200

Unavailable

33

Was 409901800 Tubing (13 mm)

219704400

Unavailable

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

35

Circlip

414274500

Unavailable

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Exterior Foam

415016300

Unavailable

41

Open Clamp

414176000

$1.86

42

Clip

414227300

$1.45

43

Male Connector

414814100

$2.18

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

46

Tubing Helical | Formula 500. Formula 500 Deluxe.

410904000

Unavailable

47

Grommet | Europe

707800347

Unavailable

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

$3.69

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

51

Socket Set Screw M8 X 10

414440800

$4.00

52

Flange Screw

732601143

$4.02

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512059348

Unavailable

55

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

56

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable
