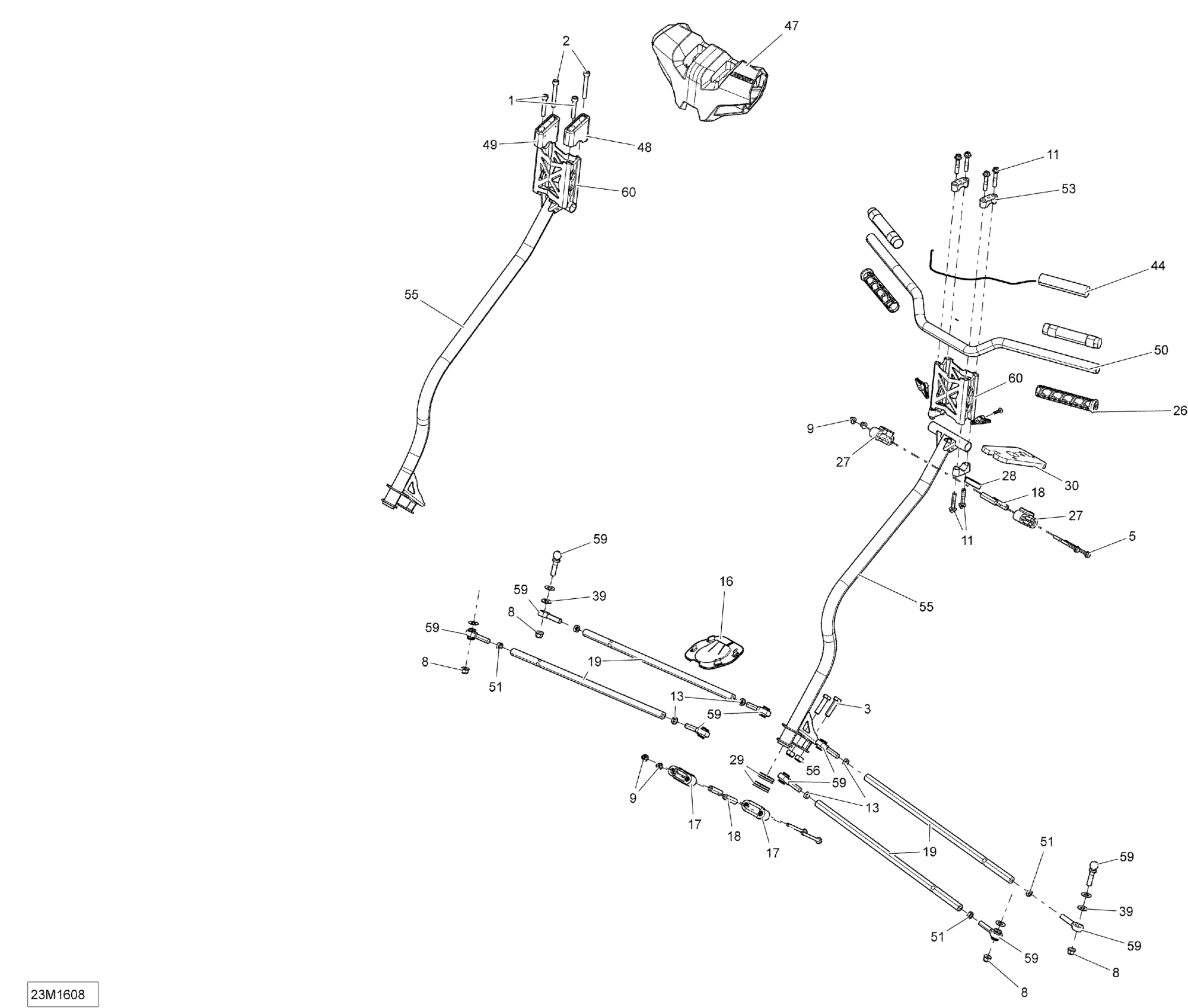

Ski-Doo GRAND TOURING - 2-STROKE, 2016 Steering Diagram

#

Description
Price

1

Socket Head Screw M8 X 45

205084560

$2.81

2

Socket Head Screw M8 X 60

205086060

$3.38

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

11

Hex. Flange Screw M8 X 40

250000352

$3.26

13

LH Threaded Hex. Jam Nut M10

250100016

$0.72

16

Plate

506152163

$10.23

17

Lower Half-Housing

506152217

$5.57

18

Housing Bushing

506152297

$10.23

19

Tie-Rod Ass'y

506152496

$59.97

22

Insulant

506153178

$10.23

26

Grip

506152501

$10.18

27

Upper Half-Housing

506152508

$7.40

28

Upper Anti-Vibration Gasket

506152509

$4.52

29

Lower Vibration Ring

506152518

$4.52

39

Washer

506152582

$4.42

44

HEATED FILM - Call your local BRP dealership

506152681

Unavailable

47

STEERING PAD - Call your local BRP dealership

506152721

Unavailable

48

LH HANDLEBAR SUPPORT - Call your local BRP dealership

506152729

Unavailable

49

RH HANDLEBAR SUPPORT - Call your local BRP dealership

506152730

Unavailable

50

BLACK HANDLE BAR - Call your local BRP dealership

506152861

Unavailable

51

RH Threaded Hex. Jam Nut M10

732610010

$0.72

53

Steering Support | Includes 40 to 40a

506152751

$10.09

53

Steering Support | Model-Extreme

548873704

$12.69

55

Steering Column

506152962

$189.20

56

Elastic Locking Nut M10

233601466

$1.74

59

LH Thread Ball Joint

506152081

$39.97

59

RH Threaded Ball Joint

506152684

$42.28

60

HANDLEBAR EXTENSION 115 - Call your local BRP dealership

506152759

$73.82
