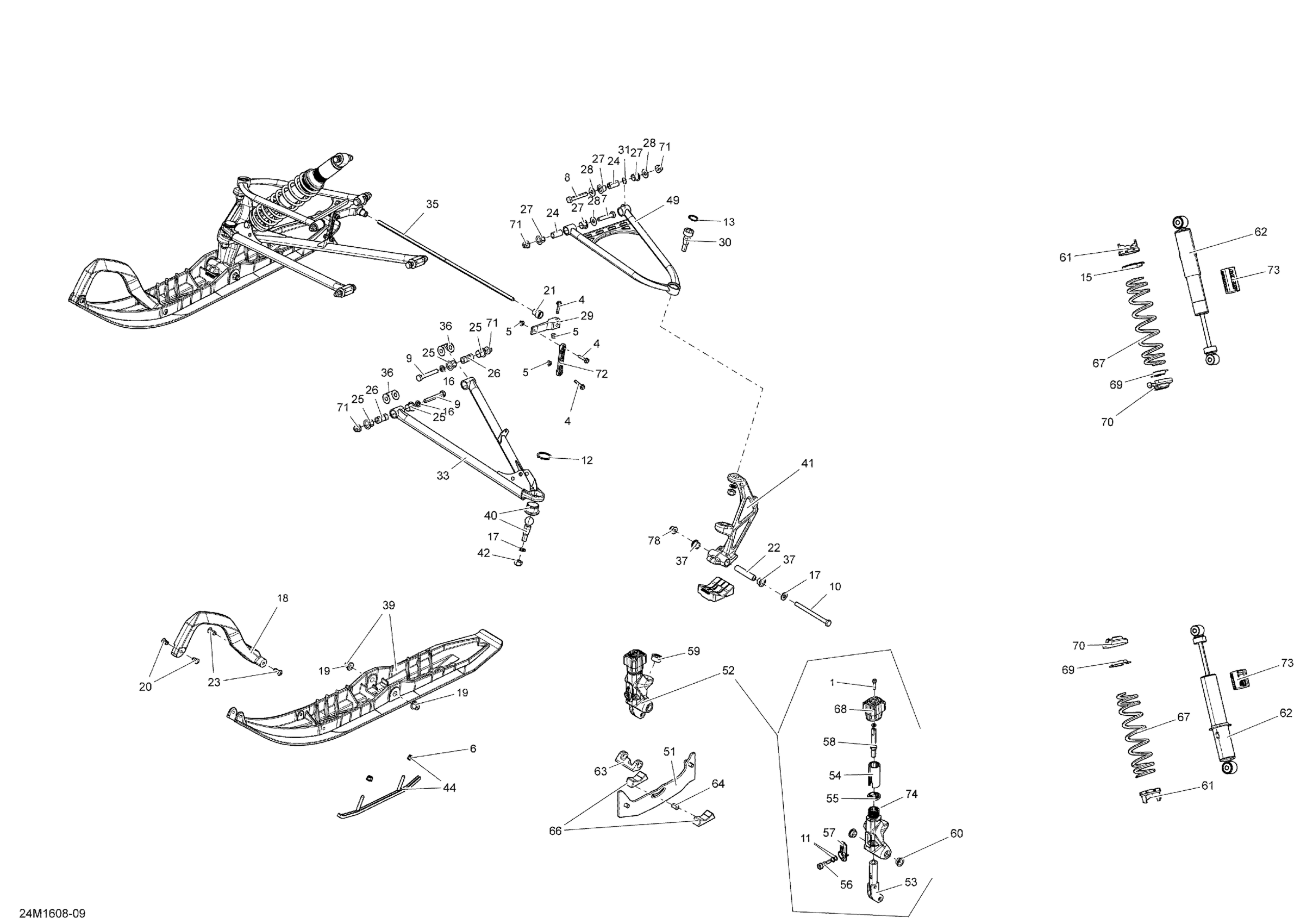

Ski-Doo GRAND TOURING - 2-STROKE, 2016 Front Suspension And Ski Diagram

#

Description
Price

1

Socket Head Screw M6 X 25

250000925

$1.70

2

Hex Screw M10 X 1.5 X 55

207005554

$6.18

3

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

4

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

5

Hex. Flange Elastic Nut M6

233261466

$1.66

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Screw Hex. M10 X 50

250001022

$1.42

8

Screw Hex. M10 X 60

250001023

$1.74

9

Screw Hex. M10 X 70

250001024

$1.74

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

O-Ring

293300013

$5.69

12

Circlip

293370035

$2.55

13

Circlip

293370070

$7.02

15

Spring Guide

503187500

$7.37

16

Washer

503189564

$0.72

17

Washer

503192491

$4.38

18

Black, Handle

505070963

$35.35

19

Ski Bushing

505071781

$15.35

20

Retainer 17mm long

505071812

$4.43

21

Bushing

505072445

$5.71

22

Spacer

506133300

$19.97

23

Retainer 23mm Long

505072133

$5.03

24

Sleeve

505072143

$8.62

25

Bushing

505072208

$3.14

26

Sleeve

505072209

$14.38

27

Bushing

505072250

$3.14

28

Washer

505072392

$4.65

29

Stabilisator Lever

505072446

$45.99

30

Upper Ball Joint

505072913

$69.97

31

O-Ring

505072448

Unavailable

33

LH Lower Arm 42", Black Epoxy

505073420

$193.82

33

Black, LH Lower Arm

505072665

$193.82

33

RH Lower Arm 42", Black Epoxy

505073426

$193.82

33

Black, RH Lower Arm

505072664

$193.82

35

Stabilisator

505072444

$65.99

36

Wear Plate

505072634

$4.45

37

Leg Bushing

505072690

Unavailable

39

Pilot SL Ski Ass'y

505072443

$134.58

40

Ball Joint

505073636

$49.97

41

Black LH Ski Leg

505073807

$236.89

41

Black RH Ski Leg

505073808

$236.89

42

Hex Elastic Nut M12 X 1.25

232521464

$1.74

44

Round Carbide Runner

860201043

$144.58

49

RH Upper Arm 42", Black Epoxy

505073416

$143.05

49

Black RH Upper Arm, 42"

505073463

$143.05

49

Black LH Upper Arm, 42"

505073462

$143.05

49

LH Upper Arm 42", Black Epoxy

505073412

$143.05

51

Carbide Runner Kit, Ajustable TS Ski

860201178

$249.97

52

Black LH Support | Includes 30.001 to 30.001a

505073789

$352.28

53

Tip

505073761

$72.28

54

Knob Adjuster Repair Kit

415130043

$53.05

55

Knob Adjuster Repair Kit

415130043

$53.05

56

Screw

505073767

$3.25

57

Knob Adjuster Repair Kit

415130043

$53.05

58

Shaft

505073771

$40.74

59

Black, Rubber Grommet

505073772

$8.97

60

Bushing

505073773

$23.82

61

Adjustment Cam

505073625

$12.18

62

Front Shock

505073235

$238.43

63

Leg Stopper

505073779

$12.65

64

Pin

505073782

$8.92

66

Ski Stopper

505073788

$12.62

67

Deep Black, Spring

505072119

$59.97

68

Knob Adjuster Repair Kit

415130043

$53.05

69

Cap

706200785

$4.42

70

Spring Stopper

706200881

$10.30

71

Hex. Flange Elastic Nut M10

250100165

$0.70

72

Sway Bar Double Joint Link

505072204

$19.20

73

Shock Decal "HPG" | Europe Models

516005533

$12.65

74

Spring

505073785

$8.68
