1983 Suzuki GR650 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

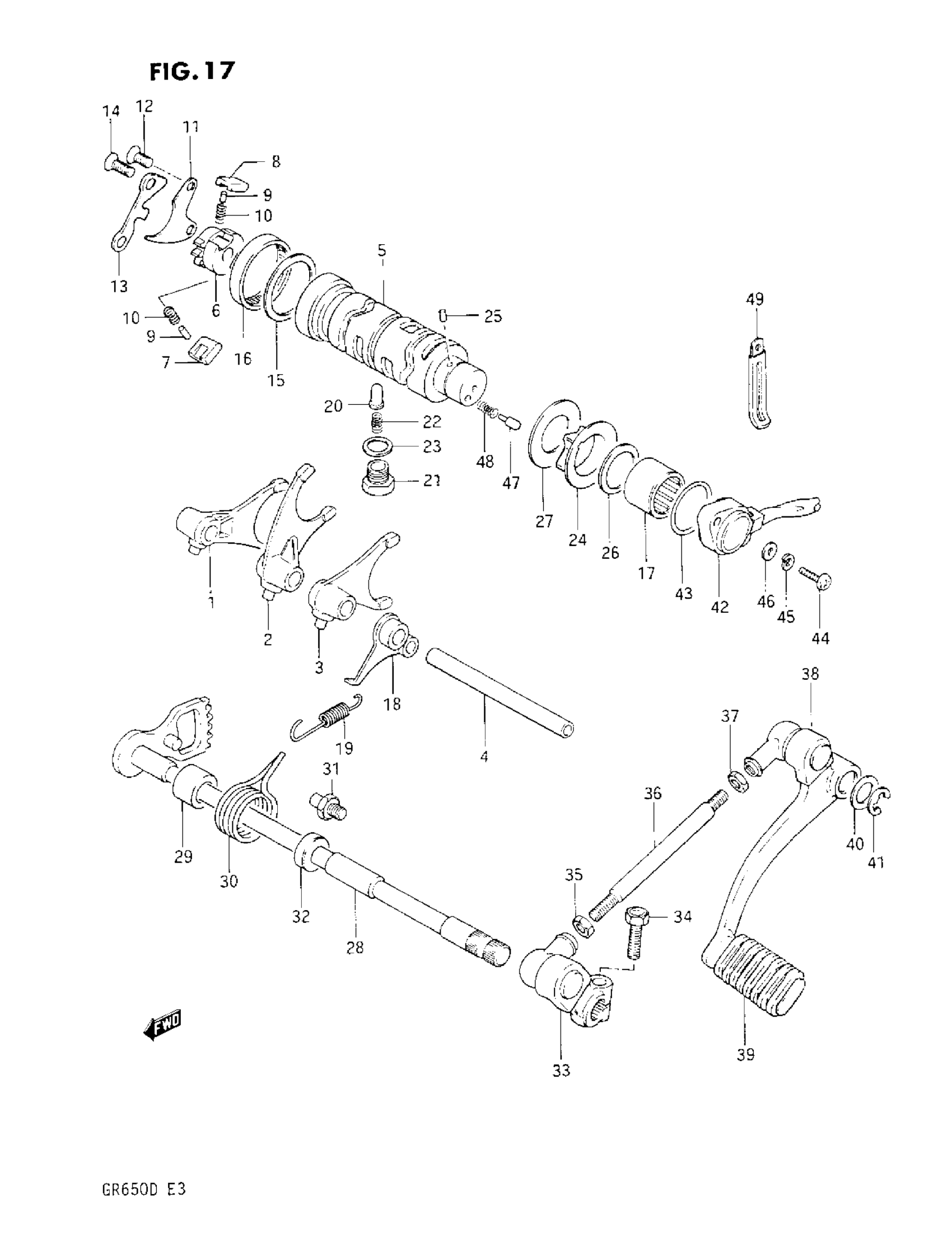

1983 Suzuki GR650 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1

25211-15500

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 25221-15500.

25221-15501

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-15500

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 25411-15501.

25411-15510

1
Out of stock

5

CAM, GEAR SHIFTING

25310-15500

1
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31300.

25322-31310

1
Out of stock

9

PIN

09261-05003

2
Out of stock

10

SPRING

09440-04003

2

$1.76

In stock

11

NO DESCRIPTION AVAILABLE This part replaces 25331-15500.

25331-15501

1
Out of stock

12

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

13

GUIDE, CAM

25341-09300

1
Out of stock

14

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

15

WASHER

09160-40006

1
Out of stock

16

BEARING, NO.1

09263-43001

1

$36.05

In stock

17

BEARING, NO.2

09263-25018

1

$20.72

In stock

18

STOPPER, CAM

25350-15500

1
Out of stock

19

SPRING

09443-08034

1
Out of stock

21

HOLDER, STOPPER

25354-30000

1

$10.35

In stock

22

SPRING

09440-06027

1
Out of stock

23

GASKET

09168-14004

1

$1.96

In stock

24

PLATE, STOPPER

25381-04700

1
Out of stock

25

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

26

WASHER

08211-25322

1
Out of stock

27

WASHER

09167-30007

1
Out of stock

28

SHAFT, GEAR SHIFTING

25510-15500

1
Out of stock

29

SPACER

09180-12068

1

$4.03

In stock

30

SPRING

09444-26017

1

$5.00

In stock

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

33

ARM

25520-15501

1
Out of stock

34

1

$2.48

In stock

35

1

$1.82

In stock

36

1

$12.50

In stock

37

NUT, L

09140-06011

1

$1.47

In stock

38

LEVER ASS'Y, GEAR SHIFTING

25600-15501

1
Out of stock

39

COVER

25652-49300

1

$5.21

In stock

40

WASHER

09160-12011

1
Out of stock

41

CIRCLIP This part replaces 08331-31128.

08331-3112A

1
Out of stock

42

1

$113.83

In stock

44

2

$2.12

In stock

45

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

46

2

$2.33

In stock

47

CONTACT

09209-05011

1
Out of stock

48

SPRING

09440-04010

1
Out of stock

49

1

$1.86

In stock
