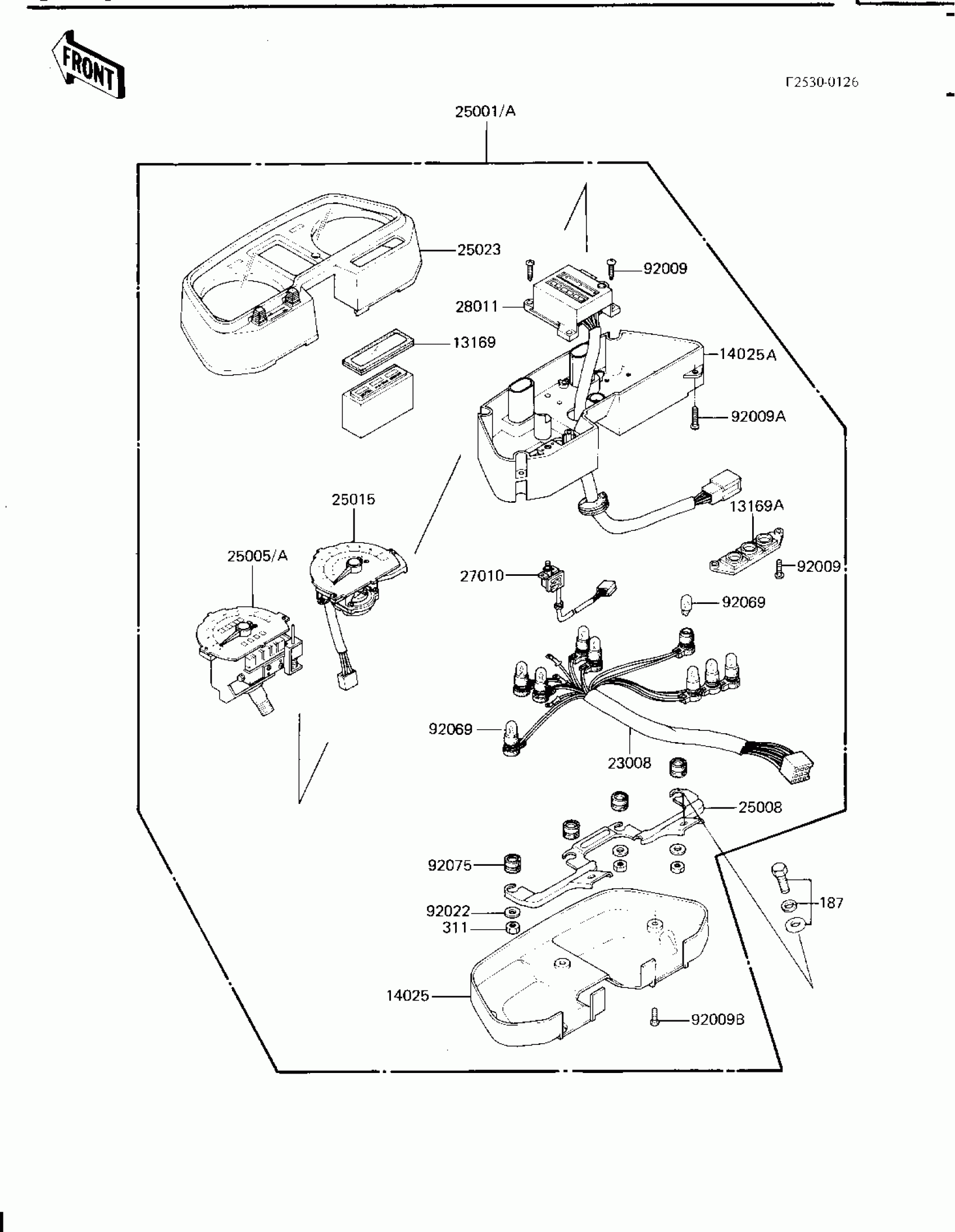

Kawasaki GPz METERS (KZ1100-B2) Diagram

#

Description
Price

13169

PLATE,PILOT BOX

13169-1508

Unavailable

13169A

PLATE,BULB SOCKET

13169-1556

Unavailable

14025

COVER,METER,LWR

14025-1473

Unavailable

14025A

COVER,METER UNIT

14025-1951

Unavailable

23008

SOCKET-ASSY,METER

23008-1149

$82.90

25001

METER-ASSY,MPH

25001-1315

$833.52

25001A

METER-ASSY,KPH (Canada)

25001-1316

Unavailable

25005

SPEEDOMETER,MPH

25005-1175

$493.22

25005A

SPEEDOMETER,KPH (Canada)

25005-1180

Unavailable

25008

BRACKET-METER

25008-1057

$43.29

25015

TACHOMETER,X1000R/MIN

25015-1232

$277.61

25023

COVER-METER CASE,UPP

25023-1124

Unavailable

27010

SWITCH,TACHO/VOLT

27010-1062

Unavailable

28011

METER,FUEL & WARNING

28011-1029

$527.75

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

$4.08

92009A

SCREW,TAPPING,4X20

92009-1141

$3.10

92009B

SCREW,TAPPING,4X12,BLACK

92009-1142

$3.69

92022

WASHER,5.2X16X1.2

92022-263

$1.41

92069

BULB,12V 3.4W,T10

92069-1007

$3.97

92075

DAMPER,METER BRACKET

92075-1385

$4.51

187

BOLT 6X14

187B0614

Unavailable

311

NUT-HEX

311B0500

$0.51
