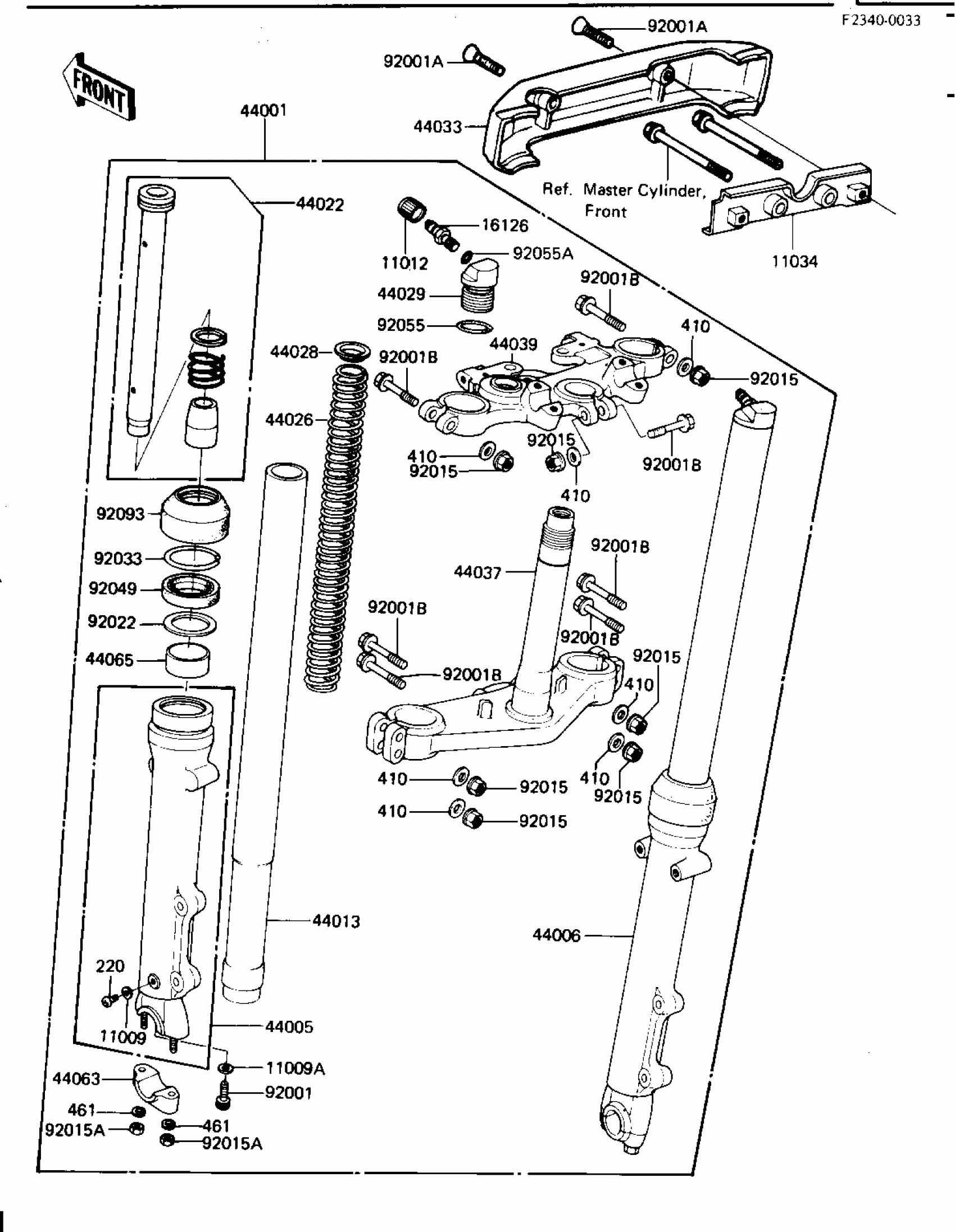

Kawasaki GPz FRONT FORK (KZ1100-B1) Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-002

$4.12

11009A

GASKET

44045-057

$3.86

11012

CAP,AIR VALVE

11012-1241

Unavailable

11034

BRACKET,FORK COVER

11034-1842

Unavailable

16126

VALVE,AIR

16126-1052

$32.11

44001

FORK-FRONT

44001-1283

$985.47

44005

TUBE,LH,FORK OUTER

44005-1072

$315.81

44006

TUBE,RH,FORK OUTER

44006-1072

$253.72

44013

PIPE-FORK INNER

44013-1066

$393.01

44022

CYLINDER-FORK

44022-1062

$74.42

44026

SPRING-FRONT FORK

44026-1115

$42.20

44028

GUIDE-FORK SPRING

44028-1004

Unavailable

44029

SEAT-FORK SPRING

44029-1021

$116.39

44033

COVER,FORK

44033-1053

Unavailable

44037

HOLDER-FORK UNDER

44037-1072

$470.70

44039

HOLDER-FORK UPPER

44039-1045

$258.61

44063

HOLDER-FRONT AXLE

44063-1006

$44.66

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$23.54

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

92001A

SCREW-CSK-RD-CROS

222C0518

$4.15

92001B

BOLT,FLANGED,8X57

92001-1358

Unavailable

92015

NUT,FLANGED,8MM

92015-1022

$0.53

92015A

NUT,LOCK,8MM

92015-1124

$4.30

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92033

RING-SNAP,FORK

92033-1047

$5.11

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$20.52

92055

RING-O,FORK TOP CAP

92055-1051

$4.85

92055A

"0" RING,AIR VALVE

92055-1094

$1.14

92093

SEAL

92093-1051

$43.42

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable
