1985 Kawasaki GPZ 750 Turbo Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

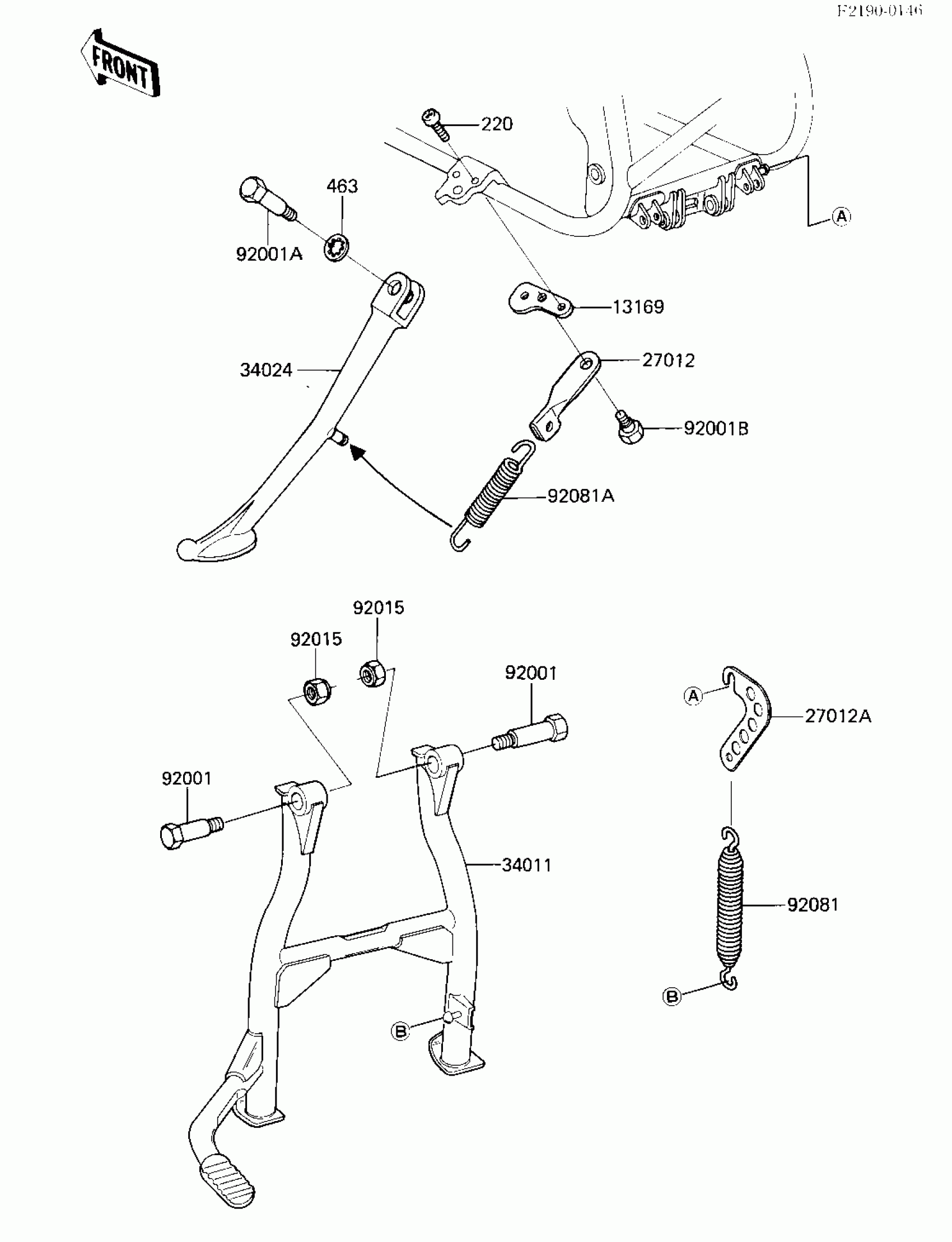

1985 Kawasaki GPZ 750 Turbo Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,SIDE STAND

13169-1604

1
Out of stock

27012

HOOK,SIDE STAND SWITC

27012-1301

1
Out of stock

27012A

HOOK,CENTER STAND

27012-1303

1
Out of stock

34011

STAND-CENTER

34011-1101

1
Out of stock

34024

STAND-SIDE

34024-1155

1
Out of stock

92001

BOLT,CENTER STAND

92001-1214

1
Out of stock

92001A

BOLT,SIDE STAND

92003-157

1
Out of stock

92001B

BOLT,SIDE STAND,6MM

92001-1814

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92081

SPRING,STAND,CNT

92081-1145

1
Out of stock

92081A

SPRING,STAND

92081-1586

1
Out of stock

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

1
Out of stock

463

WASHER LOCK 12MM

463H1200

1
Out of stock
