1985 Kawasaki GPZ 750 Turbo Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

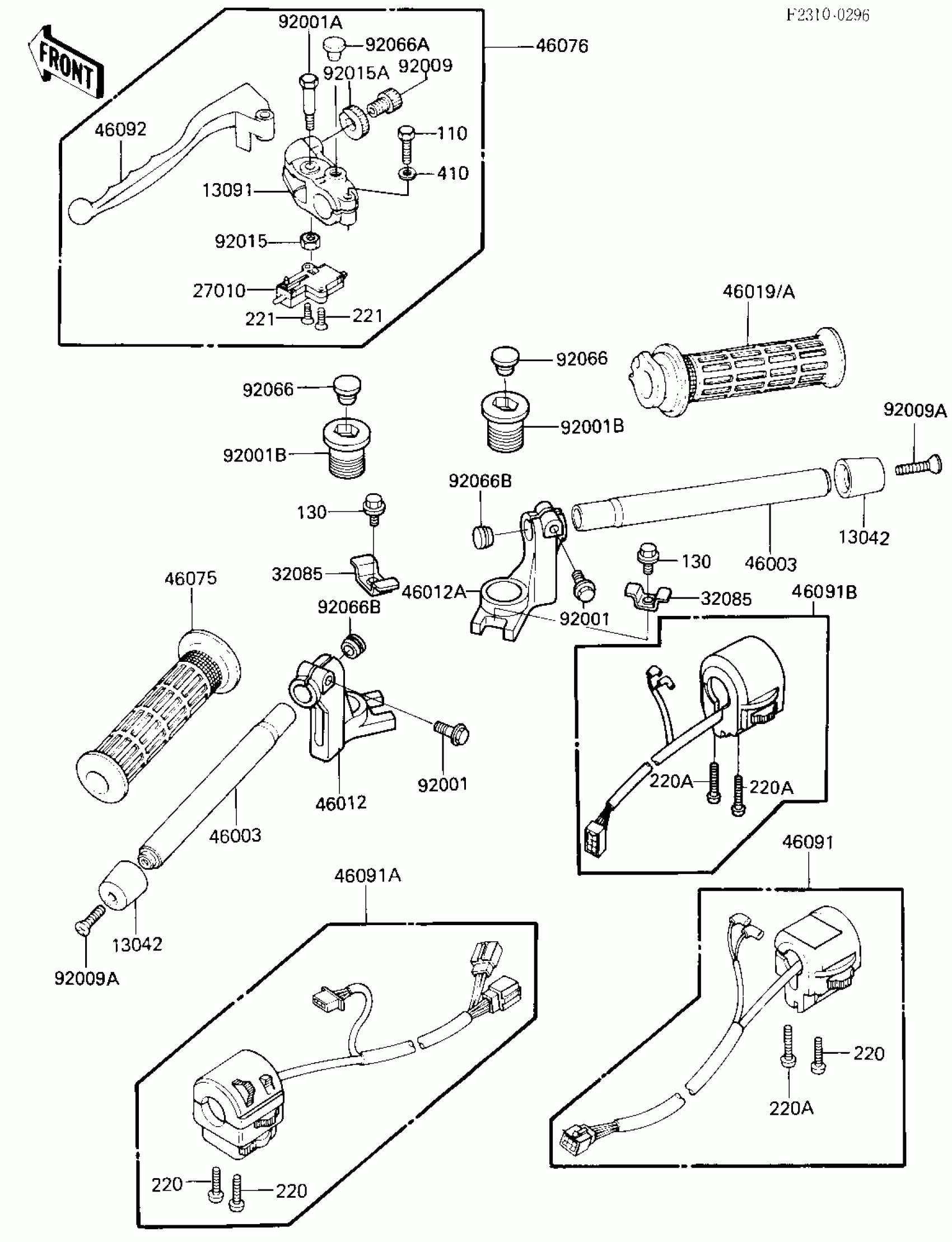

1985 Kawasaki GPZ 750 Turbo Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-1005

1
Out of stock

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1185

1
Out of stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1
Out of stock

32085

STOPPER

32085-1092

1
Out of stock

46003

HANDLE

46003-1135

1
Out of stock

46012

HOLDER-HANDLE,LH

46012-1103

1
Out of stock

46012A

HOLDER-HANDLE,RH

46012-1104

1
Out of stock

46019A

GRIP-ASSY,THROTTLE

46019-1059

1
Out of stock

46075

GRIP,LH

46075-1028

1
Out of stock

46076

LEVER-ASSY-GRIP,LH

46076-1041

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,

46091-1428

1
Out of stock

46091B

HOUSING-ASSY-CONTROL

46091-1350

1
Out of stock

46092

LEVER-GRIP,CLUTCH,BLACK

46092-1050

1
Out of stock

92001

BOLT,FLANGED,8X28,BLACK

92001-1508

1
Out of stock

92001A

BOLT,CLUTCH LEVER,BLACK

92001-1548

1
Out of stock

92001B

BOLT,HANDLE HOLDER,BL

92001-1912

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92009A

SCREW,8X45

92009-1257

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92066

PLUG,FRAME

92066-1018

1
Out of stock

92066A

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92066B

PLUG,HANDLE

92066-1124

1
Out of stock

110

BOLT,6X22,BLACK

110C0622

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

220

SCREW-PAN-CROS

220B0535

1
Out of stock

220A

SCREW-PAN-CROS

220B0540

1
Out of stock

221

SCREW-CSK-CROS

221C0316

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock
