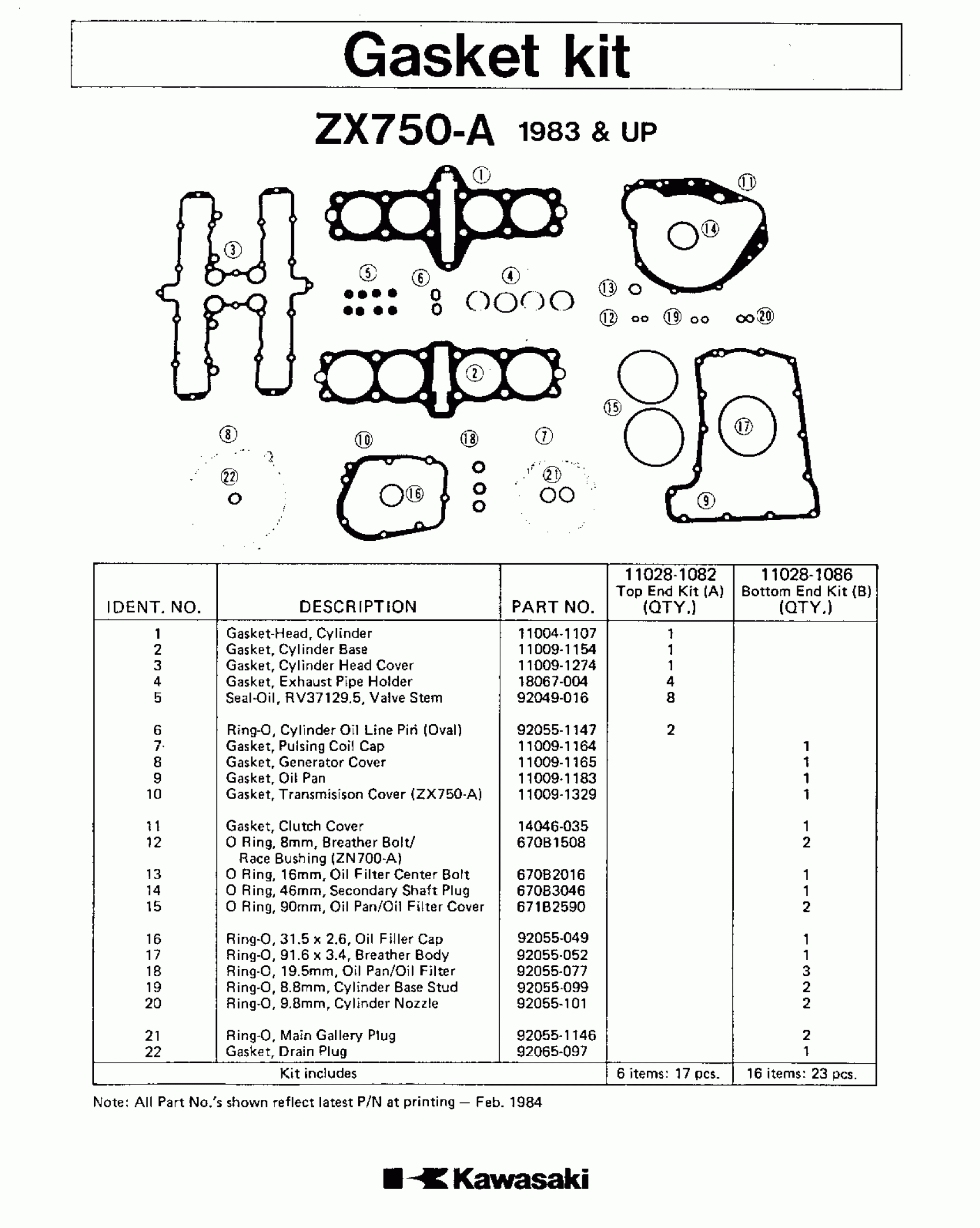

Kawasaki GPz 750 GASKET KIT Diagram

#

Description
Price

0-1

GASKET-SET,A,ZX750-A

11028-1082

Unavailable

0-2

GASKET-SET,B,ZN700-A

11028-1086

Unavailable

1

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

2

GASKET,CYLINDER BASE

11060-1144

Unavailable

3

GASKET,CYLINDER HEAD

11009-1274

Unavailable

4

GASKET,EXHAUST PIPE H

11009-1866

$6.29

5

SEAL-OIL,RV37129.5

92049-016

$13.84

6

RING-O,CYLINDER OIL LINE PIN

92055-1147

$7.52

7

GASKET,PULSING COIL CAP

11060-1053

$6.19

8

GASKET,GENERATOR COVER

11009-1987

$9.61

9

GASKET,OIL PAN

11009-1983

$31.19

10

GASKET,TRANSMISSION COVER

11009-1985

Unavailable

11

GASKET,R.H.ENG COVER

14046-035

$29.18

12

O RING,8MM

670B1508

$1.00

13

O RING,16MM

670B2016

$1.04

14

O RING,46MM

670B3046

$4.67

15

O RING,90MM

671B2590

$7.54

16

RING-O,31.5X2.6

92055-049

$3.29

17

RING-O,91.6X3.4

92055-052

$7.52

18

RING-O,19.5MM

92055-077

$4.47

19

RING-O,8.8X1.9

92055-099

$3.57

20

"O" RING,9.8MM

92055-101

$1.41

21

RING-O,20X2

92055-1146

$6.55

22

GASKET,12X22X2

92065-097

$0.66
