1997 Kawasaki GPZ 1100 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

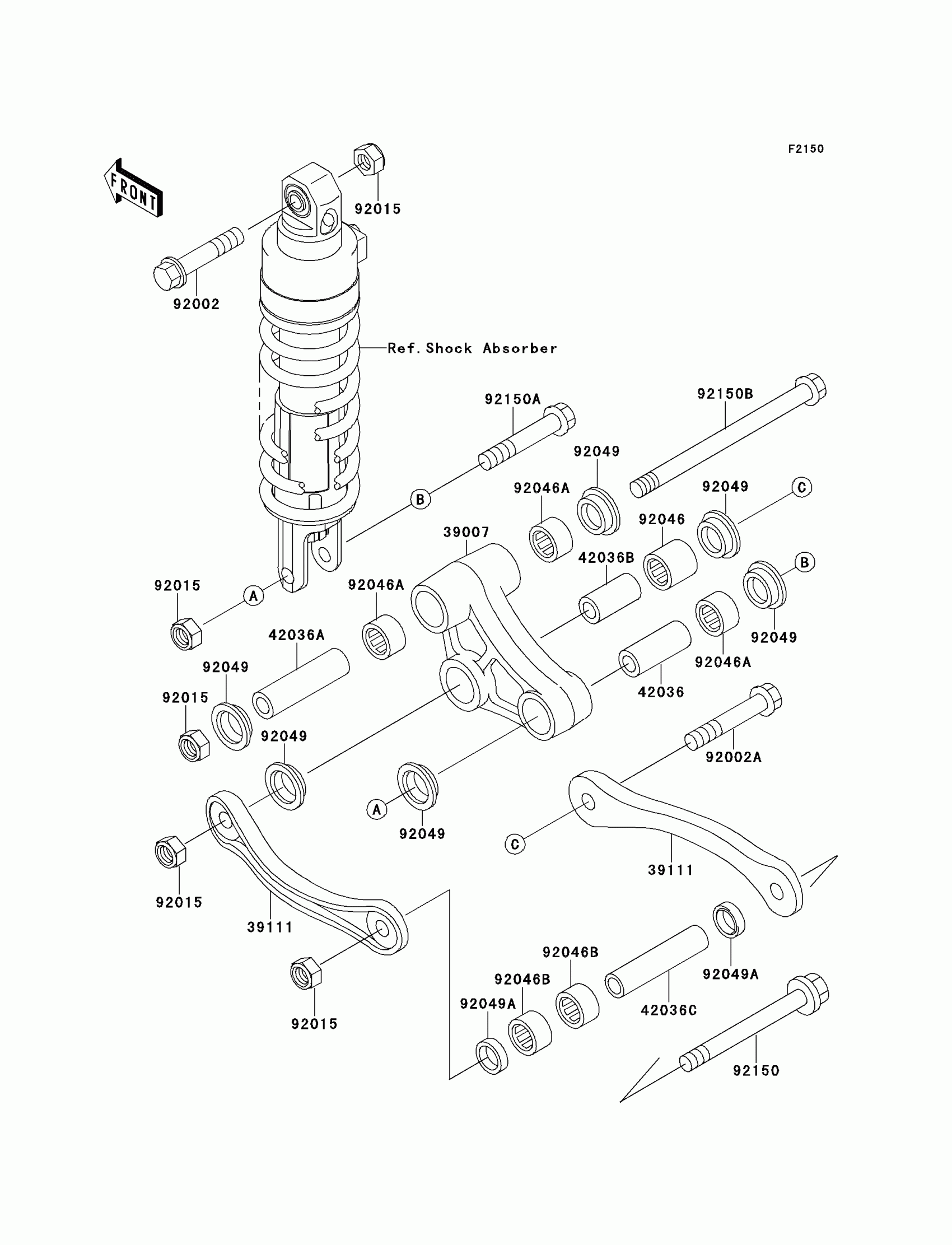

1997 Kawasaki GPZ 1100 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1238

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-1140

1
Out of stock

42036

SLEEVE,12.1X20X32

42036-1077

1
Out of stock

42036A

SLEEVE,12.1X20X70

42036-1079

1
Out of stock

42036B

SLEEVE,12.1X20X50

42036-1111

1
Out of stock

42036C

SLEEVE,12.1X18X82

42036-1231

1
Out of stock

92002

BOLT,12X55

92002-1130

1
Out of stock

92002A

BOLT,SUSPENSION ARM,12MM

92002-1785

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92046B

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92150

BOLT,FLANGED,12X110

92150-1088

1
Out of stock

92150A

BOLT,FLANGED,12X63

92150-1258

1
Out of stock

92150B

BOLT,FLANGED,12X165

92150-1931

1
Out of stock
