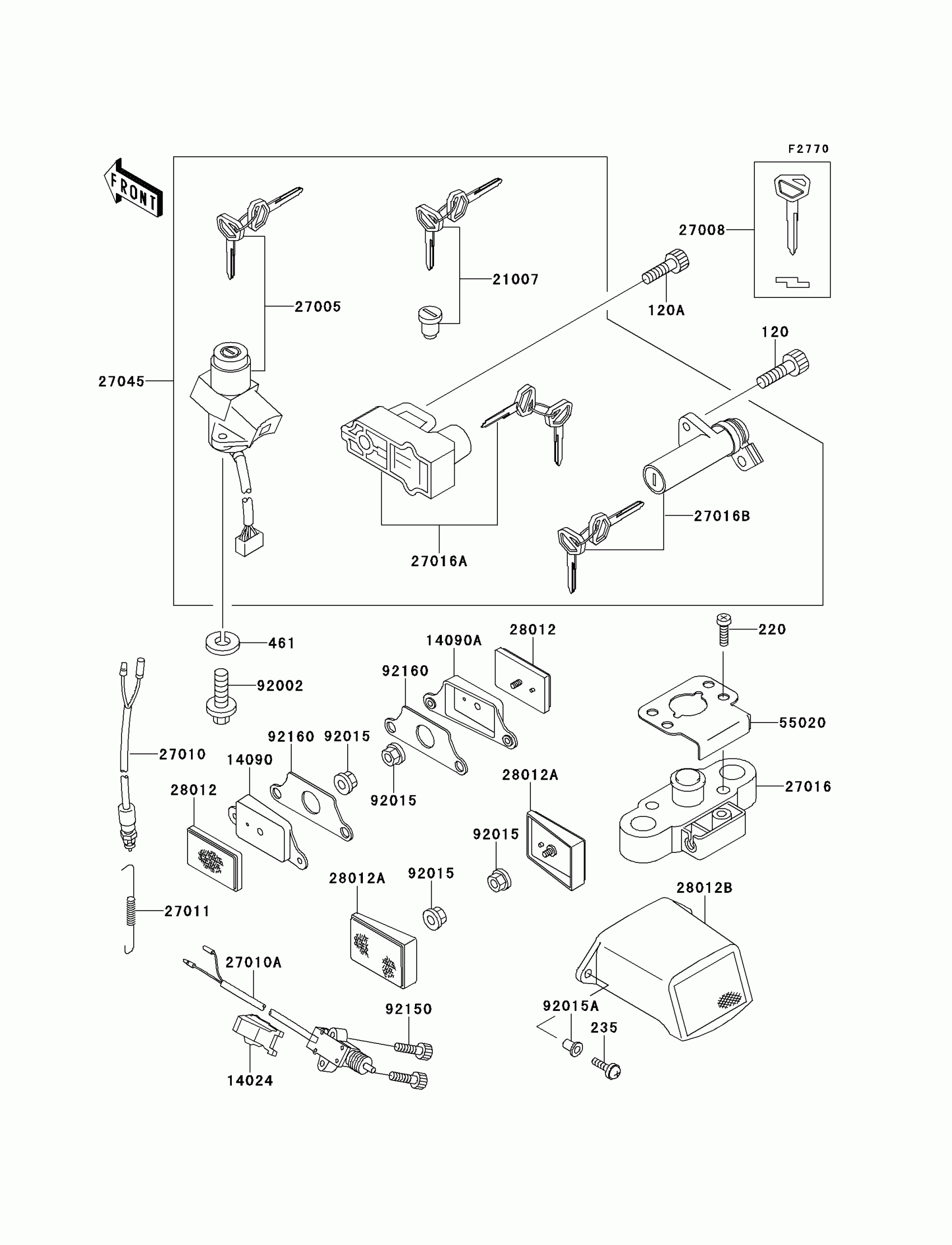

Kawasaki GPZ 1100 Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

120A

BOLT-SOCKET,6X16

120S0616

Unavailable

220

SCREW-PAN HEAD,6X30

220C0630

$1.41

235

SCREW-PAN-WP-CROS,6X20

235C0620

Unavailable

461

WASHER-SPRING

461L0600

$0.66

14024

COVER,SIDE STAND SWITCH

14024-1532

$8.88

14090

COVER,REFLECTOR,FR,LH

14090-1562

Unavailable

14090A

COVER,REFLECTOR,FR,RH

14090-1563

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5037

$94.15

27005

SWITCH-ASSY-IGNITION

27005-5101

$193.32

27008

KEY-LOCK,BLANK

27008-1173

$16.44

27010

SWITCH,BRAKE LAMP

27010-1093

$26.58

27010A

SWITCH,SIDE STAND

27010-1226

$73.52

27011

SPRING,BRAKE LAMP SWITCH

27011-011

$6.48

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$86.38

27016A

LOCK-ASSY,HELMET

27016-5203

Unavailable

27016B

LOCK-ASSY,SEAT

27016-5205

$85.59

27045

SWITCH-ASSY

27045-5012

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1056

$24.63

28012B

REFLECTOR-REFLEX,RR

28012-1066

$36.58

55020

GUARD,SEAT STRIKER

55020-1498

$17.61

92002

BOLT,TORX,6X16

92002-1333

$1.85

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT

92015-1700

$6.55

92150

BOLT,SOCKET,5X22

92150-1491

$3.03

92160

DAMPER,REFLECTOR

92160-1586

Unavailable
