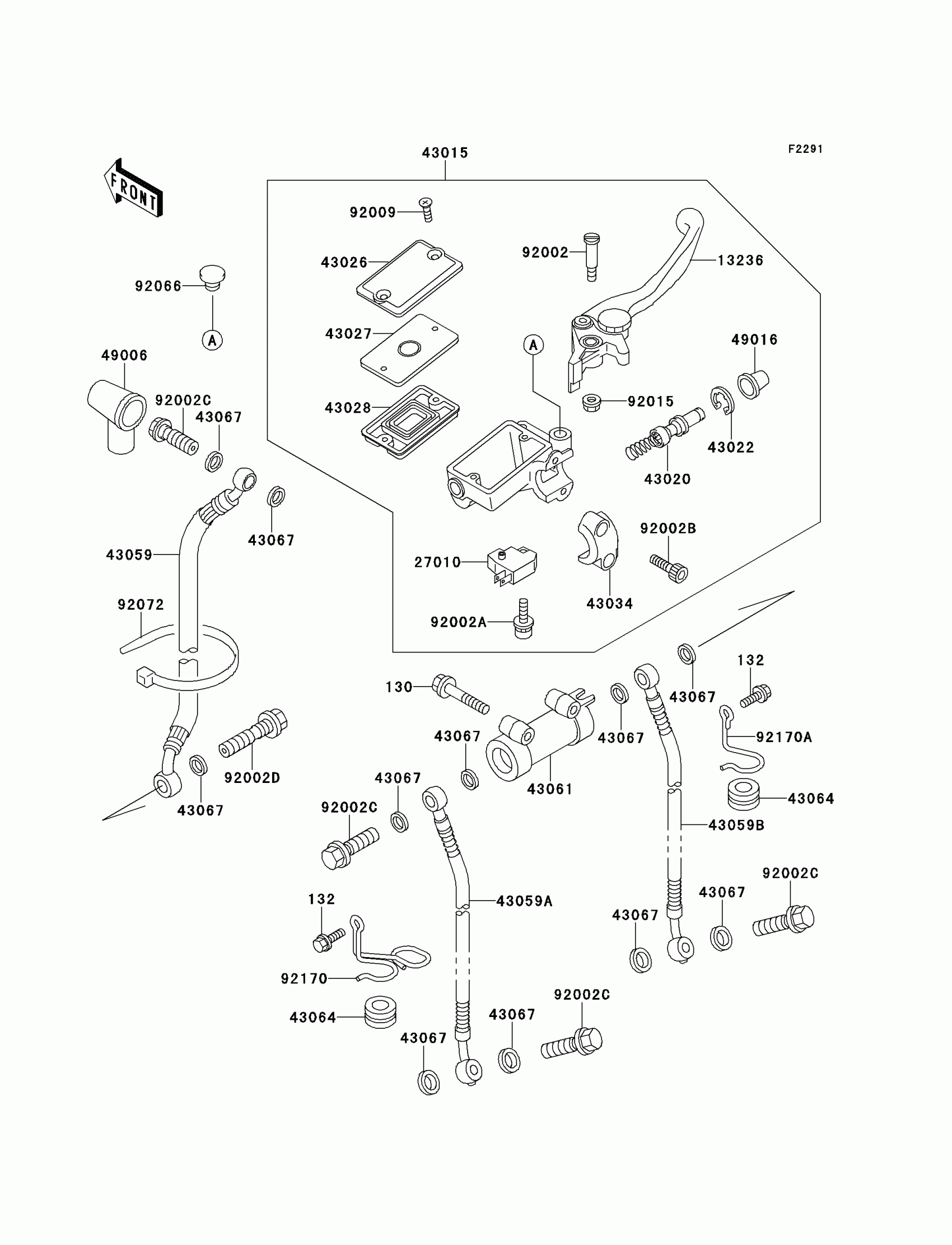

Find the part on the Front Master Cylinder diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki GPZ 1100 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X35

130J0635

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1185

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1498

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1054

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1076

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1055

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

1
Out of stock

43059

HOSE-BRAKE,FR,UPP

43059-1842

1
Out of stock

43059A

HOSE-BRAKE,FR,LWR,LH

43059-1846

1
Out of stock

43059B

HOSE-BRAKE,FR,LWR,RH

43059-1847

1
Out of stock

43061

JOINT-BRAKE

43061-1002

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

49006

BOOT,DUST

49006-1040

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

1
Out of stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002D

BOLT,OIL,L=37

92002-1909

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92072

BAND,L=365

92072-1197

1
Out of stock

92170

CLAMP,LH,HOSE&CABLE

92170-1509

1
Out of stock

92170A

CLAMP,RH,HOSE

92170-1510

1
Out of stock
