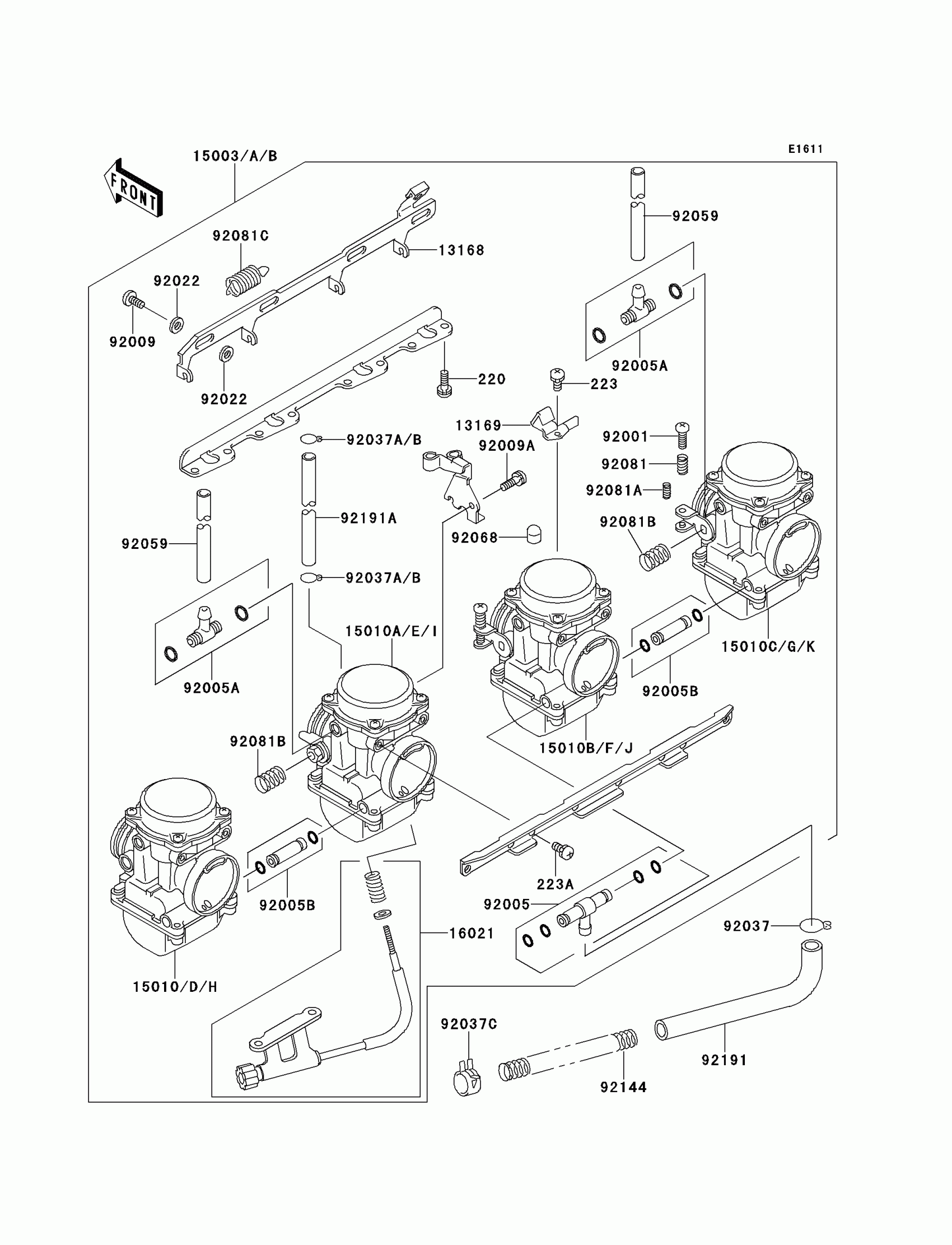

Kawasaki GPZ 1100 Carburetor Diagram

#

Description
Price

13168

LEVER,STARTER

13168-1245

$125.91

13169

PLATE,STARTER CABLE

13169-1871

$25.68

15003A

CARBURETOR-ASSY

15003-1129

$2,444.90

15010D

CARBURETOR,LH,OUTSIDE

15010-1917

Unavailable

15010E

CARBURETOR,LH,INSIDE

15010-1918

Unavailable

15010F

CARBURETOR,RH,INSIDE

15010-1919

Unavailable

15010G

CARBURETOR,RH,OUTSIDE

15010-1920

Unavailable

16021

SCREW-THROTTLE STOP

16021-1204

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92005

FITTING

92005-1288

$31.60

92005A

FITTING

92005-1306

$22.08

92005B

FITTING

92005-1310

$30.97

92009

SCREW

92009-1262

$5.25

92009A

SCREW,5X10

92009-1365

$5.61

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.67

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-1201

$3.51

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

223

SCREW-PAN-WS-CROS,4X20

223C0420

Unavailable

223A

SCREW-PAN-WS-CROS,5X10

223C0510

$3.14

92037C

CLAMP

92037-1861

$8.95

92059

TUBE,6.5X9.5X350

92059-1237

$22.39

92068

PLUG,12X25

92068-006

$3.25

92081

SPRING

92081-1620

$3.78

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.27

92081C

SPRING,STARTER LEVER

92081-1762

$22.88

92144

SPRING,FUEL TUBE

92144-1874

$6.12

92191

TUBE,FUEL

92191-1007

$10.12

92191A

TUBE

92191-1017

$8.67
