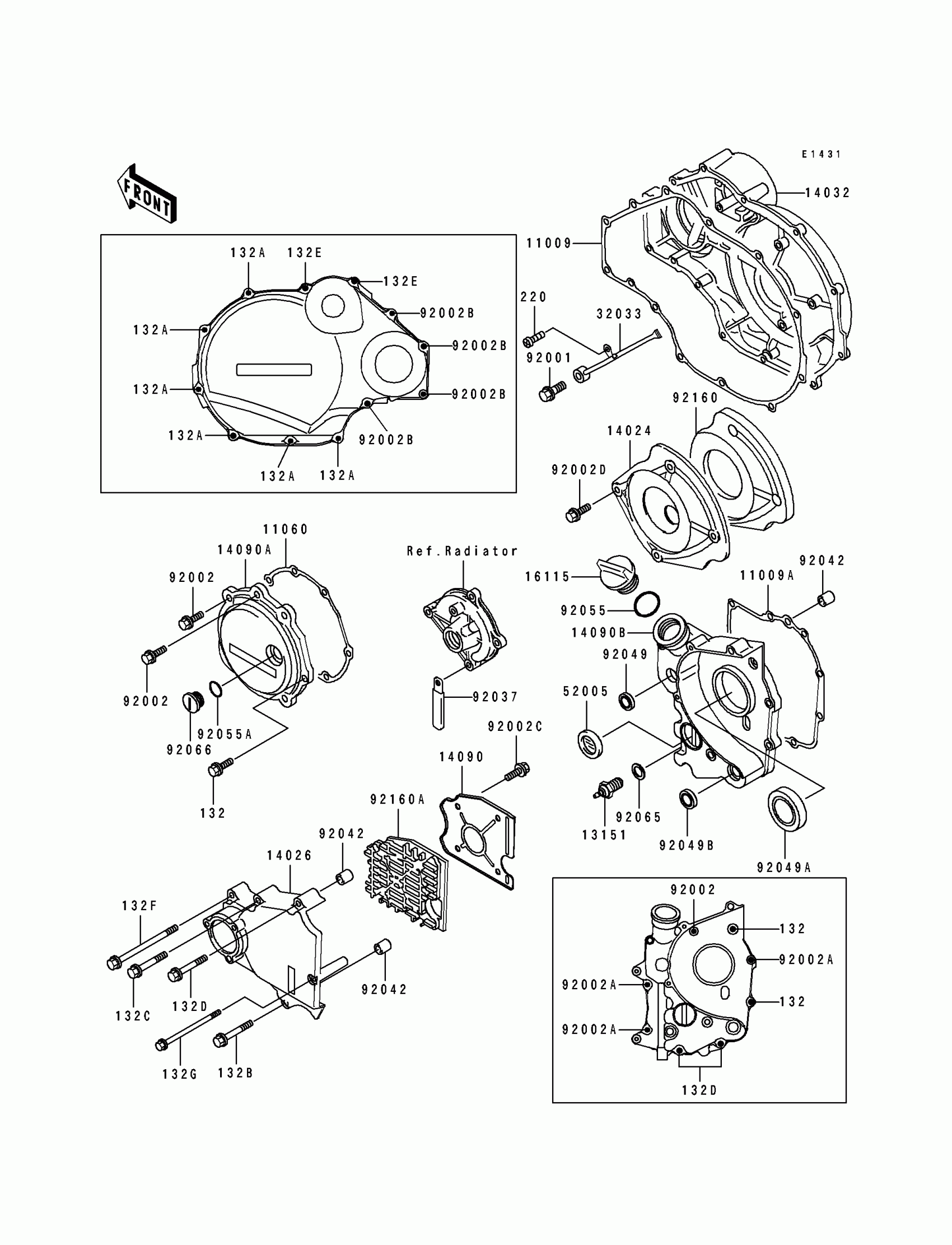

Kawasaki GPZ 1100 ABS Engine Cover(s) Diagram

#

Description
Price

11009

GASKET,CLUTCH COVER

11009-1860

Unavailable

11009A

GASKET,TRANSMISSION COVER

11009-1982

Unavailable

11060

GASKET,PULSING COVER

11060-1695

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

14024

COVER,SOUND ARRESTER

14024-1925

$16.88

14026

COVER-CHAIN

14026-1214

Unavailable

14032

COVER-CLUTCH

14032-1402

Unavailable

14090

COVER,SOUND ARRESTER

14090-1527

$34.00

14090A

COVER,PULSING

14090-1537

Unavailable

14090B

COVER,TRANSMISSION

14090-1538

Unavailable

16115

CAP-OIL FILLER

16115-1009

$10.86

32033

PIPE,CLUTCH COVER

32033-1204

$31.22

52005

GAUGE,OIL LEVEL

52005-1057

$20.45

92001

BOLT,BANJO,8X20

92001-1855

$8.44

92002

BOLT,6X20

92002-1343

$5.71

92002A

BOLT,6X25

92002-1344

Unavailable

92002B

BOLT,6X40

92002-1345

$7.58

92002C

BOLT,6X10

92002-1449

$3.68

92002D

BOLT,6X10

92002-1541

$4.27

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92049

SEAL-OIL,SD-8187

92049-1017

$7.87

92049A

SEAL-OIL,AE2343F0

92049-1070

$12.57

92049B

SEAL-OIL,TB13205

92049-1186

$6.46

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,20X2

92055-1146

$6.55

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG,COVER

92066-1163

$11.20

92160

DAMPER,SOUND ARRESTER

92160-1567

Unavailable

92160A

DAMPER,SOUND ARRESTER

92160-1568

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

132C

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

132D

BOLT-FLANGED-SMALL,6X50

132J0650

Unavailable

132E

BOLT-FLANGED-SMALL,6X55

132J0655

Unavailable

132F

BOLT-FLANGED-SMALL

132J0665

Unavailable

132G

BOLT-FLANGED-SMALL

132J0680

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

Unavailable
