1975 Yamaha GPX433G Pump Drive Gear Diagram

← All diagrams

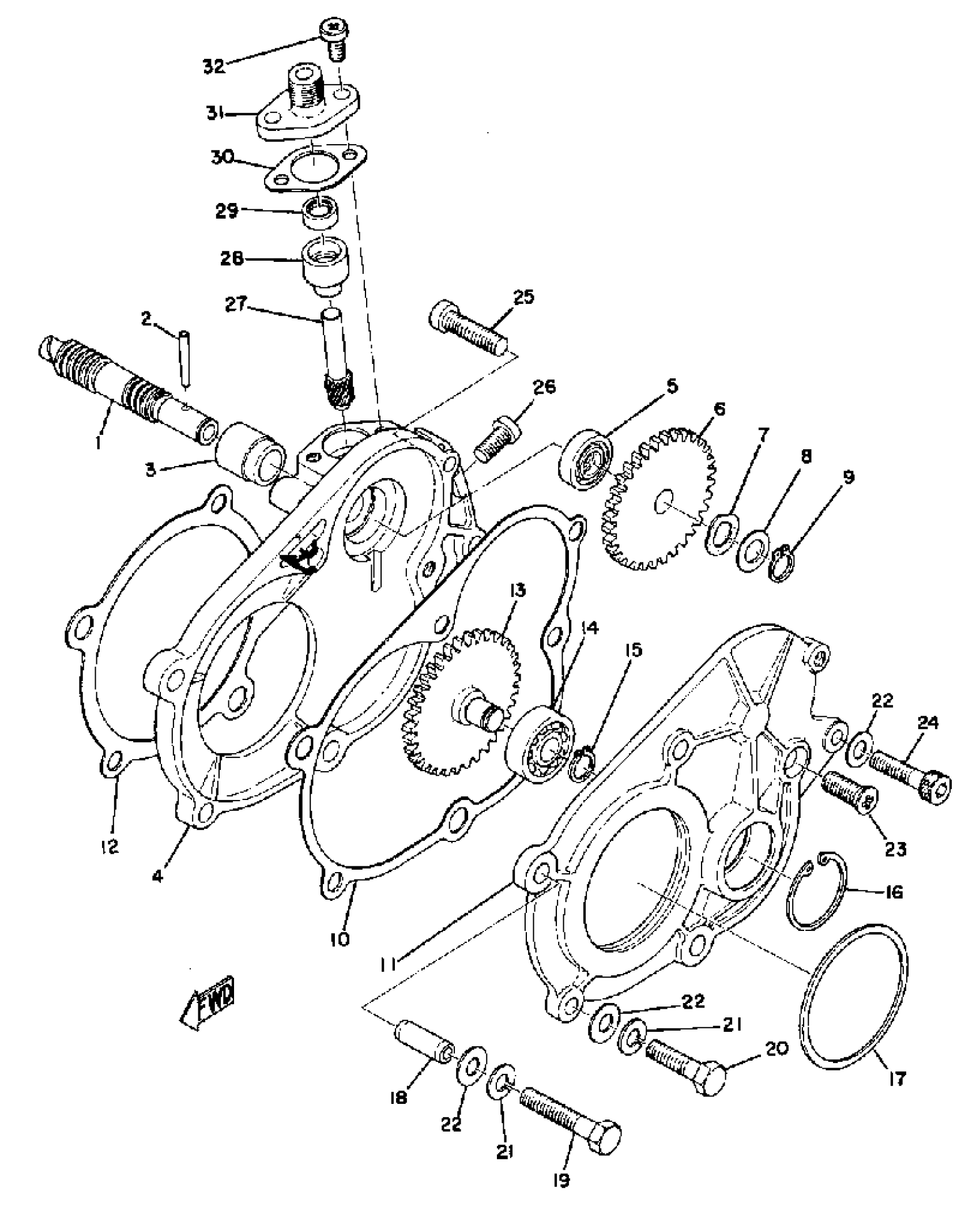

Find the part on the Pump Drive Gear diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha GPX433G Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

821-13175-00-00

1
Out of stock

1

SHAFT, WORM

879-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

838-15416-00-00

1
Out of stock

4

COVER, OIL PUMP

(8E3-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GASKET 2

859-15466-09-00

1
Out of stock

11

COVER, OIL PUMP R

838-15426-00-00

1
Out of stock

12

GSKT,O PMPCVR

838-15456-09-00

1
Out of stock

13

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

14

—

$29.35

In stock

15

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

16

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

17

SEAL, GREASE

(838-13119-00-00)

1
Out of stock

18

PIN, DOWEL

91810-18022-00

1
Out of stock

19

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

SCREW, FLAT

98707-06014-00

—
Out of stock

24

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

25

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

27

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

28

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

29

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

30

GASKET

821-17818-02-00

—

$5.66

In stock

31

CAP, HOUSING

821-17819-00-00

1
Out of stock

32

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock
