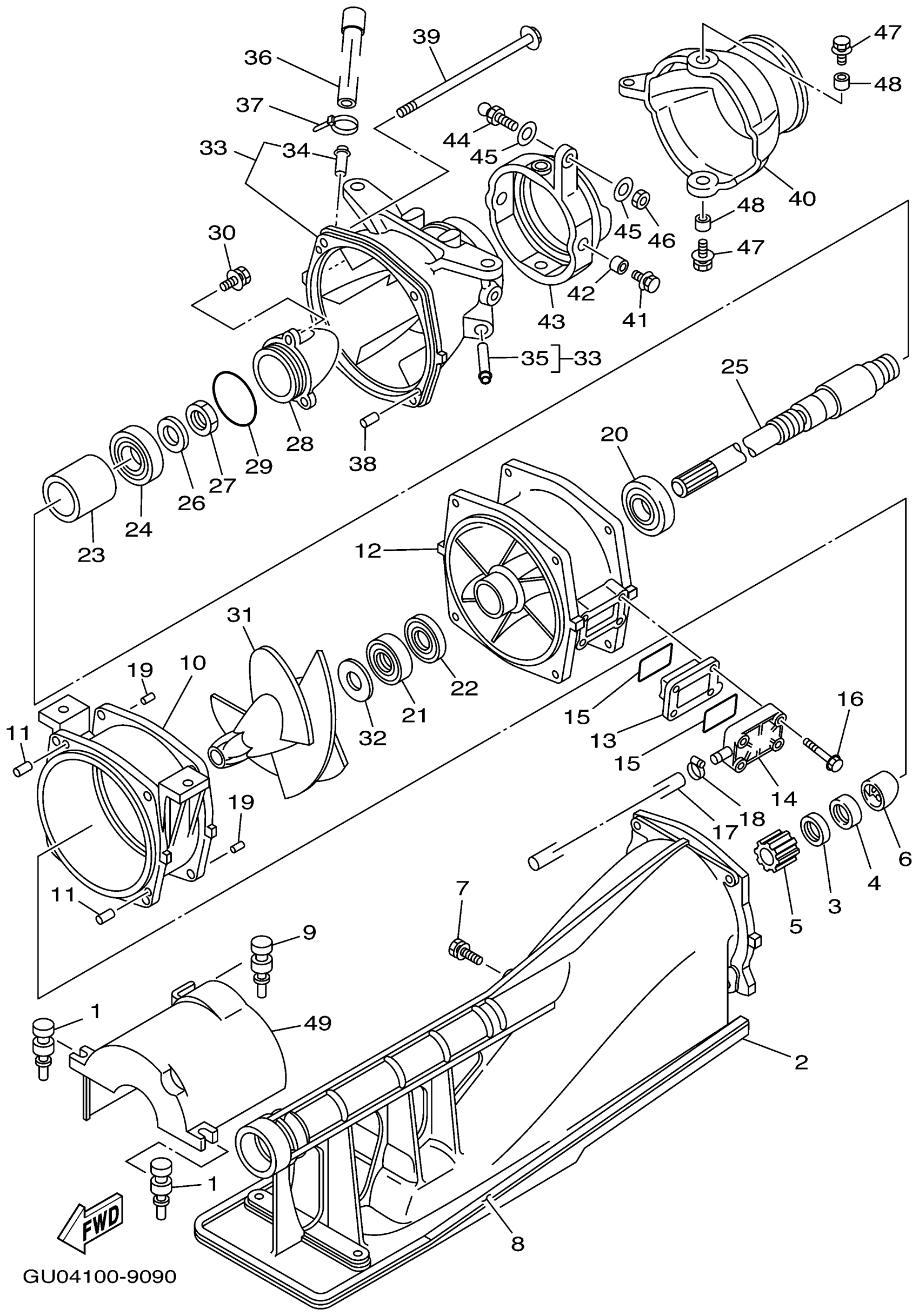

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 JET UNIT 1 Diagram

#

Description
Price

1

GROMMET(6R7)

90480-06M46-00

$9.31

2

DUCT, INTAKE

65V-51311-01-94

Unavailable

3

OIL SEAL

93102-17M49-00

$9.79

4

OIL SEAL

93102-17M50-00

Unavailable

5

BUSHING, DRIVE SHAFT

65V-45318-00-00

$84.83

6

SPACER

65U-R1348-01-00

Unavailable

7

BOLT, WITH WASHER

90119-06892-00

$3.79

8

. FELT, PACKING

6R8-51367-01-00

$10.36

9

GROMMET(6R7)

90480-06M46-00

$9.31

10

HOUSING, IMPELLER

6R8-51312-03-94

$392.41

11

PIN, DOWEL (614)

93606-12019-00

$3.05

12

DUCT, IMPELLER

66E-51315-00-94

Unavailable

13

FILTER

66E-46882-00-00

Unavailable

14

COVER, WATER INLET

66E-45214-00-94

Unavailable

15

O-RING

66E-42414-00-00

Unavailable

16

BOLT, WITH WASHER

90119-069UW-00

Unavailable

17

HOSE

66E-4383A-00-00

Unavailable

18

BAND, HOSE 18

90601-118UF-00

$2.07

19

PIN, DOWEL (614)

93606-12019-00

$3.05

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

OIL SEAL(6R7)

93102-25M34-00

Unavailable

22

OIL SEAL(6R7)

93101-25M50-00

Unavailable

23

SPACER 1

65V-45538-00-00

$29.88

24

BEARING

93306-304XB-00

$17.22

25

SHAFT, DRIVE

66E-45511-10-00

Unavailable

26

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

27

NUT

95317-16700-00

$4.55

28

CAP KIT

65A-R1326-10-KT

Unavailable

29

. O-RING

93210-46M16-00

$7.15

30

BOLT,WITH WASHER

90119-06890-00

$1.07

31

IMPELLER

66E-51321-B0-00

Unavailable

32

SPACER

62T-51348-00-00

$52.82

33

NOZZLE

65V-51318-00-94

Unavailable

34

. NIPPLE

6K8-51129-00-00

$9.62

35

. NIPPLE

62T-51129-00-00

$18.49

36

PIPE 1

61X-51673-00-00

Unavailable

37

BAND, HOSE 18

90601-118UF-00

$2.07

38

PIN, DOWEL (614)

93606-12019-00

$3.05

39

BOLT, WITH WASHER

90119-06829-00

Unavailable

40

NOZZLE, DEFLECTOR

65V-51313-00-00

$56.32

41

BOLT, WITH WASHER

90119-08852-00

$3.79

42

COLLAR

90387-08M08-00

$10.75

43

RING,TRIM

64Y-51190-00-94

$118.17

44

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

45

WASHER,PLATE

90201-068M4-00

Unavailable

46

NUT(650)

95380-06700-00

Unavailable

47

BOLT, WITH WASHER

90119-08852-00

$3.79

48

COLLAR(6R7)

90387-08M06-00

Unavailable

49

COVER

66E-51381-01-00

Unavailable
