1998 Yamaha Wave Runner GP800W (GP800W) Ventilation Diagram

← All diagrams

Find the part on the Ventilation diagram for your 1998 Yamaha Wave Runner GP800W (GP800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

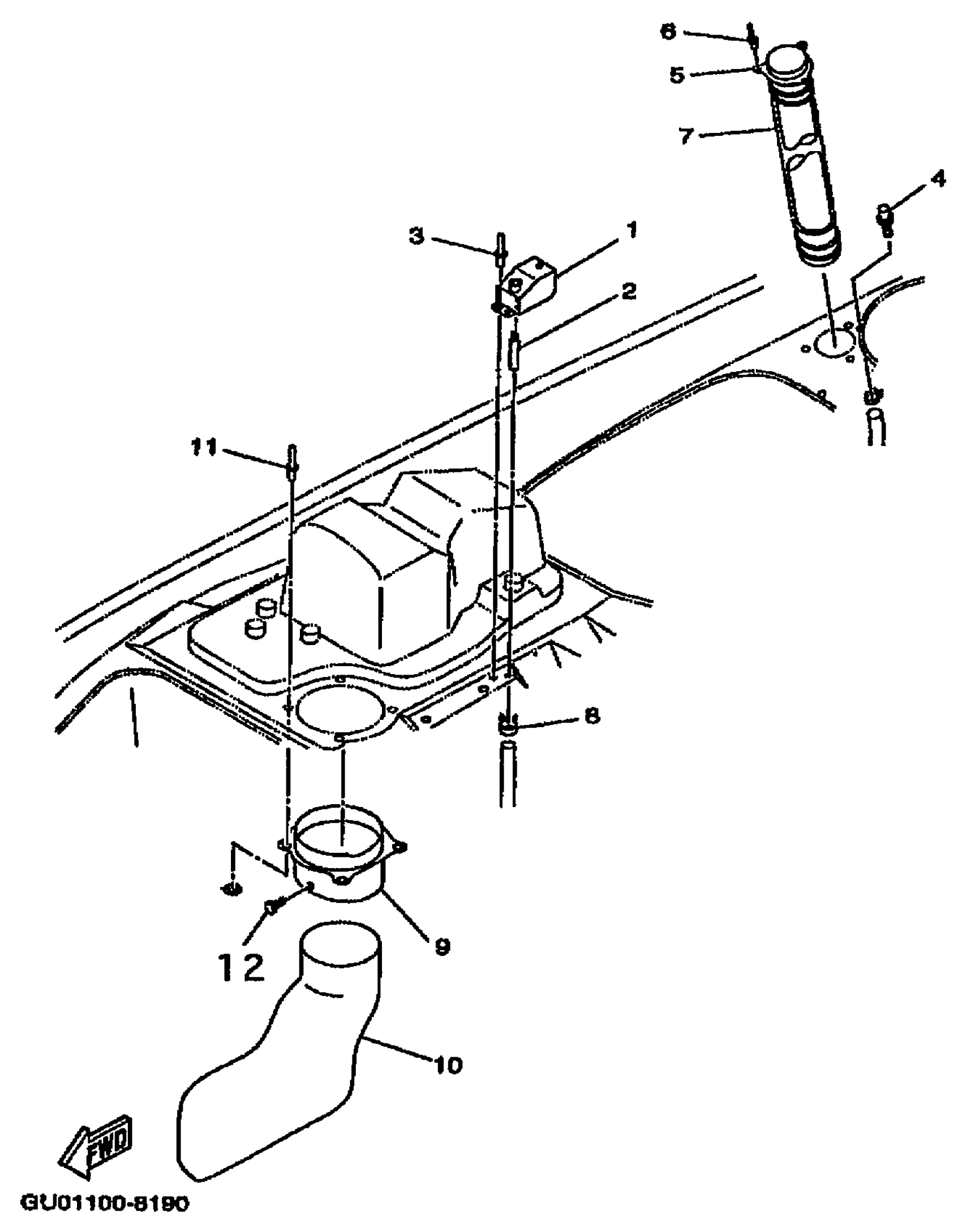

1998 Yamaha Wave Runner GP800W (GP800W) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SOCKET, VENTILATION

GP7-62159-02-00

1

$18.49

In stock

2

PIPE, VENTILATION 1

EW2-62149-00-00

1

$7.38

In stock

3

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

4

NIPPLE

GJ3-6215F-00-00

1

$9.22

In stock

5

VENTILATION, OUTLET

GP7-U2139-00-00

1
Out of stock

6

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

7

HOSE, VENTILATOR 2

GP7-U213G-02-00

1
Out of stock

8

BAND

90601-200U5-00

1
Out of stock

9

BASE, AIR INTAKE

GP7-U2127-00-00

1
Out of stock

10

HOSE, VENTILATOR 1

GP7-U213F-00-00

1
Out of stock

11

RIVET, 1

F3J-U516R-00-00

1

$2.69

In stock

12

RIVET(JR2)

90269-07809-00

1

$1.54

In stock
