1998 Yamaha Wave Runner GP800W (GP800W) Hull Deck Diagram

← All diagrams

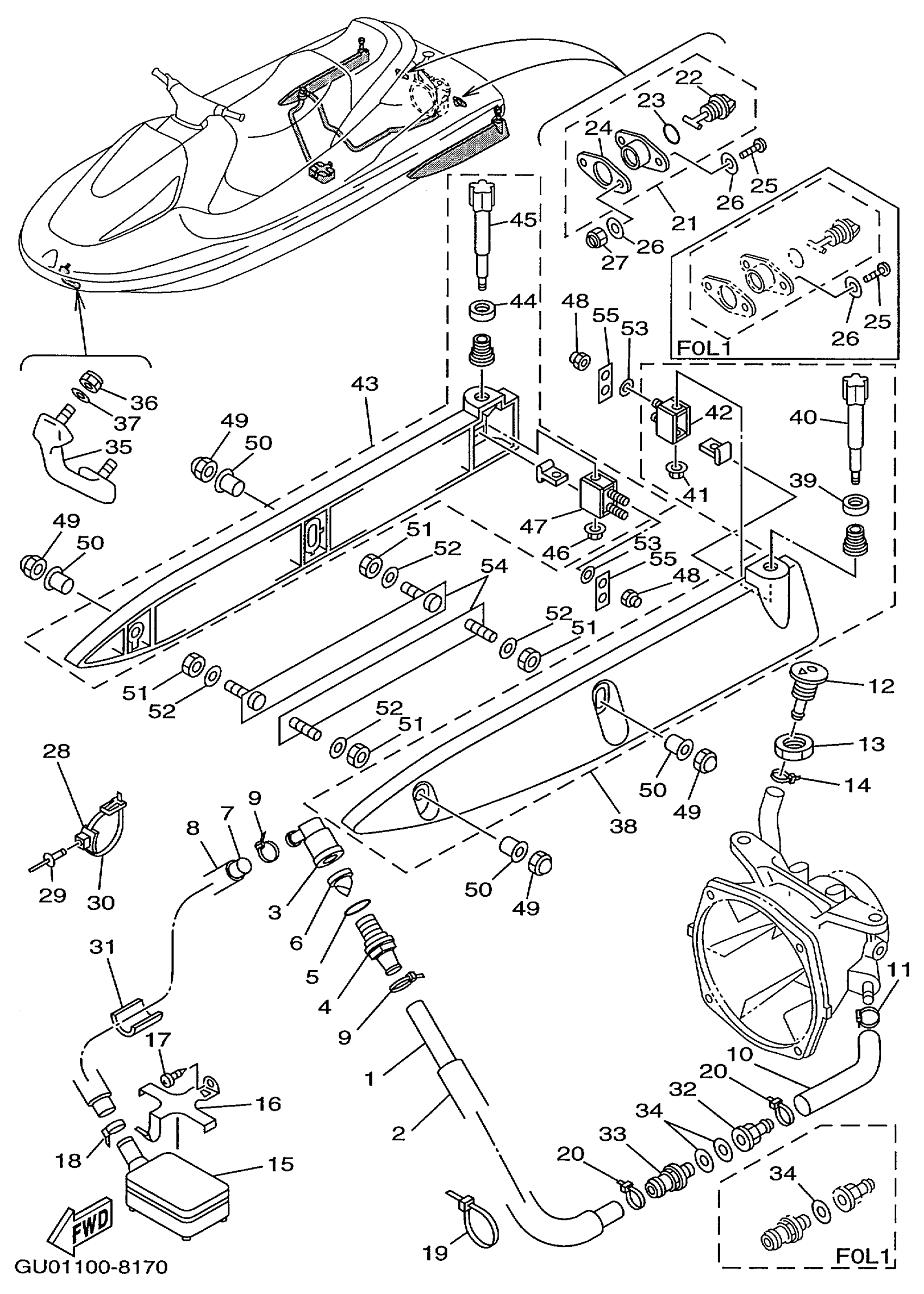

Find the part on the Hull Deck diagram for your 1998 Yamaha Wave Runner GP800W (GP800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP800W (GP800W) Hull Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE

90445-19M04-00

1
Out of stock

2

HOSE

90446-27M73-00

1
Out of stock

3

JOINT, HOSE 2

63M-51165-00-00

1
Out of stock

4

JOINT, HOSE

68N-5112T-00-00

1
Out of stock

5

O-RING

93210-22ME5-00

1
Out of stock

6

VALVE 1

63M-5316M-00-00

1
Out of stock

7

HOSE

90445-19M01-00

1
Out of stock

8

HOSE(63M)

90446-27M55-00

1
Out of stock

9

CLAMP (6E5)

90465-13M11-00

1
Out of stock

10

HOSE (L380)

90445-14M25-00

1
Out of stock

11

CLAMP

90465-10098-00

1
Out of stock

12

SPOUT

FN8-6269B-00-00

1
Out of stock

13

NUT

EU0-61652-00-00

1
Out of stock

14

CLIP

90600-91755-00

1
Out of stock

15

STRAINER, BILGE

GD0-U761D-00-00

1
Out of stock

16

BASE, STRAINER BLIGE

EW2-67618-00-00

1
Out of stock

17

SCREW, TAPPING(61A)

97780-50612-00

1
Out of stock

18

BAND

90601-200U1-00

1
Out of stock

19

BAND (EU0)

90601-20009-00

1
Out of stock

20

BAND

90601-200U1-00

1
Out of stock

21

DRAIN PLUG ASSY

EU0-62280-00-00

1
Out of stock

22

. PLUG, DRAIN

EU0-62282-00-00

1
Out of stock

23

. O-RING

EU0-62283-00-00

1
Out of stock

24

. PACKING DRAIN (EU0)

EU0-62285-01-00

1
Out of stock

25

SCREW, PANHEAD (A93)

98580-05525-00

—
Out of stock

26

. WASHER, PLAIN

92990-05200-00

1
Out of stock

27

NUT, FLANGE

95720-05300-00

1
Out of stock

28

CLAMP COMP (EU0)

90600-91736-00

—
Out of stock

29

RIVET, BLIND

90267-48802-00

1
Out of stock

30

BAND (EU0)

90601-20009-00

1
Out of stock

31

PACKING, HOSE 2

GJ1-U7578-22-00

—
Out of stock

32

CONNECTION, THRU-HULL 1/4

90604-80759-00

1
Out of stock

33

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

—
Out of stock

34

GASKET

90430-13909-00

1
Out of stock

35

BOW EYE 1

GU5-61624-00-00

1
Out of stock

36

. NUT, SELF-LOCKING

95720-08300-00

1
Out of stock

37

WASHER, PLAIN

92990-08200-00

1
Out of stock

38

STABILIZER LH

GP7-U883N-10-00

1
Out of stock

39

. NUT, LOCK 2

GP7-U883X-01-00

1
Out of stock

40

KNOB

GP7-U8354-05-00

1
Out of stock

41

NUT, FLANGE

95720-05300-00

1
Out of stock

42

. BRACKET 2

GP7-U8572-02-00

1
Out of stock

43

STABILIZER RH

GP7-U883P-10-00

1
Out of stock

44

. NUT, LOCK 2

GP7-U883X-01-00

1
Out of stock

45

KNOB

GP7-U8354-05-00

1
Out of stock

46

NUT, FLANGE

95720-05300-00

1
Out of stock

47

. BRACKET 2

GP7-U8572-02-00

1
Out of stock

48

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

49

NUT

90179-08978-00

1
Out of stock

50

COLLAR

90387-08801-00

1
Out of stock

51

NUT

90170-089U1-00

1
Out of stock

52

WASHER, PLAIN

92990-08200-00

1
Out of stock

53

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

54

BRACKET, STABILIZER

GP7-U883T-01-00

1
Out of stock

55

PACKING,STABILIZER

GP7-U883U-01-00

1
Out of stock
