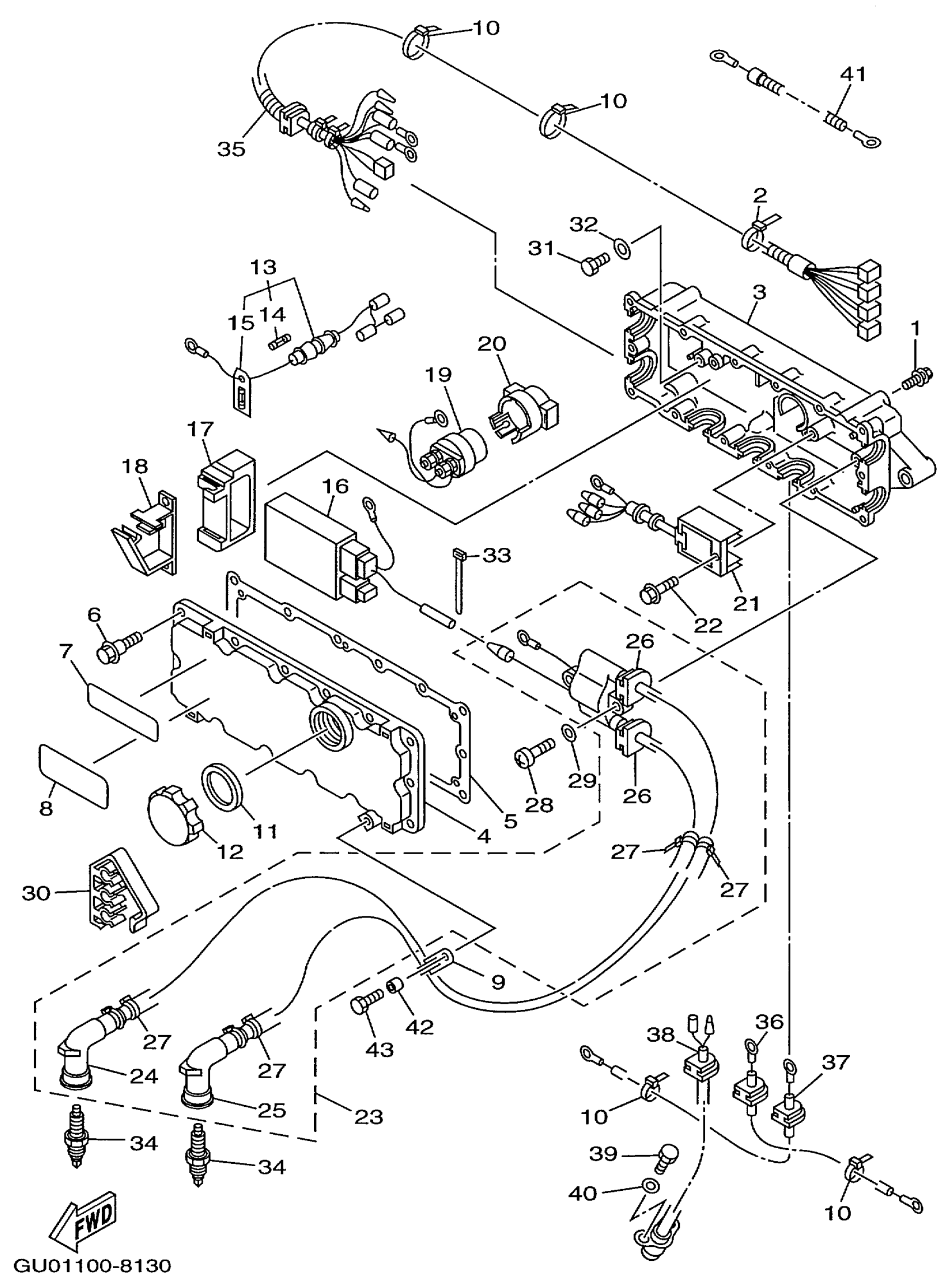

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08038-00

$4.99

2

CLAMP(62T)

90465-12M56-00

$6.64

3

HOUSING

66E-8552A-00-94

$201.50

4

COVER, CASE

66E-8552E-00-00

Unavailable

5

GASKET, TERMINAL

66E-81921-00-00

$56.99

6

BOLT

90109-05MA0-00

$9.64

7

MARK 3

6R7-83623-40-00

$7.27

8

MARK 3

6R7-83623-50-00

Unavailable

9

CLAMP

90465-12M53-00

$5.00

10

CLAMP(6E8)

90465-13M39-00

$4.47

11

GASKET

6M6-81844-00-00

$10.99

12

CAP

6M6-8132W-00-00

$14.38

13

FUSE HOLDER ASSY

66E-82150-00-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

66E-85540-00-00

$293.11

17

BAND

64X-85546-00-00

Unavailable

18

CLAMP

90464-06M29-00

$6.36

19

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

20

HOLDER, RELAY

6M6-81952-01-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

63M-81960-00-00

Unavailable

22

BOLT, HEXAGON W/W DEEP RECESS

97E95-06512-00

Unavailable

23

IGNITION COIL ASSY

64X-85570-01-00

$278.77

24

. CAP, PLUG

62E-82371-11-00

$42.41

25

. CAP, PLUG

62E-82371-11-00

$42.41

26

GROMMET

90480-06M43-00

$6.82

27

CLAMP

90465-10098-00

$1.68

28

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

CLAMP, CORD

65U-81317-10-00

$7.27

31

SCREW, PAN HEAD

98580-06016-00

$2.88

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

CLAMP

90465-10098-00

$1.68

34

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

$3.82

35

EXTENSION, WIRE LEAD

66E-82553-00-00

Unavailable

36

WIRE, LEAD

6M6-82117-21-00

Unavailable

37

WIRE, LEAD

66E-82117-10-00

$107.56

38

THERMOSWITCH ASSEMBLY

6M6-82560-00-00

Unavailable

39

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

40

WASHER, SPRING

92995-06100-00

$2.95

41

WIRE, LEAD

64V-82117-00-00

$68.69

42

COLLAR

90387-06M05-00

$6.45

43

SCREW, TAPPING

97780-60425-00

Unavailable
