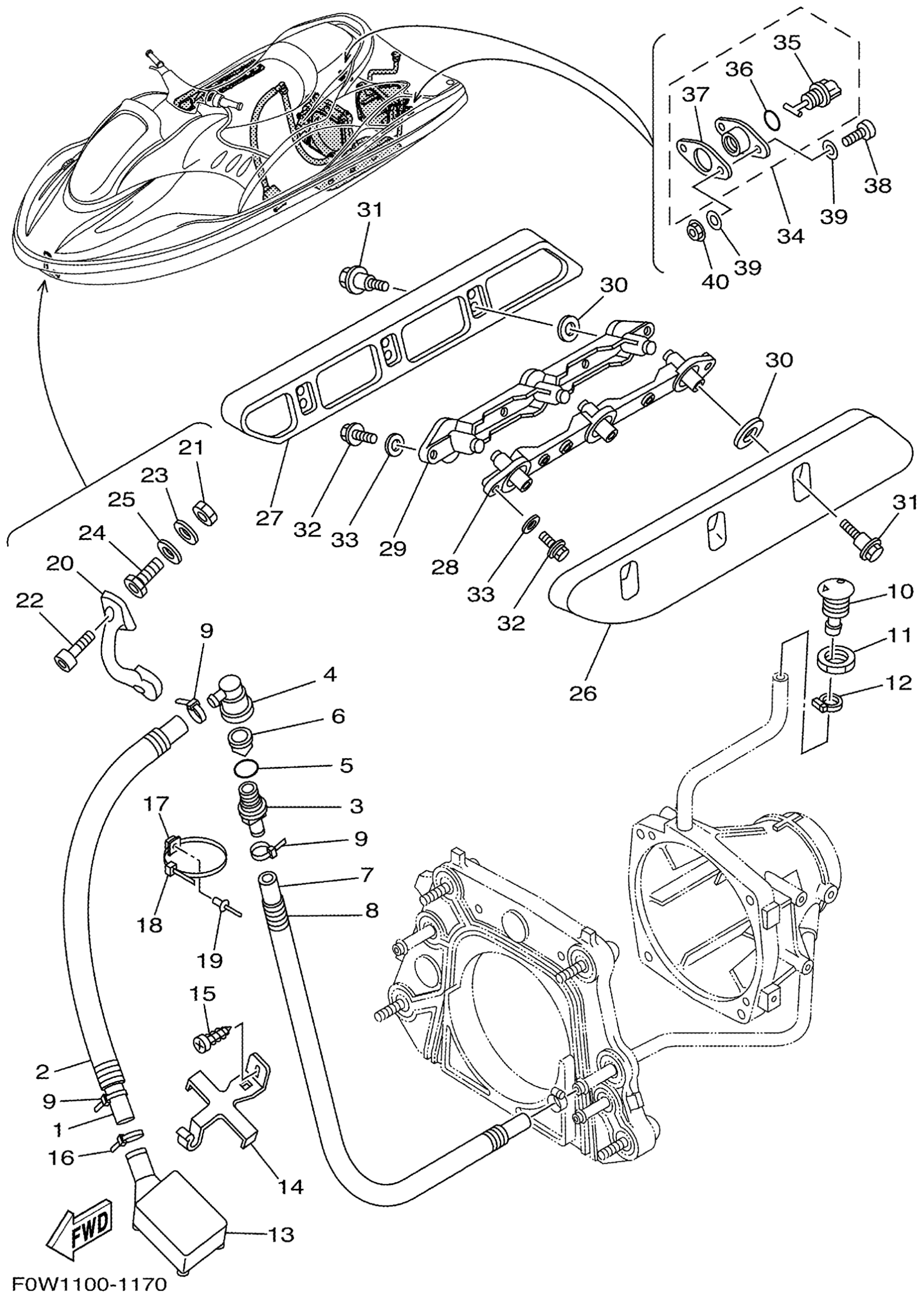

Yamaha GP800AZ (GP800R) F0W1 2001 HULL DECK Diagram

#

Description
Price

1

HOSE (L1000)

90445-198C0-00

Unavailable

2

HOSE (L800)

90446-27M95-00

$11.35

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

JOINT, HOSE 2

63M-51165-00-00

Unavailable

5

O-RING

93210-22ME5-00

$3.93

6

VALVE 1

63M-5316M-00-00

$25.49

7

HOSE (L650)

90445-198B9-00

Unavailable

8

HOSE (L550)

90446-27MF2-00

$15.89

9

BAND

90601-200U1-00

$2.77

10

SPOUT

FN8-6269B-00-00

$22.49

11

NUT

EU0-61652-00-00

$11.48

12

BAND, HOSE 18

90601-118UF-00

$2.07

13

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

14

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

15

SCREW, TAPPING

9778R-50112-00

Unavailable

16

BAND

90601-200U1-00

$2.77

17

CLAMP COMP (EU0)

90600-91736-00

Unavailable

18

BAND

90601-200U2-00

$3.16

19

RIVET, BLIND

90267-489U7-00

Unavailable

20

BOWEYE 1

F0X-61624-00-00

$60.49

21

NUT

F0X-61652-01-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

23

WASHER

F0X-61637-00-00

$1.29

24

NUT.HEX.(COARS)

99780-12600-00

$2.80

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

STABILIZER LH

F0X-U883N-00-00

Unavailable

27

STABILIZER RH

F0X-U883P-00-00

Unavailable

28

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

29

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

30

PACKING,STABILIZER

F0X-6883U-01-00

$6.36

31

BOLT

F0X-62624-00-00

Unavailable

32

BOLT, WITH WASHER

90119-06830-00

Unavailable

33

WASHER, PLATE

90202-05001-00

Unavailable

34

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

35

. PLUG, DRAIN

EU0-62282-00-00

$7.40

36

. O-RING

EU0-62283-00-00

$3.70

37

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

38

SCREW, PAN HEAD

9788R-05025-00

$2.52

39

WASHER

9299R-05200-00

$3.16

40

NUT, FLANGE

9572R-05300-00

$1.43
