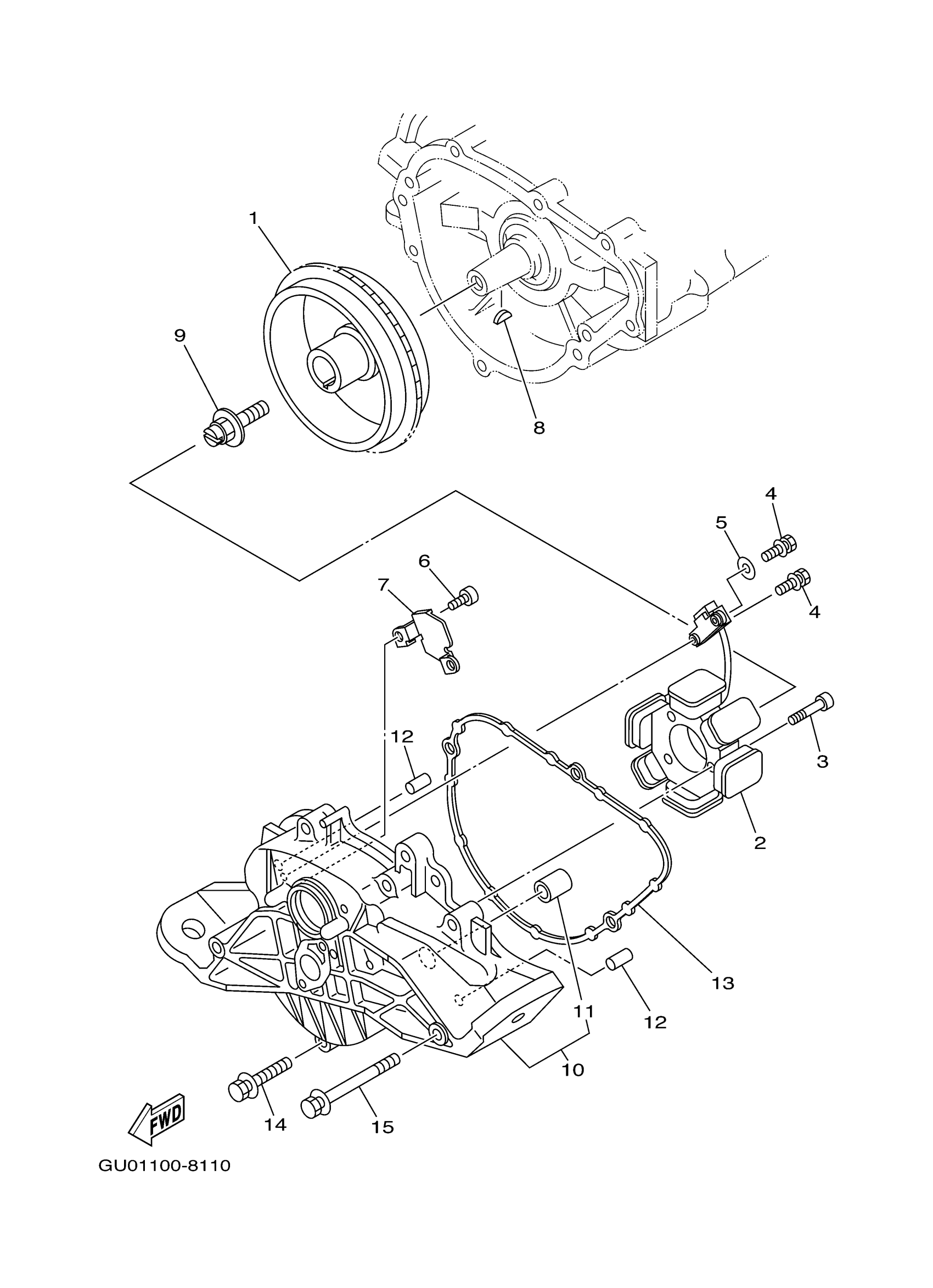

Yamaha GP800AC (GP800R) F0W8 2004 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

66E-85550-00-00

$524.23

2

STATOR ASSY

66E-85510-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

4

BOLT, WITH WASHER

97513-05514-00

$3.64

5

WASHER, PLATE

90201-05M09-00

$2.43

6

BOLT,SOCKET

91318-06014-00

$0.45

7

CLAMP

66E-81328-00-00

$6.36

8

KEY, WOODRUFF

90280-05001-00

$11.00

9

BOLT(63M)

90109-10M72-00

$31.80

10

COVER, FLYWHEEL

66E-81337-11-8S

$340.89

11

. BUSH, SOLID

90380-12M29-00

Unavailable

12

PIN, DOWEL

93608-16M16-00

$2.41

13

. O-RING

66E-81168-10-00

$21.95

14

BOLT, WITH WASHER

90119-08009-00

$2.43

15

BOLT, WITH WASHER

90119-08M55-00

$2.95
