2004 Yamaha GP800R (GP800AC) Control Cable Diagram

← All diagrams

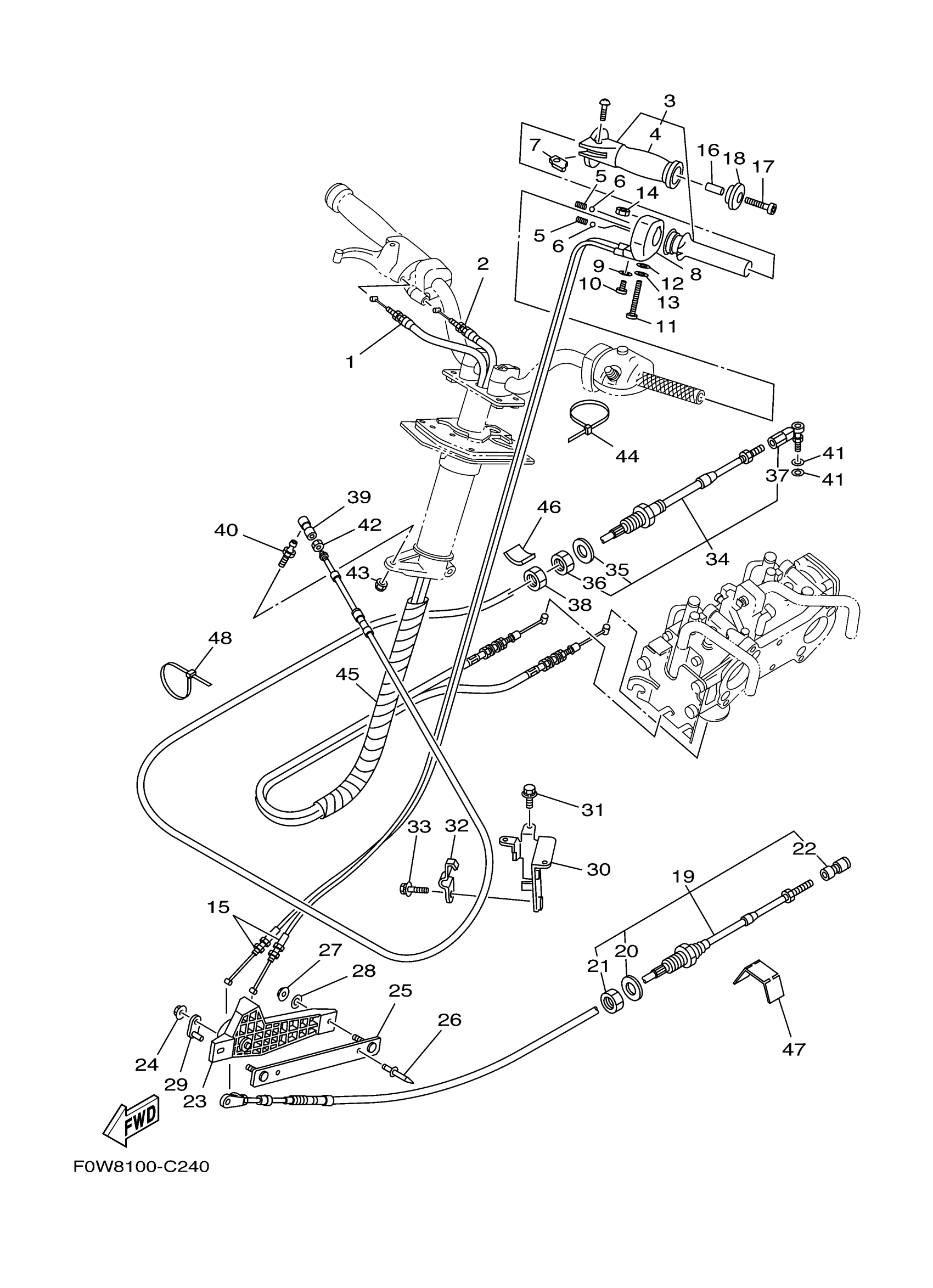

Find the part on the Control Cable diagram for your 2004 Yamaha GP800R (GP800AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha GP800R (GP800AC) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE

68A-67252-00-00

1
Out of stock

2

CABLE, CHOKE

68A-67242-00-00

1
Out of stock

3

GRIP, HANDLE ASSY.

GP7-U157A-00-00

1
Out of stock

4

. GRIP, HANDLE

GP7-U155C-00-00

1
Out of stock

5

SPRING

GP7-U152P-00-00

1
Out of stock

6

BALL

GP7-U152R-00-00

1
Out of stock

7

LEVER ASSY

GP7-U151M-00-00

1
Out of stock

8

HOUSING ASSY

GP7-U152M-00-00

1
Out of stock

9

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

10

SCREW, BINDING (M01)

98980-04010-00

1
Out of stock

11

SCREW PAN HEAD

98580-06565-00

—
Out of stock

12

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

13

WASHER

9299R-06100-00

1
Out of stock

14

NUT, SPECIAL

GH1-U143B-00-00

1
Out of stock

15

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

1
Out of stock

16

COLLAR

90387-05800-00

1
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

1
Out of stock

18

GRIP, END

GP7-U155F-00-00

1
Out of stock

19

CABLE, NOZZLE CONTROL 3

F0W-6153E-01-00

1
Out of stock

20

. PACKING C

F1B-61438-00-00

1
Out of stock

21

NUT

F1B-6151S-01-00

1
Out of stock

22

. BALL JOINT ASSY

F1B-61460-00-00

1
Out of stock

23

REMOCON,NOZZLE 2

F0D-U153J-10-00

1
Out of stock

24

NUT, NYLON

9572R-06300-00

1
Out of stock

25

BASE, REMOCON.

F0X-U4958-00-00

1
Out of stock

26

RIVET, BLIND

90267-489U6-00

1
Out of stock

27

NUT, NYLON

9572R-06300-00

1
Out of stock

28

WASHER

9299R-06200-00

1
Out of stock

29

PIN

F0D-U152C-10-00

1
Out of stock

30

BRACKET, STOPPER CABLE

F0X-61467-00-00

1
Out of stock

31

BOLT, WITH WASHER

90119-06827-00

1
Out of stock

32

STOPPER, CABLE

F0X-61468-00-00

1
Out of stock

33

BOLT, WITH WASHER

90119-06830-00

—
Out of stock

34

CABLE, STEERING

F0W-61481-01-00

1
Out of stock

35

. PACKING C

F1B-61438-00-00

1
Out of stock

36

NUT

F1B-6151S-01-00

1
Out of stock

37

. STUD, JOINT BALL

F1B-61461-02-00

1
Out of stock

38

. NUT, DRAIN 1

EU0-62241-30-00

1
Out of stock

39

SHAFT,JOINT BALL

GK5-U146F-00-00

1
Out of stock

40

SHAFT, JOINT BALL

EU0-U1461-10-00

1
Out of stock

41

WASHER, PLATE

90201-06906-00

1
Out of stock

42

NUT

9538R-06700-00

1
Out of stock

43

NUT, NYLON

9572R-06300-00

1
Out of stock

44

BAND

90601-200U2-00

1
Out of stock

45

HOSE, WITH UNION

90448-25800-00

1
Out of stock

46

PACKING, HOSE 2

GJ1-U7578-01-00

1
Out of stock

47

PACKING, HOSE 2

GJ1-U7578-22-00

—
Out of stock

48

BAND

90601-200U2-00

1
Out of stock
