2002 Yamaha GP800R (GP800AA) Intake Diagram

← All diagrams

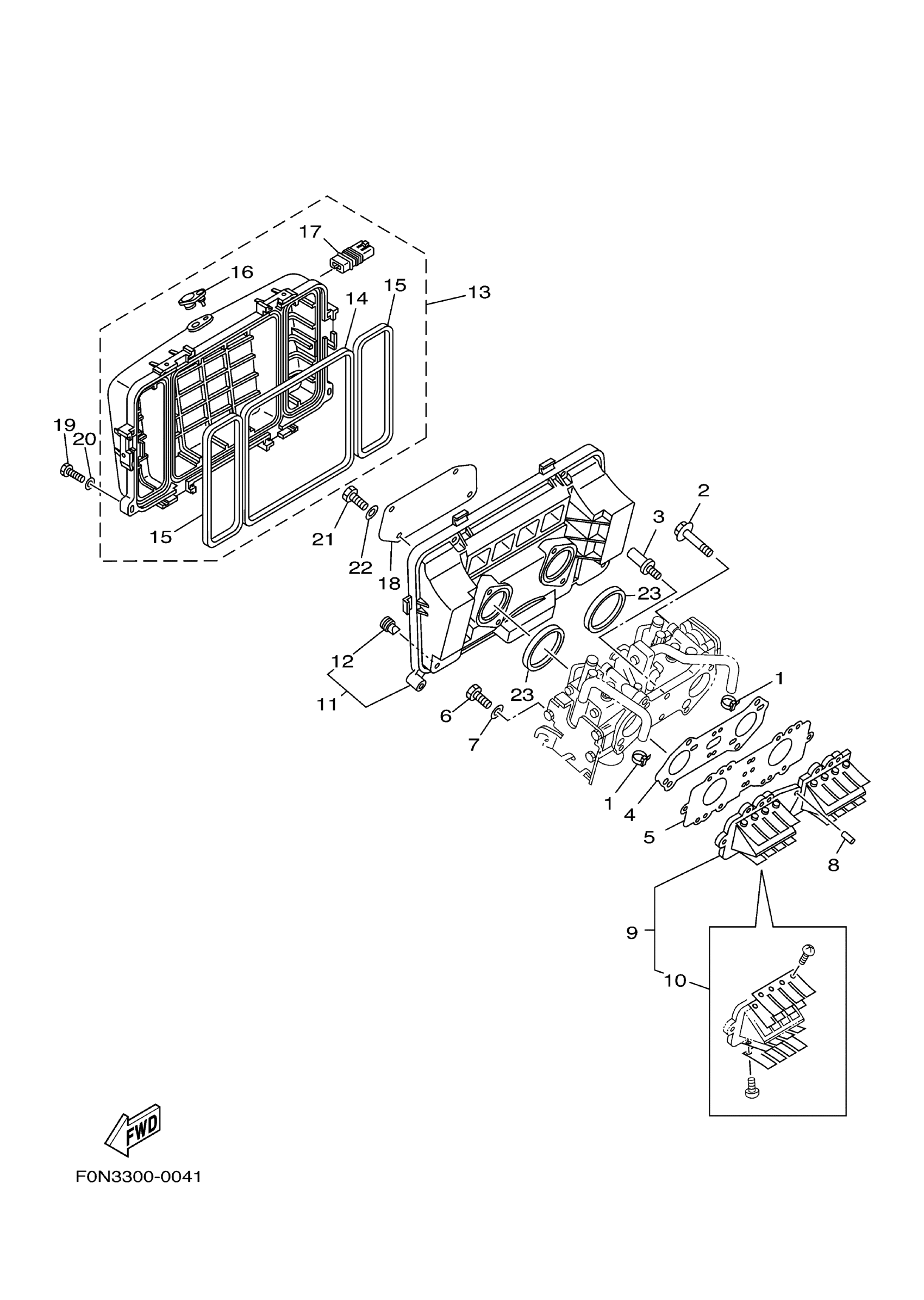

Find the part on the Intake diagram for your 2002 Yamaha GP800R (GP800AA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha GP800R (GP800AA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP

90465-10098-00

1
Out of stock

2

BOLT, WASHER BASED

90105-08M86-00

1
Out of stock

3

BOLT

90109-06M00-00

1
Out of stock

4

. GASKET, MANIFOLD

66E-13556-00-00

1
Out of stock

5

PLATE,REED VALVE

66E-13624-10-94

1
Out of stock

6

BOLT(62Y)

97013-06025-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

8

. PIN, DOWEL

93606-19M23-00

1
Out of stock

9

REED VALVE ASSY

66E-13610-00-00

1
Out of stock

10

. REED SET

66E-W0004-00-00

1
Out of stock

11

COVER, CLEANER CASE 2

66E-1441E-00-00

1
Out of stock

12

. RUBBER, SEAL 2

66E-42717-00-00

1
Out of stock

13

COVER SUB ASSY

66E-14480-19-00

1
Out of stock

14

. SEAL

66E-14457-10-00

1
Out of stock

15

. SEAL

66E-14452-00-00

1
Out of stock

16

GROMMET

6K8-14435-00-00

1
Out of stock

17

. HOLDER

66E-13898-11-00

1
Out of stock

18

ELEMENT, AIR CLEANER

66E-14451-00-00

1
Out of stock

19

BOLT(J52)

97080-06035-00

—
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

21

BOLT, HEXAGON

97013-06045-00

—
Out of stock

22

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

23

. O-RING

66E-13473-00-00

1
Out of stock
