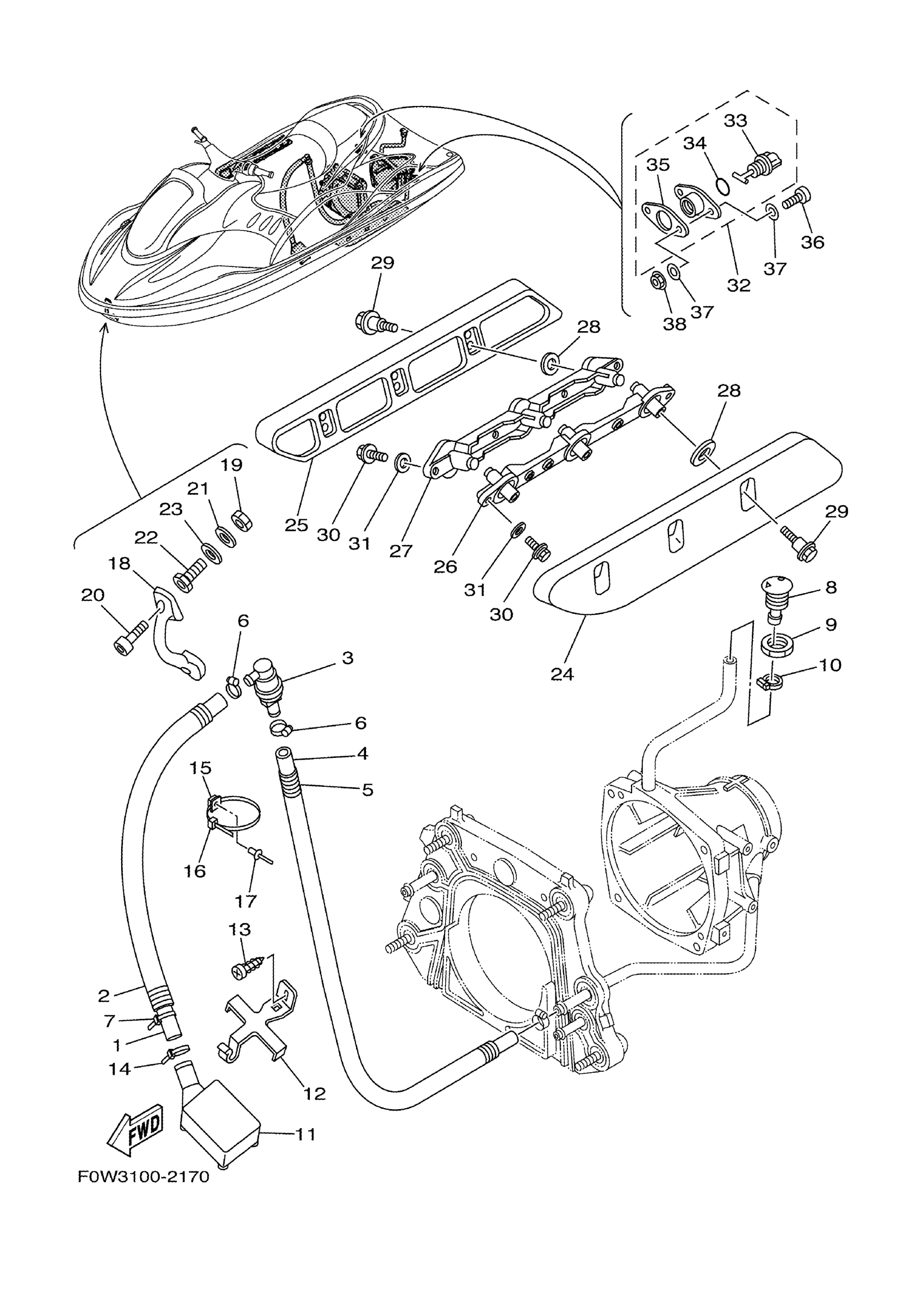

Yamaha GP800AA (GP800R) F0W3 2002 HULL DECK Diagram

#

Description
Price

1

HOSE (L1000)

90445-198C0-00

Unavailable

2

HOSE (L800)

90446-27M95-00

$11.35

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L650)

90445-198B9-00

Unavailable

5

HOSE (L550)

90446-27MF2-00

$15.89

6

BAND, HOSE 18

90601-118UF-00

$2.07

7

BAND

90601-200U1-00

$2.77

8

SPOUT

FN8-6269B-00-00

$22.49

9

NUT

EU0-61652-00-00

$11.48

10

BAND, HOSE 18

90601-118UF-00

$2.07

11

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

12

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

13

SCREW, TAPPING

9778R-50112-00

Unavailable

14

BAND

90601-200U1-00

$2.77

15

CLAMP COMP (EU0)

90600-91736-00

$6.22

16

BAND

90601-200U2-00

$3.16

17

RIVET, BLIND

90267-489U7-00

Unavailable

18

BOWEYE 1

F0X-61624-00-00

$60.49

19

NUT

F0X-61652-01-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

21

WASHER

F0X-61637-00-00

$1.29

22

NUT.HEX.(COARS)

99780-12600-00

$2.80

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

STABILIZER LH

F0X-U883N-00-00

Unavailable

25

STABILIZER RH

F0X-U883P-00-00

Unavailable

26

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

27

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

28

PACKING,STABILIZER

F0X-6883U-01-00

$6.36

29

BOLT

F0X-62624-00-00

Unavailable

30

BOLT, WITH WASHER

90119-06830-00

Unavailable

31

WASHER, PLATE

90202-05001-00

Unavailable

32

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

33

. PLUG, DRAIN

EU0-62282-00-00

$7.40

34

. O-RING

EU0-62283-00-00

$3.70

35

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

36

SCREW, PAN HEAD

9788R-05025-00

$2.52

37

WASHER

9299R-05200-00

$3.16

38

NUT, FLANGE

9572R-05300-00

$1.43
