2002 Yamaha GP800R (GP800AA) Engine Hatch 2 Diagram

← All diagrams

Find the part on the Engine Hatch 2 diagram for your 2002 Yamaha GP800R (GP800AA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

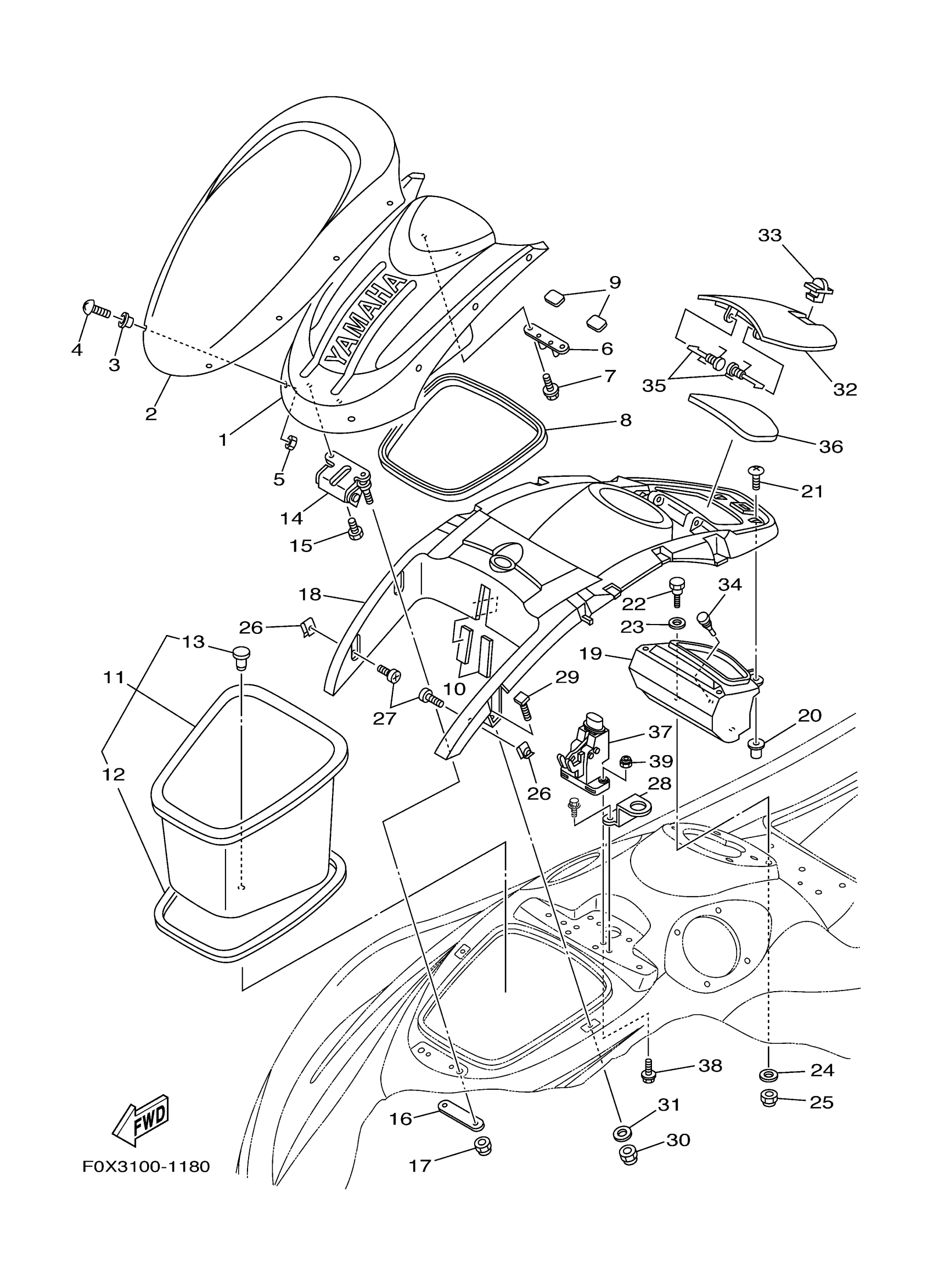

2002 Yamaha GP800R (GP800AA) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM

F0X-U517B-00-00

1
Out of stock

2

VISOR

F0X-U515N-00-00

1

$367.68

In stock

3

BUSH, SOLID (16G)

90381-05041-00

1

$6.92

In stock

4

SCREW

90149-05919-00

1
Out of stock

5

NUT

90179-05800-00

1
Out of stock

6

HOOK, LID LOCK

F0X-6517F-01-00

1

$47.99

In stock

7

BOLT, WITH WASHER

90119-069UJ-00

1

$2.85

In stock

8

PACKING 3

F0X-U266B-00-00

1
Out of stock

9

DAMPER 1

F0X-U515D-00-00

1
Out of stock

10

DAMPER 2

F0X-U515E-02-00

1

$1.15

In stock

11

BOWLOCKER ASSY

F0X-U475A-00-00

1
Out of stock

12

.. PACKING,6

F0X-U266E-01-00

1

$16.14

In stock

13

. PLUG, BLIND

90605-502U1-00

1

$2.46

In stock

14

HINGE, LID

F0X-6517D-00-00

1

$55.54

In stock

15

BOLT

90101-06026-00

1
Out of stock

16

PLATE, HINGE LID

F0X-6518E-00-00

1

$17.99

In stock

17

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

18

COVER, CENTER

F0X-U5554-00-00

1
Out of stock

19

BOX GLOVE

F0X-U516P-00-00

1
Out of stock

20

NUT

90179-05801-00

1
Out of stock

21

SCREW

90149-05919-00

1
Out of stock

22

BOLT

90109-08902-00

1

$4.62

In stock

23

WASHER, PLATE

90202-10922-00

1
Out of stock

24

WASHER

9299R-08200-00

—

$1.95

In stock

25

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

26

NUT, SPRING(GJ3)

90183-06902-00

—

$9.14

In stock

27

BOLT

90111-06041-00

—

$6.28

In stock

28

BRACKET, COVER CENTER 1

F0X-6555D-00-00

1

$23.99

In stock

29

BRACKET, COVER CENTER 2

F0X-6555E-00-00

1

$8.45

In stock

30

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

31

WASHER

9299R-06200-00

1

$0.45

In stock

32

LID, HATCH(DARK BLUE MET.)

F0X-U517H-19-P0

1
Out of stock

33

LOCK

GU2-62875-02-00

1

$32.51

In stock

34

. PLUG

90605-502U2-00

1

$2.46

In stock

35

PIN, HINGE

F0X-6517R-01-00

1

$8.31

In stock

36

PACKING CASE

F0X-U519D-02-00

1
Out of stock

37

LOCK, LID

F0X-6517C-01-00

1

$175.49

In stock

38

BOLT, WITH WASHER

90119-06824-00

1
Out of stock

39

NUT, NYLON

9572R-06300-00

1

$3.15

In stock
