2000 Yamaha GP760 (GP760Y) Steering 1 Diagram

← All diagrams

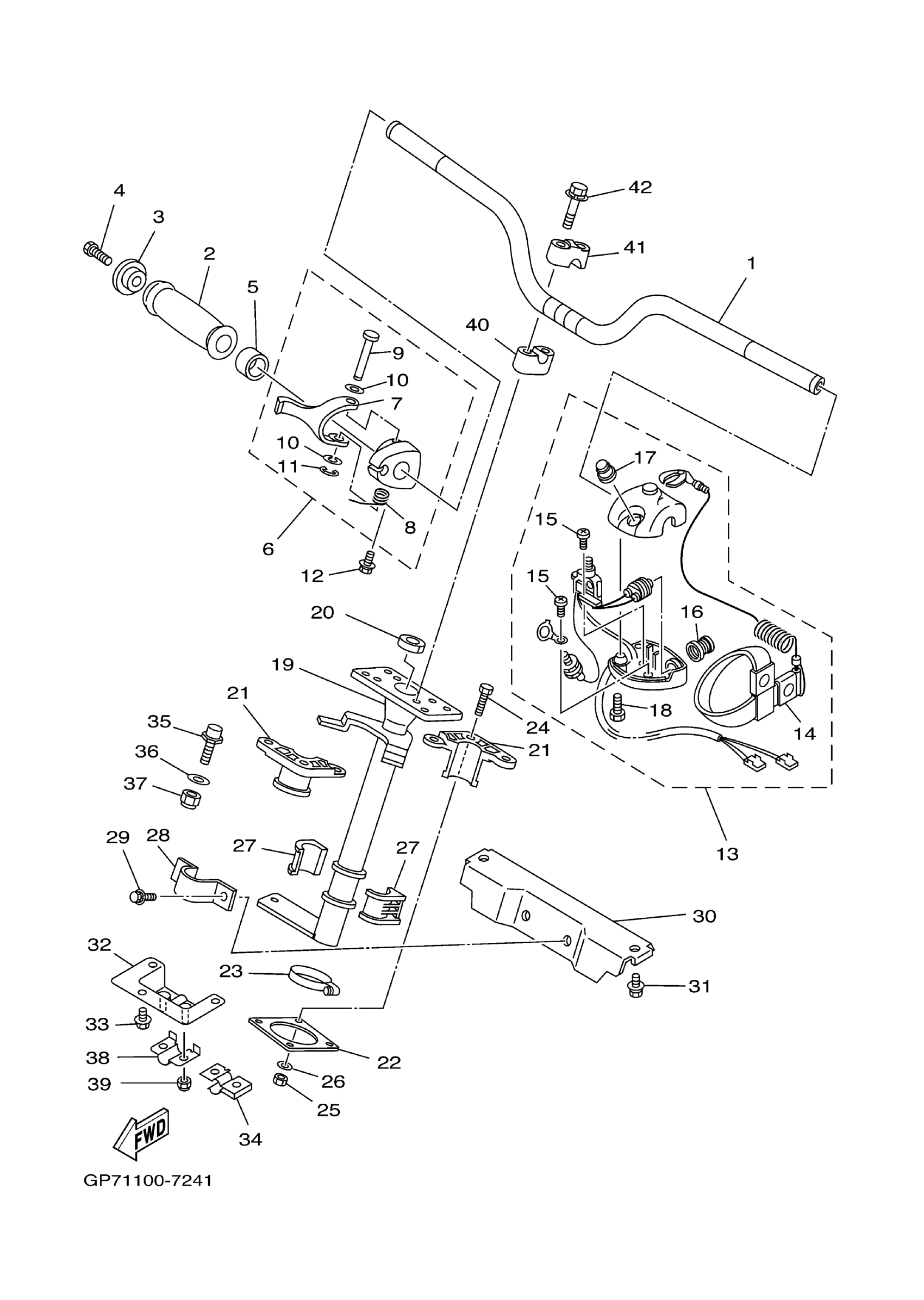

Find the part on the Steering 1 diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha GP760 (GP760Y) Steering 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

GJ1-U1552-03-00

1
Out of stock

2

GRIP, HANDLE

GP7-U155D-01-00

1

$43.38

In stock

3

GRIP, END

GP7-U155F-00-00

1

$3.15

In stock

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

1

$1.91

In stock

5

SPACER(1LX)

90560-22281-00

1

$12.42

In stock

6

THROTTLE LEVER ASSY

GJ1-67250-01-00

1
Out of stock

7

. LEVER, THROTTLE

GJ1-67255-00-00

1

$32.99

In stock

8

. SPRING

EW2-67256-00-00

1

$6.46

In stock

9

. SHAFT

EW2-67257-01-00

1

$13.99

In stock

10

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

11

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

12

SCREW, WITH WASHER

90159-059U2-00

1
Out of stock

13

SWITCH BOX ASSY

GP7-68310-01-00

1

$266.49

In stock

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

1

$25.35

In stock

15

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

16

. STOP BUTTON COMP

FK7-68312-02-00

1

$12.46

In stock

17

. START BUTTON COMP

FK7-68313-02-00

1

$10.68

In stock

18

SCREW, PANHEAD (A93)

98580-05525-00

—

$1.54

In stock

19

COLUMN, STEERING

GP7-61541-00-00

1
Out of stock

20

PACKING, STEERING COLUMN

GH1-U1469-00-00

1
Out of stock

21

BEARING, COLUMN

GH1-6141B-00-00

1

$21.77

In stock

22

SEAL, RUBBER

GH1-U143C-30-00

1
Out of stock

23

BAND, HOSE 42

90601-142U6-00

1
Out of stock

24

BOLT

9708R-06030-00

1
Out of stock

25

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

26

WASHER

9299R-06200-00

1

$0.45

In stock

27

BEARING, STEERING

GH1-6141D-01-00

1

$23.49

In stock

28

JOINT, BEARING

EU0-61588-00-00

1
Out of stock

29

BOLT, WITH WASHER

90119-08800-00

1

$4.62

In stock

30

BRACKET, BEARING

GP7-61433-00-00

1
Out of stock

31

BOLT, WITH WASHER

90119-08800-00

1

$4.62

In stock

32

BRACKET, STOPPER CABLE

GP7-61467-00-00

1
Out of stock

33

BOLT, WITH WASHER

90119-06830-00

—

$1.22

In stock

34

HOLDER, STOPPER

GP7-6146K-01-00

1
Out of stock

35

PIN, STOPPER

FN8-6131B-00-00

1

$77.99

In stock

36

WASHER

9299R-10200-00

1

$1.85

In stock

37

NUT, NYLON

9572R-10300-00

1

$3.77

In stock

38

STOPPER, CABLE

GP7-61468-00-00

1

$5.49

In stock

39

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

40

HOLDER, HANDLE UPPER

EU0-23814-02-00

1

$16.99

In stock

41

HOLDER, HANDLE UPPER

EU0-23814-32-00

1

$20.99

In stock

42

BOLT,WITH WASHER

90119-08831-00

1
Out of stock
