2000 Yamaha GP760 (GP760Y) JET Unit 2 Diagram

← All diagrams

Find the part on the JET Unit 2 diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

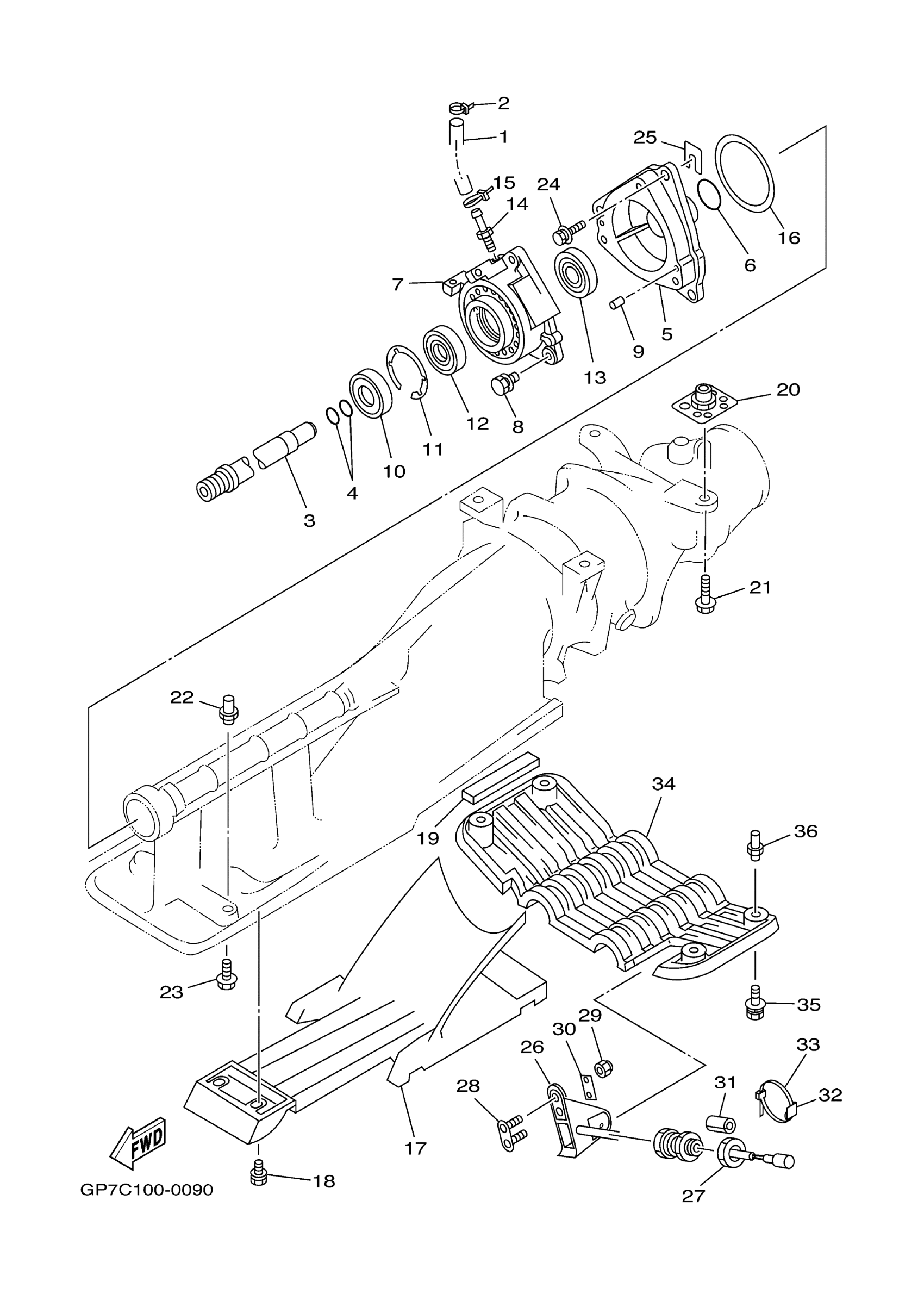

2000 Yamaha GP760 (GP760Y) JET Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L445)

90445-09M21-00

1

$22.46

In stock

2

CLAMP

90465-10098-00

1

$2.24

In stock

3

SHAFT, COUPLER

65V-51323-00-00

1
Out of stock

4

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

5

HOUSING, BEARING

65A-G5331-00-00

1
Out of stock

6

O-RING

93210-35M72-00

1

$11.57

In stock

7

HOUSING, BEARING

65U-45332-02-94

1

$259.98

In stock

8

BOLT, WITH WASHER

90119-08841-00

1

$1.15

In stock

9

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

10

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

11

CIRCLIP

93430-47M04-00

1

$5.53

In stock

12

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

13

OIL SEAL

93101-24001-00

1

$31.99

In stock

14

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

SEAL

6K8-45127-00-00

1

$15.49

In stock

17

SCREEN, INTAKE

63N-51333-02-94

1
Out of stock

18

BOLT, WITH WASHER

90119-069UC-00

1

$3.77

In stock

19

. FELT, PACKING

63N-51368-00-00

1
Out of stock

20

NUT

90179-10800-00

1
Out of stock

21

BOLT, WITH WASHER

90119-109U8-00

1
Out of stock

22

NUT

90179-06800-00

1
Out of stock

23

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

24

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

25

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

25

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

26

SPEED SENSOR

GP7-U8K31-02-00

1
Out of stock

27

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock

28

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

1
Out of stock

29

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

30

PLATE, SPEED SENSOR

GP7-U8K35-00-00

1
Out of stock

31

PACKING, HOSE 2

GJ1-U7578-12-00

—

$1.31

In stock

32

BASE, CLAMP

90600-900U6-00

1
Out of stock

33

CLAMP(JN6)

90464-40825-00

—

$1.77

In stock

34

PLATE 2

GU0-U273B-00-00

1
Out of stock

35

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

36

NUT

90179-08815-00

1
Out of stock
