2000 Yamaha GP760 (GP760Y) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

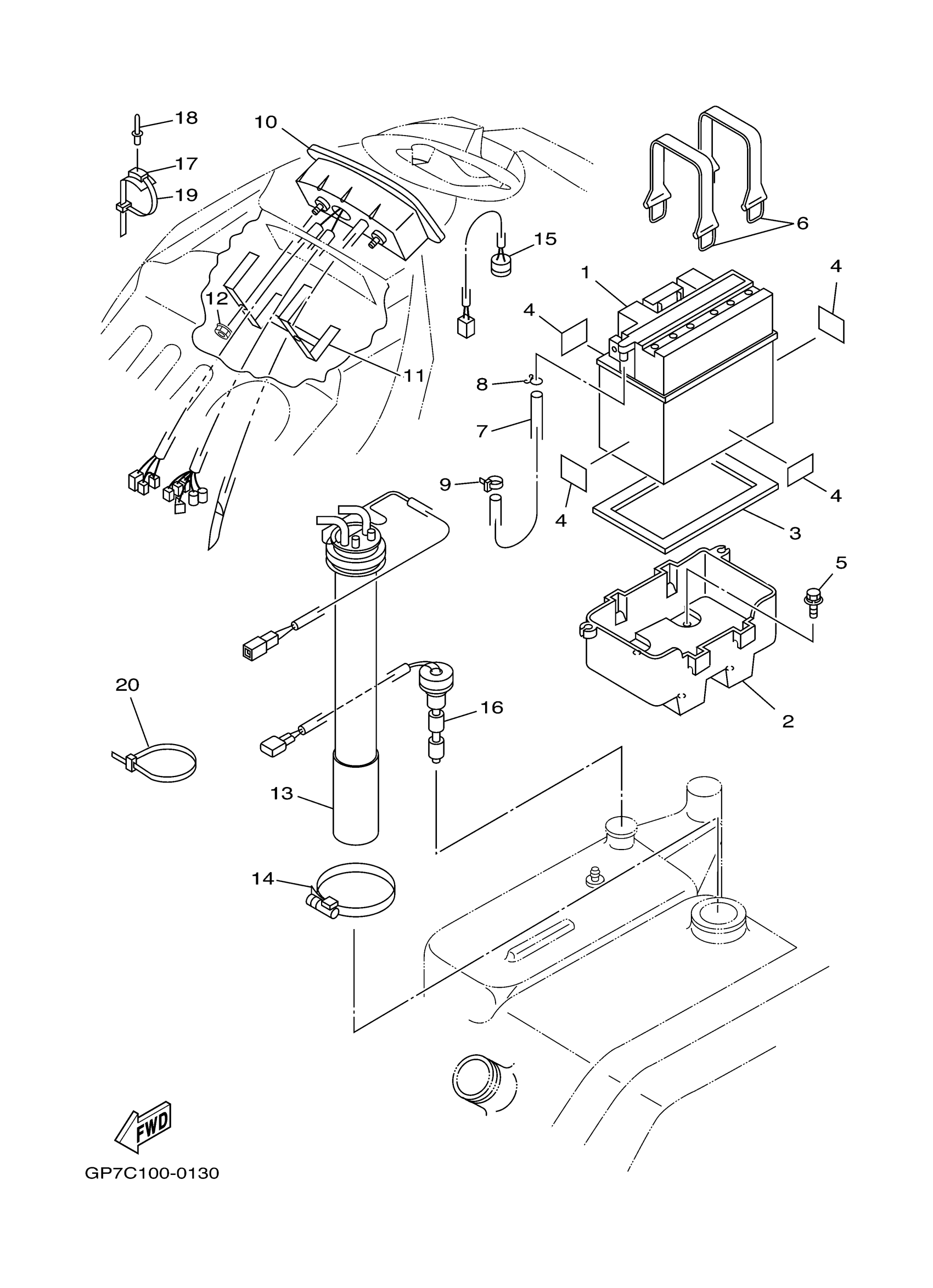

2000 Yamaha GP760 (GP760Y) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

2

CASE, BATTERY

GP7-U8211-00-00

1
Out of stock

3

PAD, BATTERY

F1S-U8221-00-00

1

$3.00

In stock

4

PAD, BATTERY

EU0-U8221-31-00

1

$1.92

In stock

5

BOLT, WITH WASHER

90119-069US-00

1

$2.85

In stock

6

BAND,BATTERY 1

EU0-U821D-00-00

1

$10.71

In stock

7

HOSE AIR VENT

GP7-U785J-00-00

1
Out of stock

8

CLIP

90467-089U1-00

1

$1.46

In stock

9

CLAMP

90465-10098-00

1

$2.24

In stock

10

METER ASSY (MPH)

GP7-6820A-06-00

1
Out of stock

11

BRACKET, METER

GP7-68238-10-00

1
Out of stock

12

NUT, FLANGE

9572R-05300-00

1

$1.62

In stock

13

SENDER, FUEL

F0V-U824B-04-00

1

$608.90

In stock

14

BAND, HOSE 62

90601-162U5-00

1

$6.92

In stock

15

BUZZER

GP7-U8341-00-00

1
Out of stock

16

SENDER, OIL

F0D-U824C-21-00

1
Out of stock

17

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

18

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

19

CLAMP

90464-32801-00

1

$1.38

In stock

20

BAND

90601-200U1-00

1

$2.89

In stock
