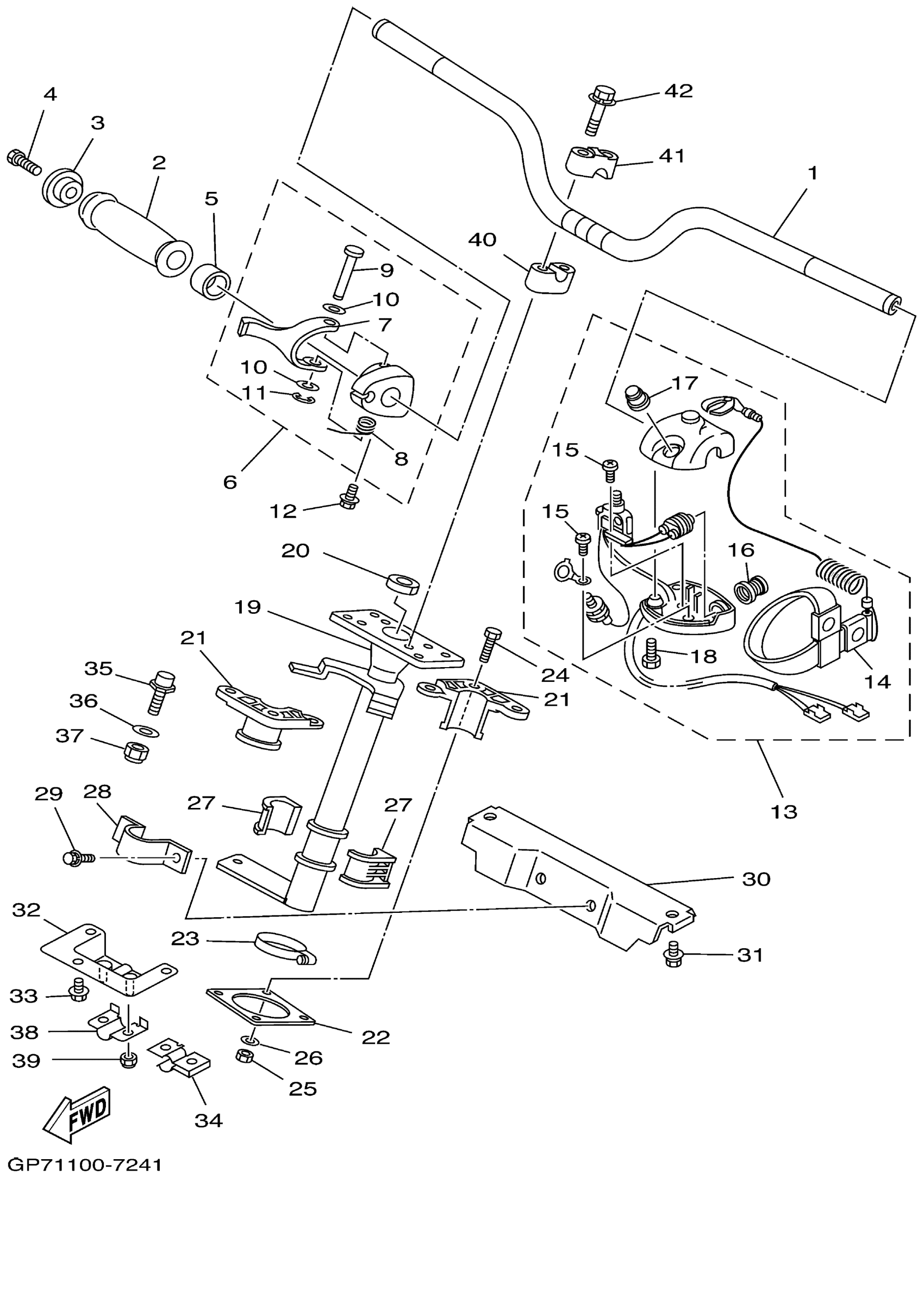

1999 Yamaha Wave Runner GP760 (GP760X) Steering 1 Diagram

← All diagrams

Find the part on the Steering 1 diagram for your 1999 Yamaha Wave Runner GP760 (GP760X), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Yamaha Wave Runner GP760 (GP760X) Steering 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

GJ1-U1552-03-00

1
Out of stock

2

GRIP, HANDLE

GP7-U155D-01-00

1
Out of stock

3

GRIP, END

GP7-U155F-00-00

1
Out of stock

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

1
Out of stock

5

SPACER(1LX)

90560-22281-00

1
Out of stock

6

THROTTLE LEVER ASSY

GJ1-67250-01-00

1
Out of stock

7

. LEVER, THROTTLE

GJ1-67255-00-00

1
Out of stock

8

. SPRING

EW2-67256-00-00

1
Out of stock

9

. SHAFT

EW2-67257-01-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

11

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

12

SCREW, WITH WASHER

90159-059U2-00

1
Out of stock

13

SWITCH BOX ASSY

GP7-68310-01-00

1
Out of stock

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

1
Out of stock

15

SCREW, PAN HEAD (J10)

98580-03008-00

1
Out of stock

16

. STOP BUTTON COMP

FK7-68312-02-00

1
Out of stock

17

. START BUTTON COMP

FK7-68313-02-00

1
Out of stock

18

SCREW, PANHEAD (A93)

98580-05525-00

—
Out of stock

19

COLUMN, STEERING

GP7-61541-00-00

1
Out of stock

20

PACKING, STEERING COLUMN

GH1-U1469-00-00

1
Out of stock

21

BEARING, COLUMN

GH1-6141B-00-00

1
Out of stock

22

SEAL, RUBBER

GH1-U143C-30-00

1
Out of stock

23

BAND, HOSE 42

90601-142U6-00

1
Out of stock

24

BOLT(JF7)

97080-06030-00

—
Out of stock

25

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

27

BEARING, STEERING

GH1-6141D-01-00

1
Out of stock

28

JOINT, BEARING

EU0-61588-00-00

1
Out of stock

29

BOLT, WITH WASHER

90119-08800-00

1
Out of stock

30

BRACKET, BEARING

GP7-61433-00-00

1
Out of stock

31

BOLT, WITH WASHER

90119-08800-00

1
Out of stock

32

BRACKET, STOPPER CABLE

GP7-61467-00-00

1
Out of stock

33

BOLT, WITH WASHER

90119-06830-00

—
Out of stock

34

HOLDER, STOPPER

GP7-6146K-01-00

1
Out of stock

35

PIN, STOPPER

FN8-6131B-00-00

1
Out of stock

36

958-69527-00 WASHER, PLAIN

92990-10200-00

—
Out of stock

37

NUT, NYLON (FN8)

95720-10300-00

—
Out of stock

38

STOPPER, CABLE

GP7-61468-00-00

1
Out of stock

39

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

40

HOLDER, HANDLE UPPER

EU0-23814-02-00

1
Out of stock

41

HOLDER, HANDLE UPPER

EU0-23814-32-00

1
Out of stock

42

BOLT,WITH WASHER

90119-08831-00

1
Out of stock
