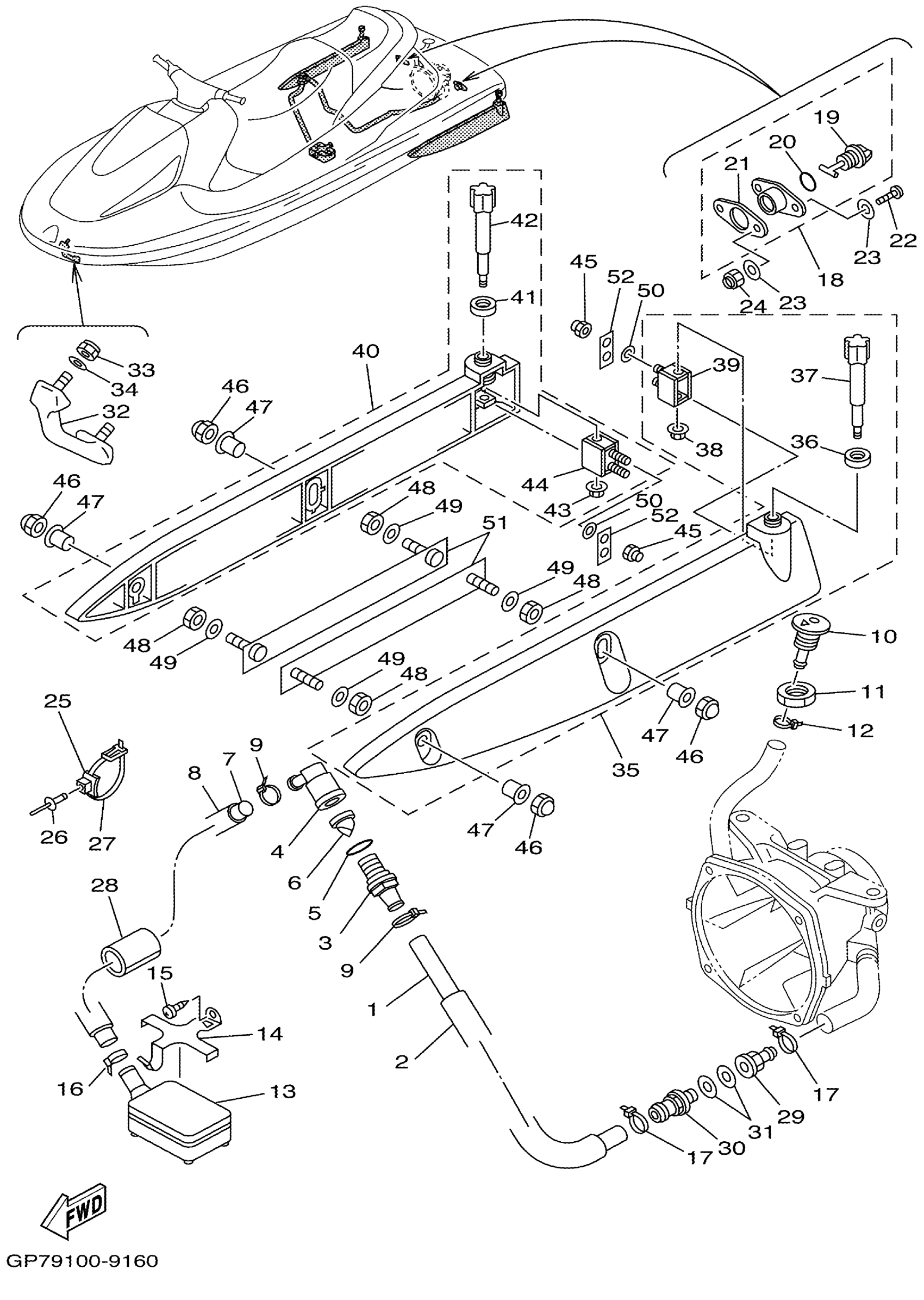

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 HULL DECK Diagram

#

Description
Price

1

HOSE

90445-19M04-00

Unavailable

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

JOINT, HOSE 2

63M-51165-00-00

Unavailable

5

O-RING

93210-22ME5-00

$3.93

6

VALVE 1

63M-5316M-00-00

$25.49

7

HOSE

90445-19M01-00

Unavailable

8

HOSE(63M)

90446-27M55-00

$14.36

9

CLAMP (6E5)

90465-13M11-00

$5.31

10

SPOUT

FN8-6269B-00-00

$22.49

11

NUT

EU0-61652-00-00

$11.48

12

CLIP

90600-91755-00

$5.91

13

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

14

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

15

SCREW, TAPPING(61A)

97780-50612-00

$3.77

16

BAND

90601-200U1-00

$2.77

17

BAND

90601-200U1-00

$2.77

18

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

19

. PLUG, DRAIN

EU0-62282-00-00

$7.40

20

. O-RING

EU0-62283-00-00

$3.70

21

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

22

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

$4.29

24

NUT, FLANGE

95720-05300-00

$1.28

25

CLAMP COMP (EU0)

90600-91736-00

Unavailable

26

RIVET, BLIND

90267-48802-00

$1.98

27

BAND (EU0)

90601-20009-00

$6.36

28

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

29

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

30

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

Unavailable

31

GASKET

90430-13909-00

Unavailable

32

BOW EYE 1

GU5-61624-00-00

Unavailable

33

. NUT, SELF-LOCKING

95720-08300-00

$3.33

34

WASHER, PLAIN

92990-08200-00

$2.36

35

STABILIZER LH

GP7-U883N-10-00

Unavailable

36

. NUT, LOCK 2

GP7-U883X-01-00

Unavailable

37

KNOB

GP7-U8354-05-00

Unavailable

38

NUT, FLANGE

95720-05300-00

$1.28

39

. BRACKET 2

GP7-U8572-02-00

Unavailable

40

STABILIZER RH

GP7-U883P-10-00

Unavailable

41

. NUT, LOCK 2

GP7-U883X-01-00

Unavailable

42

KNOB

GP7-U8354-05-00

Unavailable

43

NUT, FLANGE

95720-05300-00

$1.28

44

. BRACKET 2

GP7-U8572-02-00

Unavailable

45

NUT, SELF-LOCKING

95720-06300-00

$1.82

46

NUT

90179-08978-00

$6.36

47

COLLAR

90387-08801-00

Unavailable

48

NUT

90170-089U1-00

Unavailable

49

WASHER, PLAIN

92990-08200-00

$2.36

50

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

51

BRACKET, STABILIZER

GP7-U883T-01-00

Unavailable

52

PACKING,STABILIZER

GP7-U883U-01-00

Unavailable
