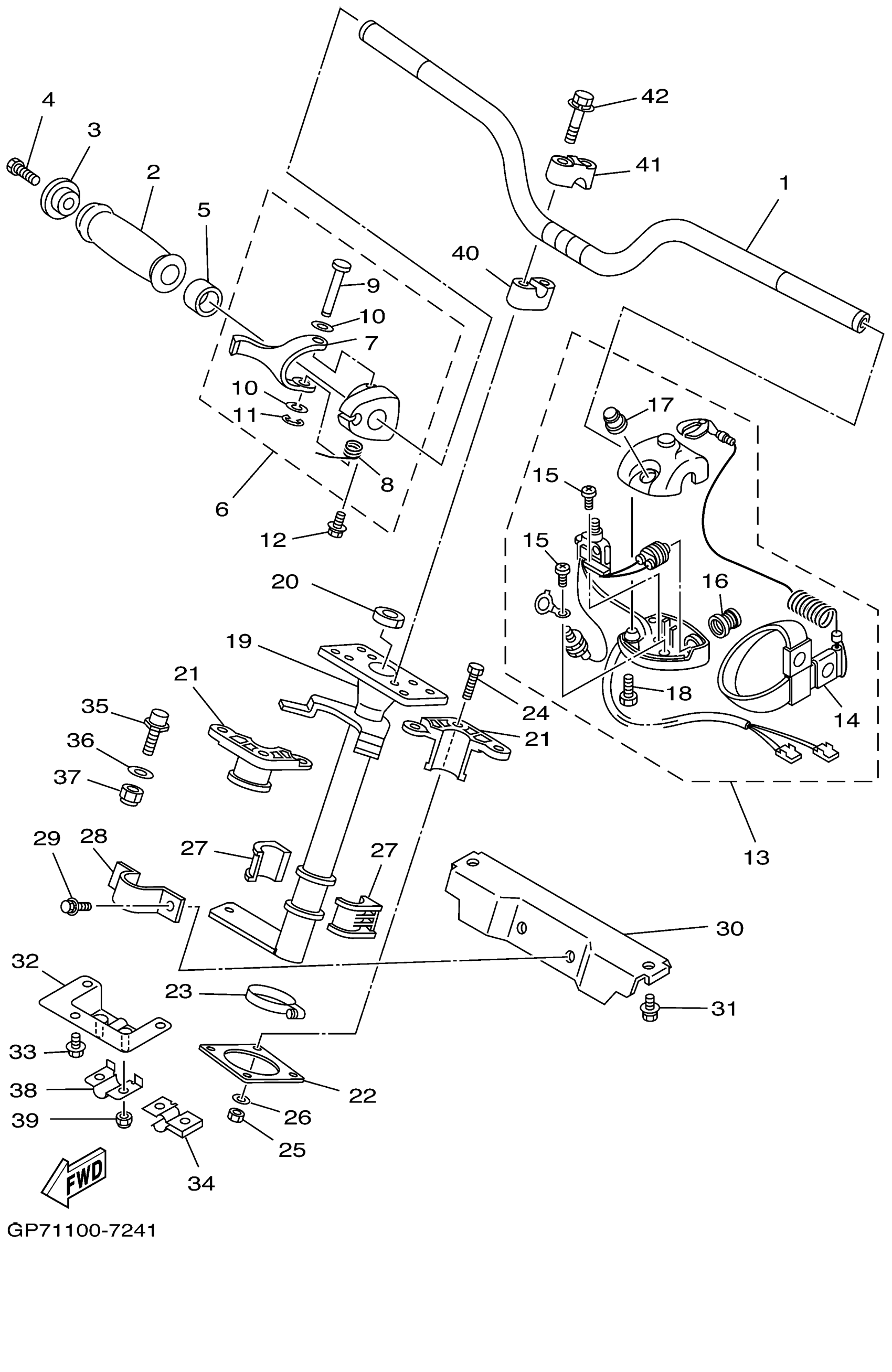

Yamaha GP760W (WAVE RUNNER GP760) GP75 1998 STEERING 1 Diagram

#

Description
Price

1

HANDLE

GJ1-U1552-03-00

Unavailable

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

SPACER(1LX)

90560-22281-00

$12.23

6

THROTTLE LEVER ASSY

GJ1-67250-01-00

Unavailable

7

. LEVER, THROTTLE

GJ1-67255-00-00

$32.99

8

. SPRING

EW2-67256-00-00

$6.36

9

. SHAFT

EW2-67257-01-00

$13.99

10

WASHER, PLAIN (646)

92990-05600-00

Unavailable

11

CIRCLIP (EU0)

99080-04600-00

$1.70

12

SCREW, WITH WASHER

90159-059U2-00

Unavailable

13

SWITCH BOX ASSY

GP7-68310-01-00

$263.62

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

15

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

16

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

17

. START BUTTON COMP

FK7-68313-02-00

$11.31

18

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

19

COLUMN, STEERING

GP7-61541-00-00

Unavailable

20

PACKING, STEERING COLUMN

GH1-U146-00-00

Unavailable

21

BEARING, COLUMN

GH1-6141B-00-00

$20.37

22

SEAL, RUBBER

GH1-U143C-30-00

Unavailable

23

BAND, HOSE 42

90601-142U6-00

Unavailable

24

BOLT(JF7)

97080-06030-00

Unavailable

25

NUT, SELF-LOCKING

95720-06300-00

$1.82

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

BEARING, STEERING

GH1-6141D-01-00

$17.40

28

JOINT, BEARING

EU0-61588-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08800-00

$4.09

30

BRACKET, BEARING

GP7-61433-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08800-00

$4.09

32

BRACKET, STOPPER CABLE

GP7-61467-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06830-00

Unavailable

34

HOLDER, STOPPER

GP7-6146K-01-00

Unavailable

35

PIN, STOPPER

FN8-6131B-00-00

$77.26

36

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

37

NUT, NYLON (FN8)

95720-10300-00

Unavailable

38

STOPPER, CABLE

GP7-61468-00-00

$5.49

39

NUT, SELF-LOCKING

95720-06300-00

$1.82

40

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

41

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

42

BOLT,WITH WASHER

90119-08831-00

Unavailable
