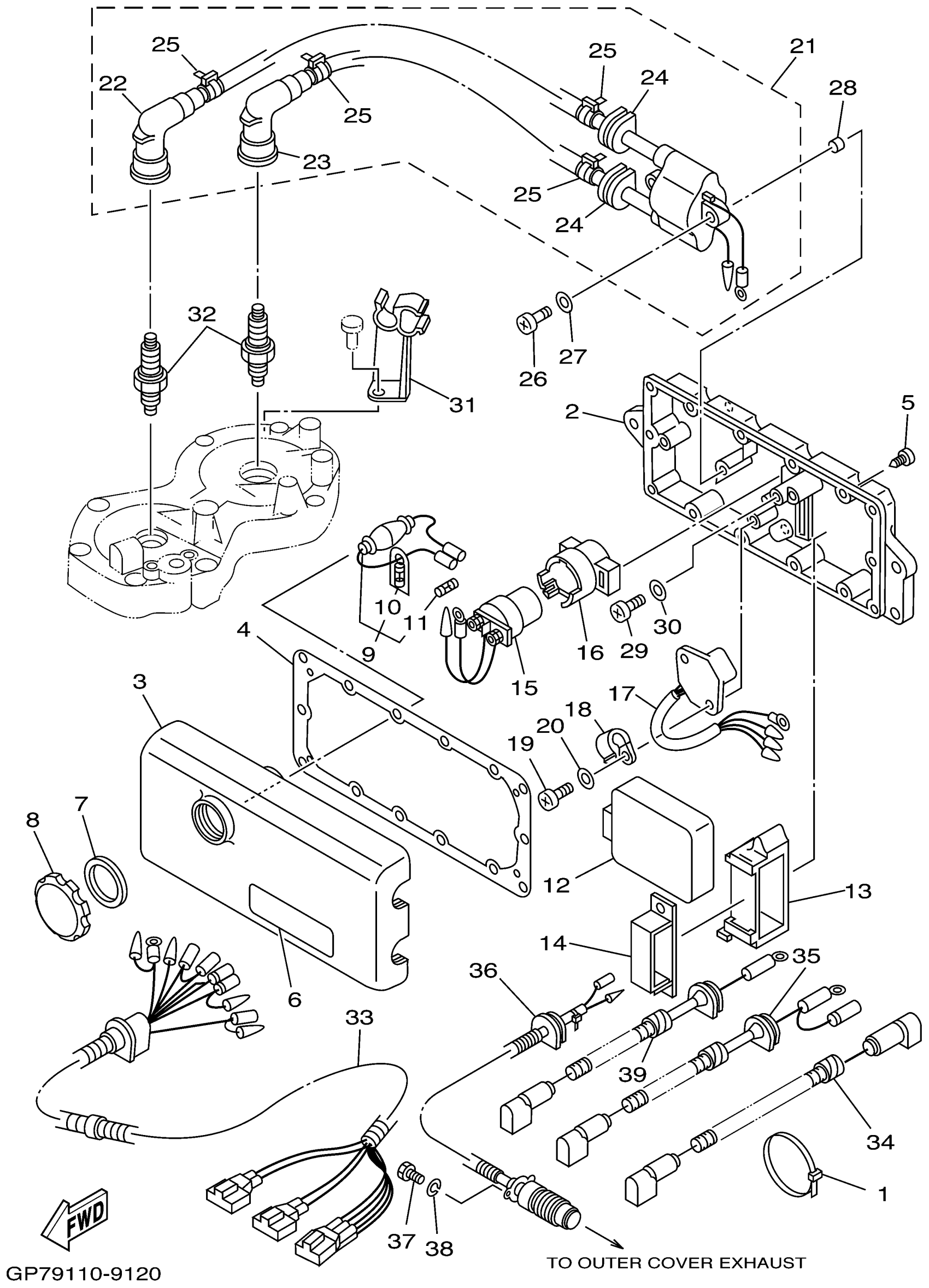

Yamaha GP760W (WAVE RUNNER GP760) GP75 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

NYLON CLIP 1(GD0)

90601-20016-00

$9.03

2

HOUSING

64X-8552A-01-8P

Unavailable

3

COVER, CASE

6M6-8552E-01-00

$78.77

4

GASKET, TERMINAL

6M6-81921-00-00

$19.63

5

SCREW, TAPPING(65J)

97780-60625-00

$2.64

6

MARK 3

6R7-83623-40-00

$7.27

7

GASKET

6M6-81844-00-00

$10.99

8

CAP

6M6-8132W-00-00

$14.38

9

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

10

FUSE (10A)

1E6-82151-00-00

$5.80

11

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

12

C.D.I. UNIT ASSY

64X-85540-01-00

$406.05

13

BAND

64X-85546-00-00

Unavailable

14

CLAMP

90464-06M29-00

$6.36

15

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

16

HOLDER, RELAY

6M681952-01-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

18

CLAMP

90465-08028-00

$4.31

19

SCREW, PAN HEAD

98580-06016-00

$2.88

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

IGNITION COIL ASSY

64X-85570-01-00

$278.77

22

. CAP, PLUG

62E-82371-11-00

$42.41

23

. CAP, PLUG

62E-82371-11-00

$42.41

24

GROMMET

90480-06M43-00

$6.82

25

CLAMP

90465-10098-00

$1.68

26

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

COLLAR(6R8)

90387-06M30-00

Unavailable

29

SCREW, PAN HEAD

98580-06016-00

$2.88

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

CLAMP, CORD

62T-82361-00-00

$10.99

32

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

33

EXTENSION, WIRE LEAD

65V-82553-00-00

Unavailable

34

WIRE,LEAD

62T-82117-01-00

Unavailable

35

WIRE, LEAD

63N-82117-11-00

$75.74

36

THERMO SWITCH ASSEMBLY

64X-82560-00-00

Unavailable

37

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

38

WASHER, SPRING

92995-06100-00

$2.95

39

WIRE, LEAD

6M6-82117-21-00

Unavailable
