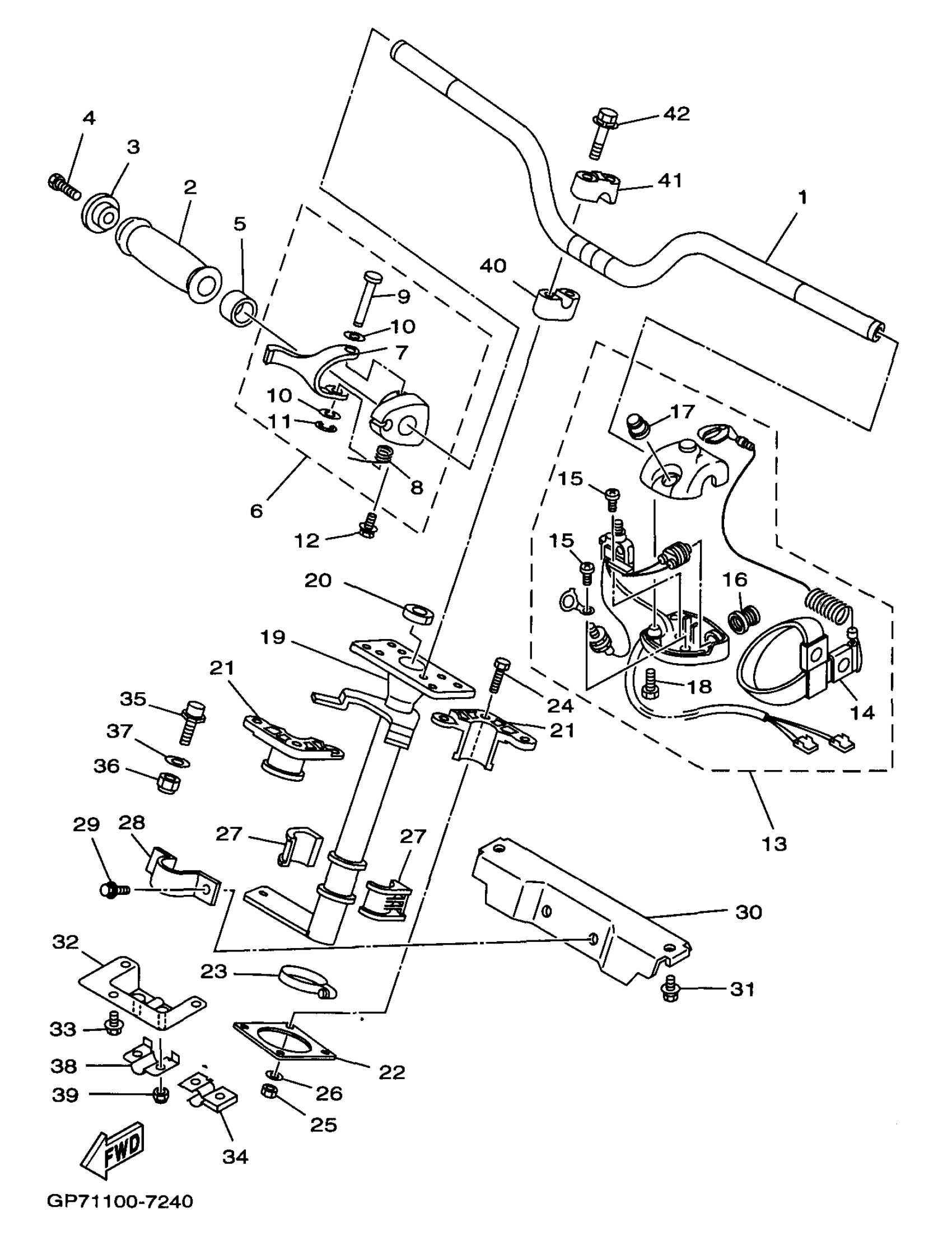

1997 Yamaha Wave Runner GP760 (GP760V) Steering Diagram
Find the part on the Steering diagram for your 1997 Yamaha Wave Runner GP760 (GP760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HANDLE
GJ1-U1552-03-00
6
THROTTLE LEVER ASSY
GJ1-67250-01-00
10
WASHER, PLAIN (646)
92990-05600-00
12
SCREW, WITH WASHER
90159-059U2-00
19
COLUMN, STEERING
GP7-61541-00-00
20
PACKING, STEERING COLUMN
GH1-U1469-00-00
22
SEAL, RUBBER
GH1-U143C-30-00
23
BAND, HOSE 42
90601-142U6-00
28
JOINT, BEARING
EU0-61588-00-00
30
BRACKET, BEARING
GP7-61433-00-00
32
BRACKET, STOPPER CABLE
GP7-61467-00-00
34
HOLDER, STOPPER
GP7-6146K-01-00
42
BOLT,WITH WASHER
90119-08831-00
